GROHE StarLight
Product Catalog
Thermostat for concealed installation with one valve
Model: 19380AL2
Allure New

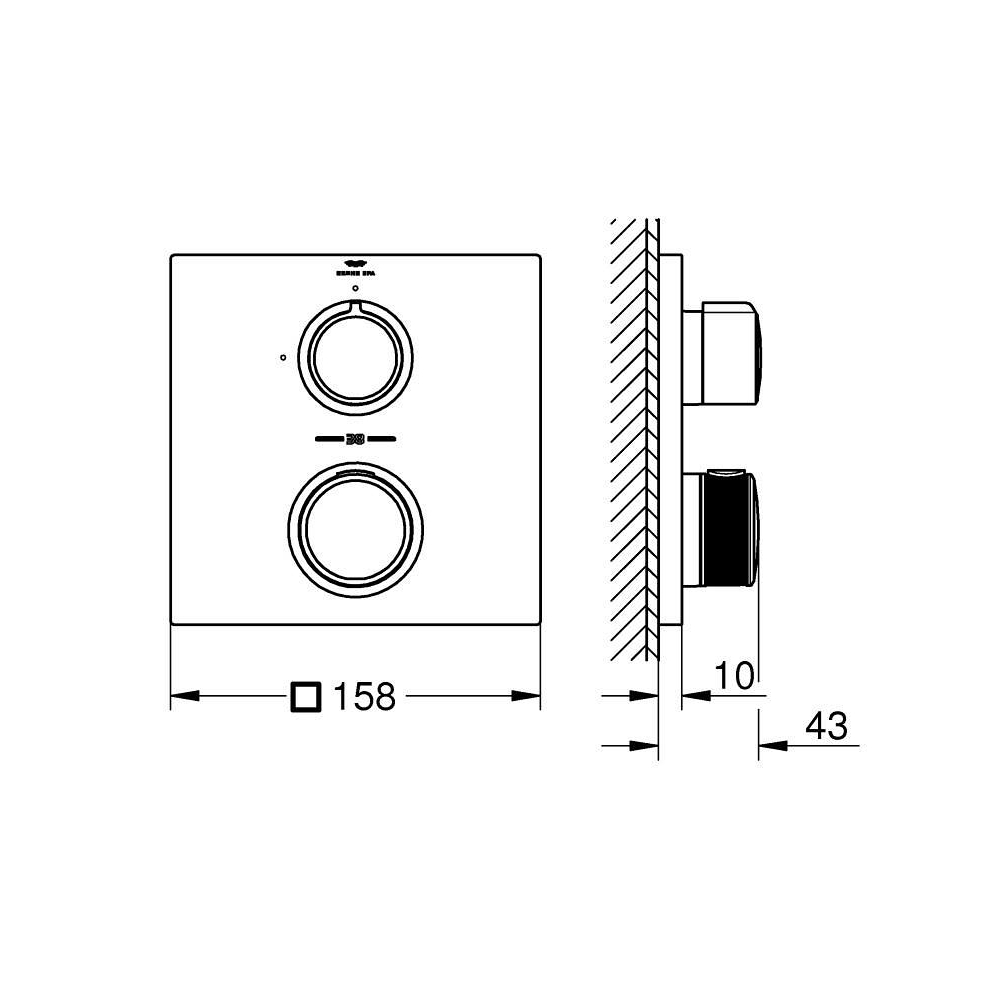

Dimensional Drawing
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
GROHE TurboStat compact cartridge with wax thermoelement
GROHE Long-Life finish
wall escutcheon with GROHE FastFixation
(covered escutcheon- and shaft sealing, covered fixing)
metal escutcheon, retroactively 6° adjustable
GROHE SafeStop safety button at 38°C
(calibration required)
GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
built-in non return valve
and dirt strainers
ceramic stop valve, 120°
metal handles
flow performance:
outlet B = 27 l/min
outlet C = 30 l/min
without roughing-in set 35 600/35 604 (please order separately)
Style
Cosmopolitan
Installation Type
Wall mounted concealed
Height (mm)
245.0
Length (mm)
200.0
Width (mm)
180.0
Net Weight (kg)
1.875
Gross Weight (kg)
1.875
Colors & Finishes
Brushed hard graphite
Collection
Allure New
Segment
G5
Features & Technologies
GROHE TurboStat
SafeStop
GROHE FastFixation (covered)
