GROHE StarLight
Product Catalog

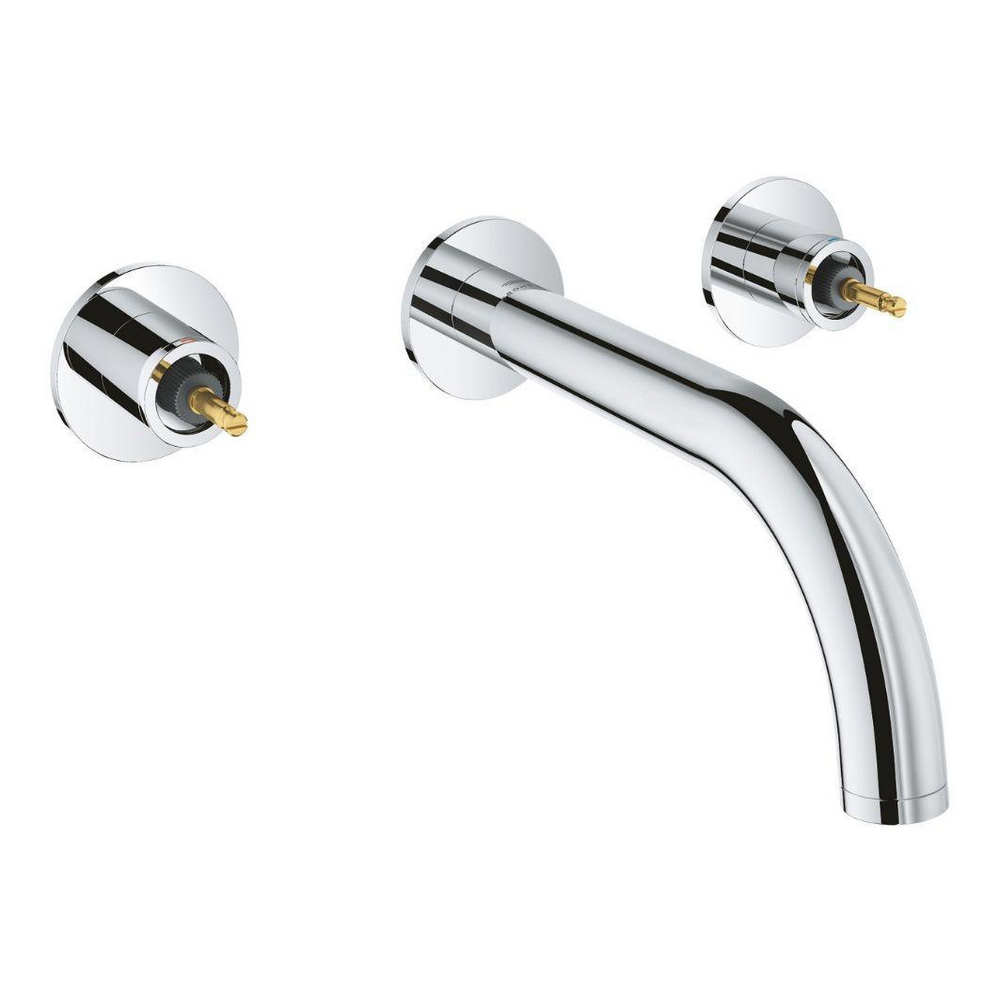

Three-hole basin mixer M-Size
Model: 20587000
Atrio Private Collection

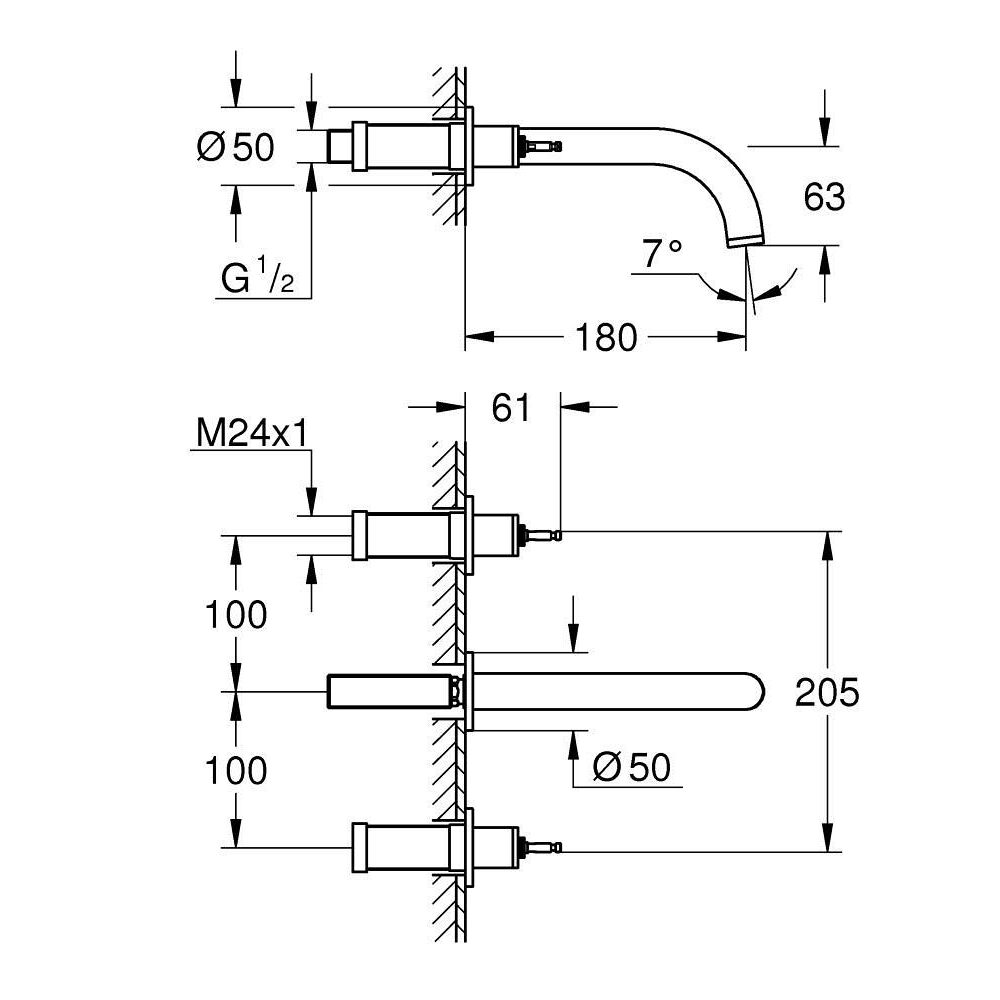

Dimensional Drawing
Technical Details
Product Description
wall mounted
to be used with rough-in set 29 025 002
valves hot/cold
with headparts 1/2" - 90°
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
centre distance 200 mm
projection 180 mm
for stick handles
to be combined with stick sets 48 458, 48 459 or 48 646, please order separately
without roughing-in set 29 025 002 (please order separately)
Style
Contemporary
Installation Type
Wall mounted concealed
Height (mm)
80.0
Length (mm)
355.0
Width (mm)
169.0
Net Weight (kg)
1.12
Gross Weight (kg)
1.12
Colors & Finishes
Chrome
Collection
Atrio Private Collection
Segment
G5
Features & Technologies
Easy Installation System
GROHE StarLight (non-chrome)
PureRain spray
GROHE SilkMove
