Three-hole basin mixer 1/2" L-Size
Model: 20627AL0
Allure Brilliant

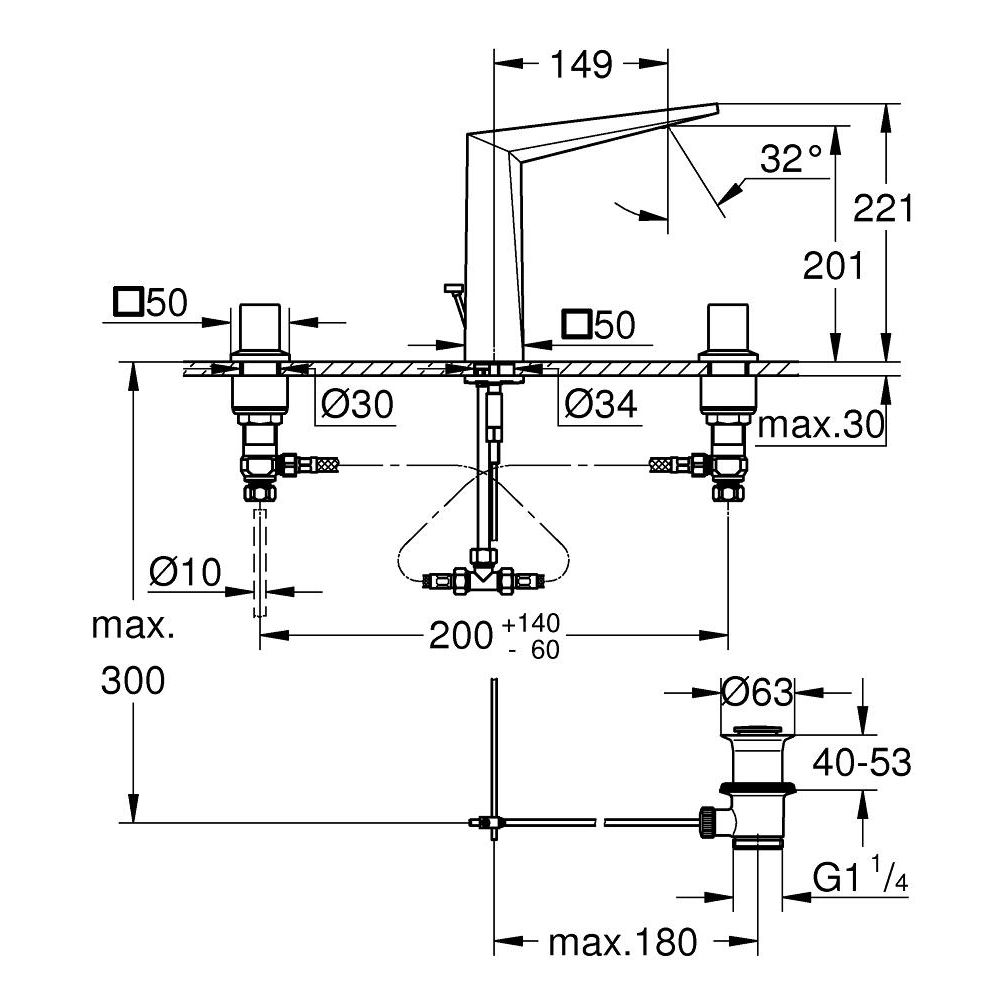

Dimensional Drawing
Technical Details
Product Description
ceramic headparts 1/2", 90°
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
spout with integrated mousseur
pop-up waste set 1 1/4"
pressure-proof, flexible connection hoses
between spout and side valves
min. recommended pressure 1.0 bar
Style
Cosmopolitan
Installation Type
Deck mounted
Height (mm)
85.0
Length (mm)
455.0
Width (mm)
315.0
Net Weight (kg)
4.2
Gross Weight (kg)
4.2
Colors & Finishes
Brushed hard graphite
Collection
Allure Brilliant
Segment
G5
