Three-hole basin mixer 1/2" L-Size
Model: 20649000
Atrio New Classic

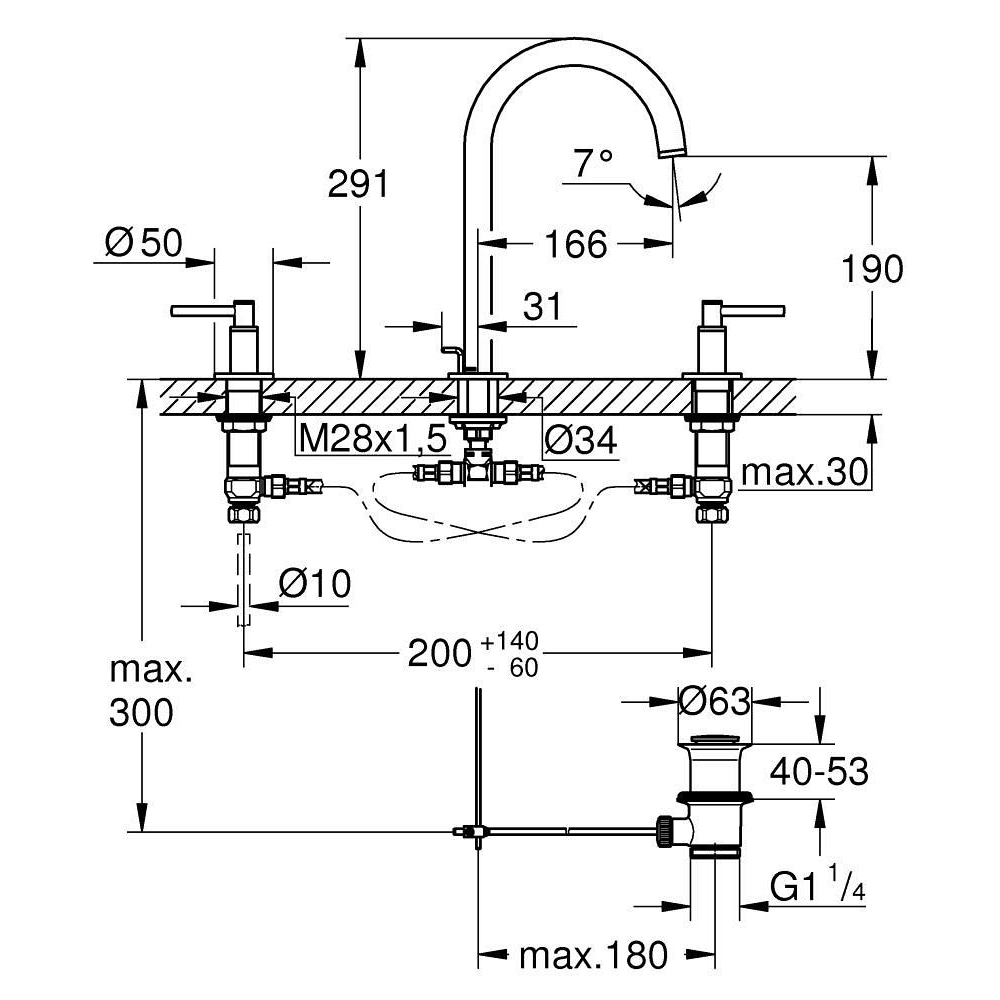

Dimensional Drawing
Technical Details
Product Description
ceramic headparts 1/2", 90°
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
swivel tubular spout with mousseur and stop limiter
adjustable swivel area 0° / 150° / 360°
pop-up waste set 1 1/4"
flexible connection hoses between spout and side valves
with lever handles
Two different sets of caps included. One set with
"H" and "C" marking, one set without marking.
Style
Contemporary
Installation Type
Deck mounted
Height (mm)
100.0
Length (mm)
464.998
Width (mm)
189.992
Net Weight (kg)
2.91
Gross Weight (kg)
2.91
Colors & Finishes
Chrome
Collection
Atrio New Classic
Segment
G5
