Three-hole basin mixer 1/2" M-Size
Model: 20662AL0
Atrio New Classic

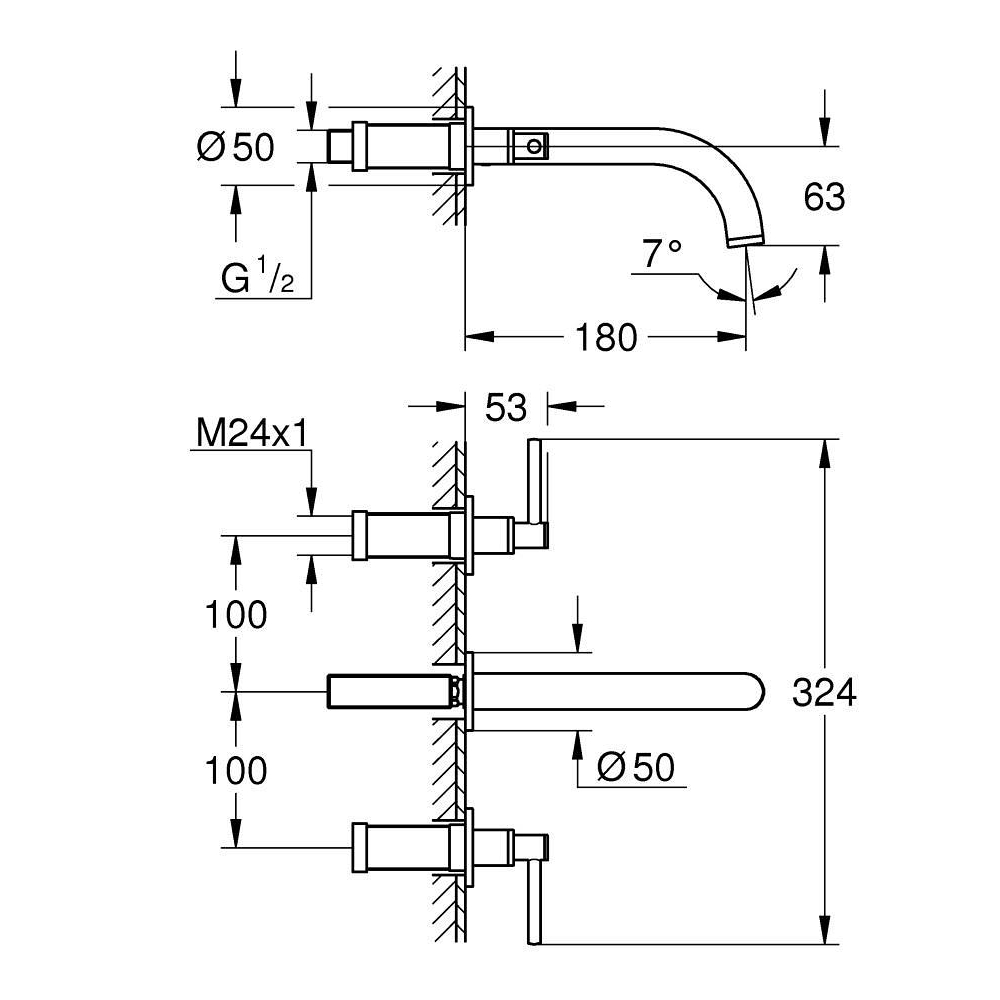

Dimensional Drawing
Technical Details
Product Description
wall mounted
to be used with rough-in set 29 025 002
valves hot/cold
with headparts 1/2" - 90°
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
centre distance 200 mm
projection 180 mm
with lever handles
without roughing-in set 29 025 002 (please order separately)
Two different sets of caps included. One set with
"H" and "C" marking, one set without marking.
Style
Contemporary
Installation Type
Wall mounted concealed
Height (mm)
78.994
Length (mm)
354.99
Width (mm)
169.012
Net Weight (kg)
1.394
Gross Weight (kg)
1.394
Colors & Finishes
Brushed hard graphite
Collection
Atrio New Classic
Segment
G5
