GROHE EcoJoy
Product Catalog
Single-lever basin mixer 1/2" XL-Size
Model: 23403GN1
Allure New

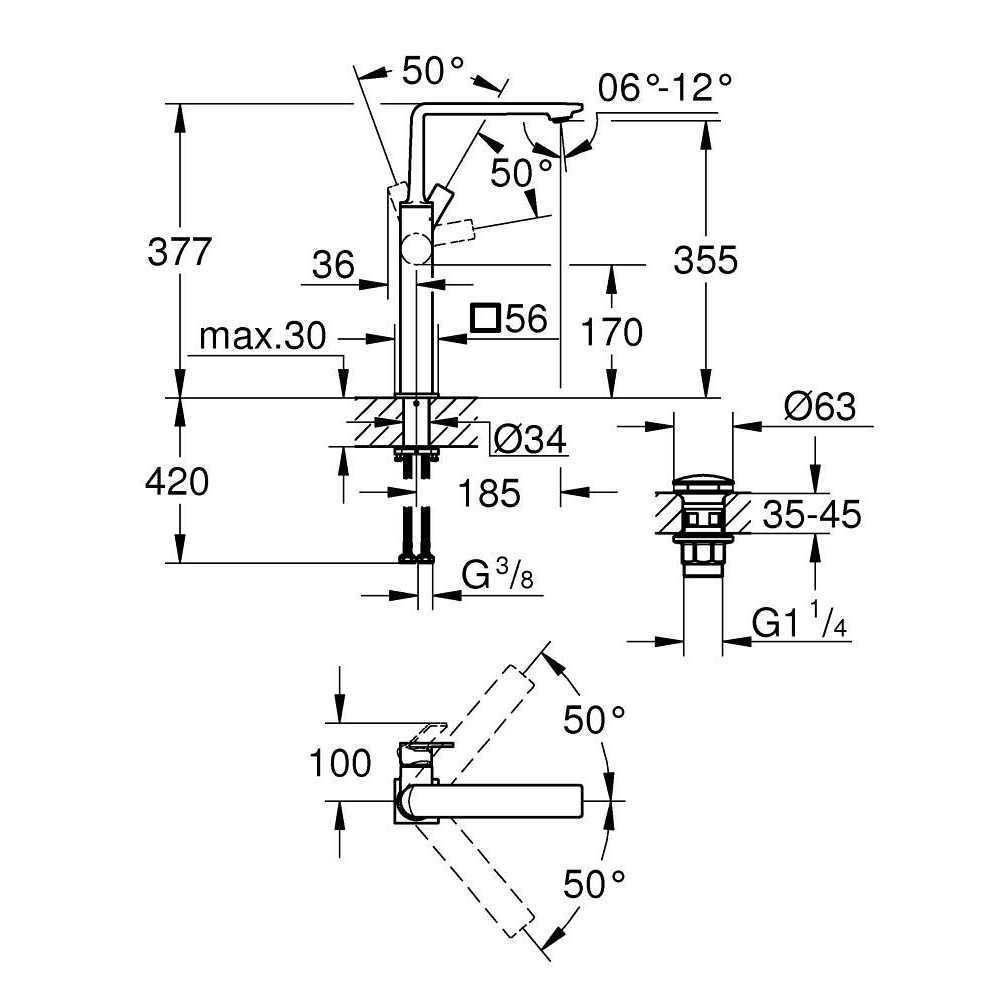

Dimensional Drawing
Technical Details
Product Description
monobloc installation
swivelling spout
for free-standing basins
28 mm ceramic cartridge
with GROHE SilkMove
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
smooth body with push-open waste set 1 1/4"
GROHE AquaGuide adjustable slim air mousseur
projection 185 mm
height 377 mm
push-to-open waste set
flexible connection hoses
temperature limiter
Style
Cosmopolitan
Installation Type
Deck mounted
Height (mm)
150.0
Length (mm)
700.0
Width (mm)
250.0
Net Weight (kg)
3.46
Gross Weight (kg)
3.46
Colors & Finishes
Brushed cool sunrise
Collection
Allure New
Segment
G5
Features & Technologies
GROHE SilkMove
AquaGuide
Extra High Spout (Bathroom)
Push-open pop-up waste
