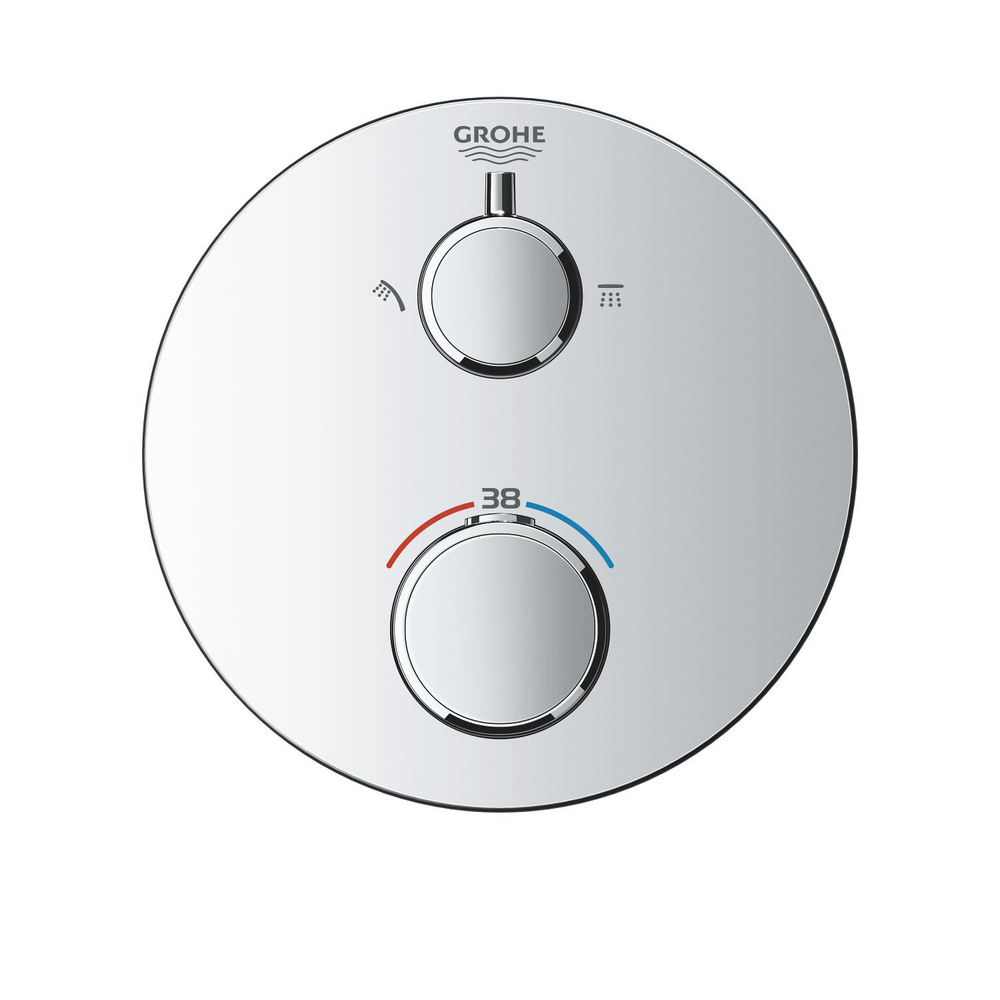

Thermostatic shower mixer for 2 outlets with integrated shut off/diverter valve
Model: 24076000
Grohtherm Convent. Concealed

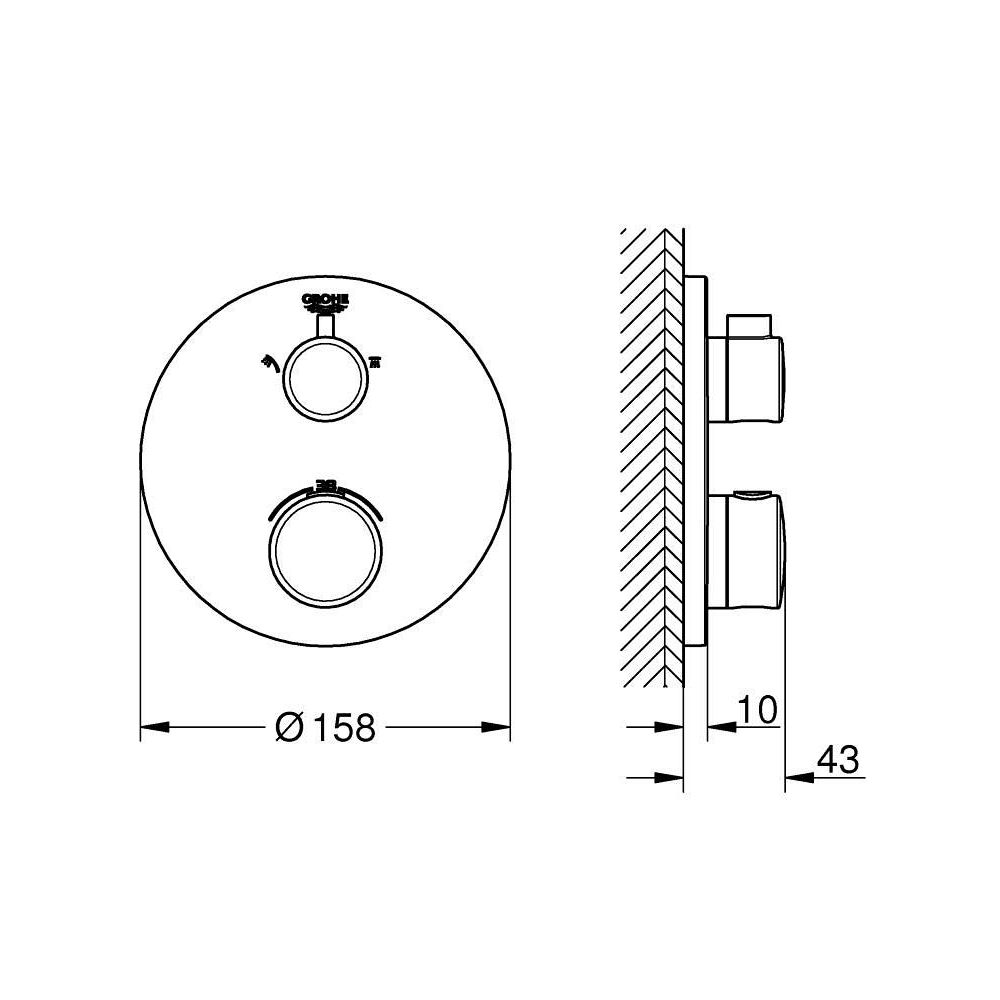

Dimensional Drawing
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
GROHE TurboStat compact cartridge with wax thermoelement
GROHE Long-Life finish
wall escutcheon with GROHE FastFixation
(covered escutcheon- and shaft sealing, covered fixing)
metal escutcheon, retroactively 6° adjustable
printed head and hand shower symbol
GROHE SafeStop safety button at 38°C
(calibration required)
GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
GROHE AquaDimmer, integrated shut off/diverter valve
flow performance:
outlet B = 27 l/min
outlet C = 30 l/min
without roughing-in-set
Installation Type
Wall mounted concealed
Height (mm)
180.0
Length (mm)
245.0
Width (mm)
200.0
Net Weight (kg)
1.59
Gross Weight (kg)
1.59
Colors & Finishes
Chrome
Collection
Grohtherm Convent. Concealed
Segment
G3
Features & Technologies
GROHE StarLight
GROHE TurboStat
SafeStop
AquaDimmer
Product Recommendation

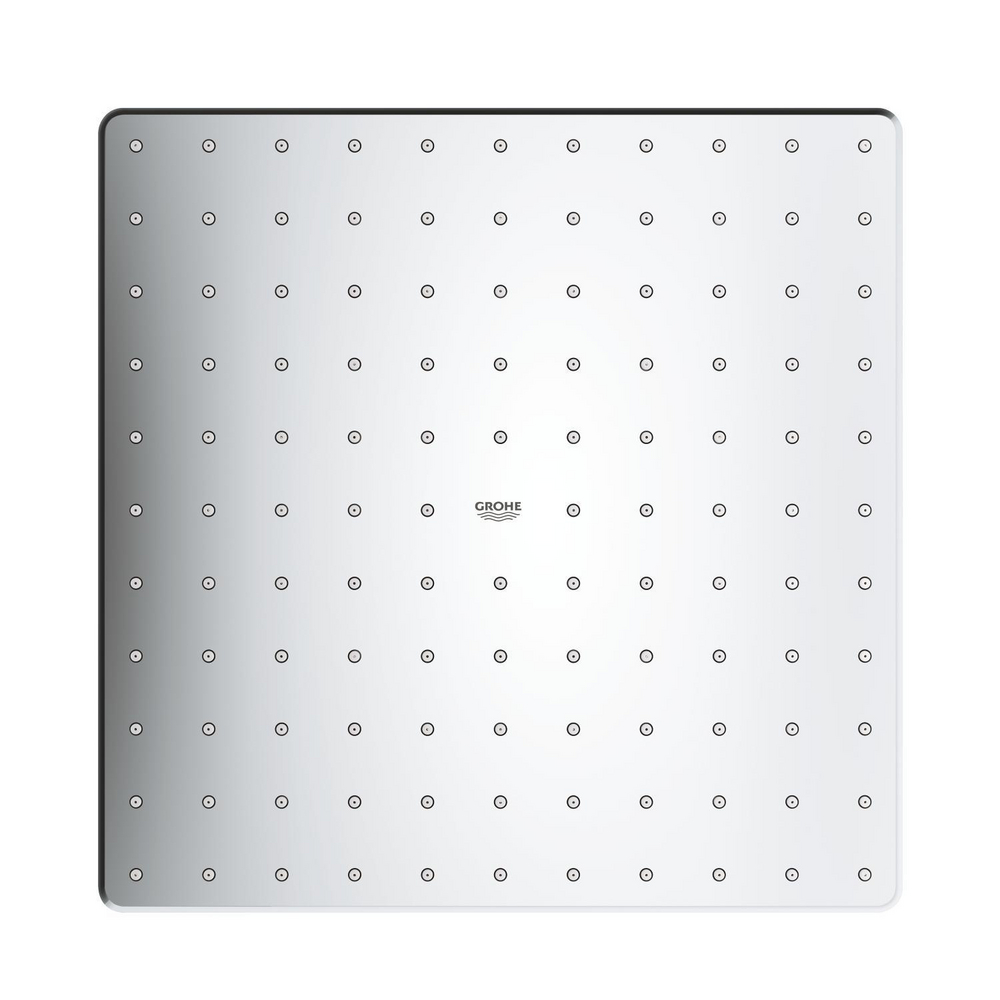

Head shower 1 spray
Model: 26567000

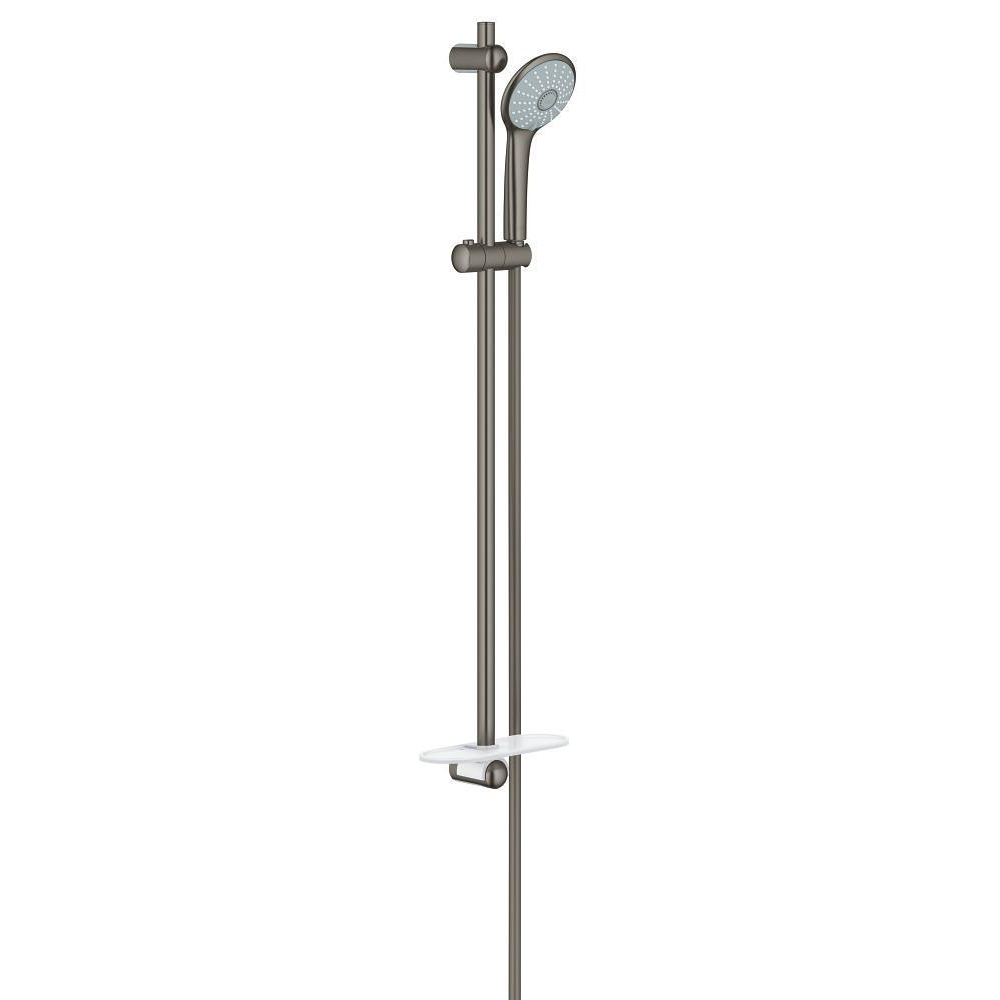

Shower rail set 3 sprays
Model: 27226AL1

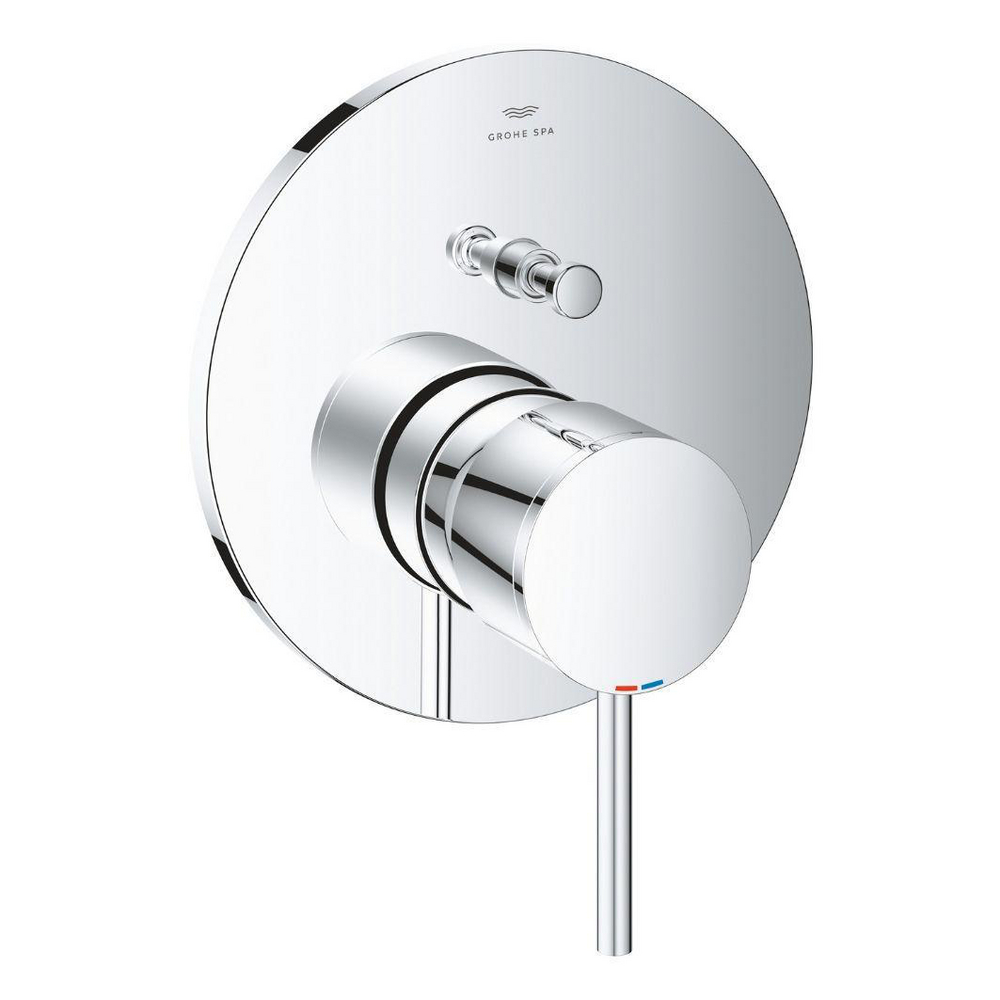

Single-lever mixer with 2-way diverter
