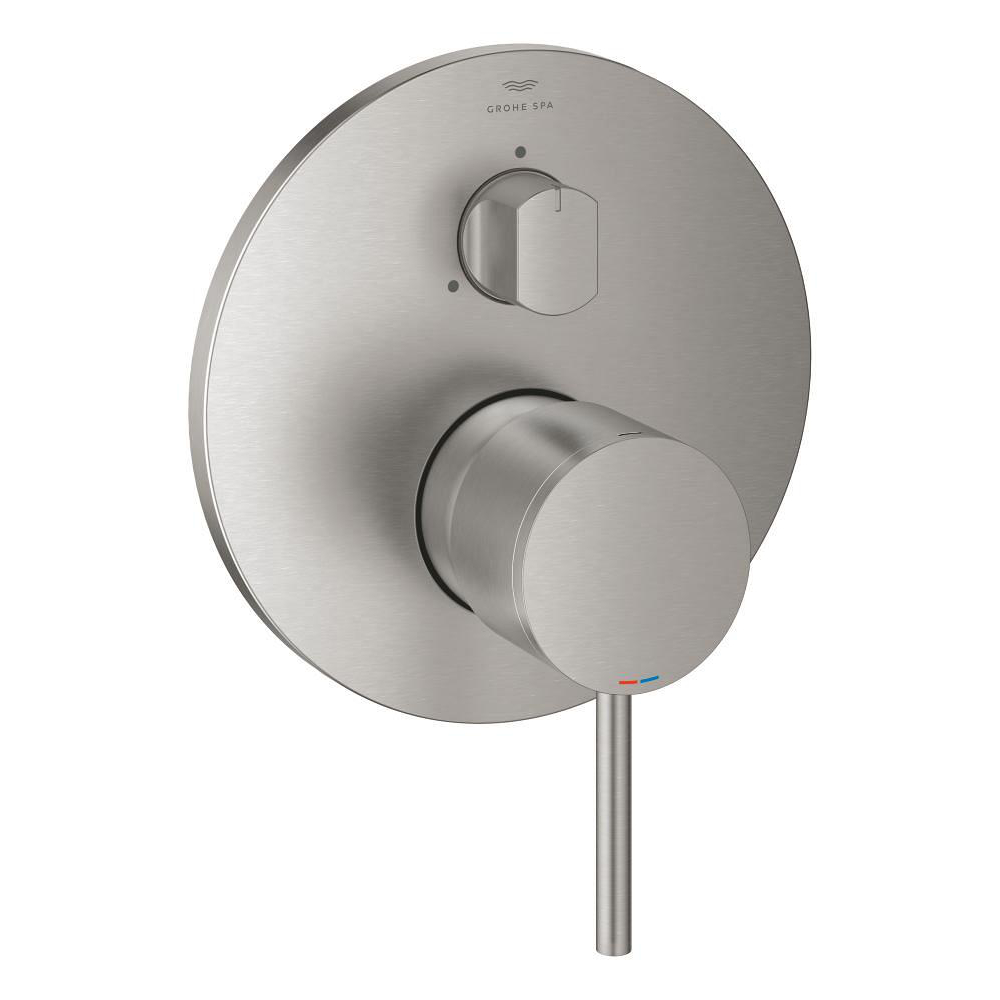

Single-lever mixer with 3-way diverter
Model: 24356DC0
Atrio New Classic

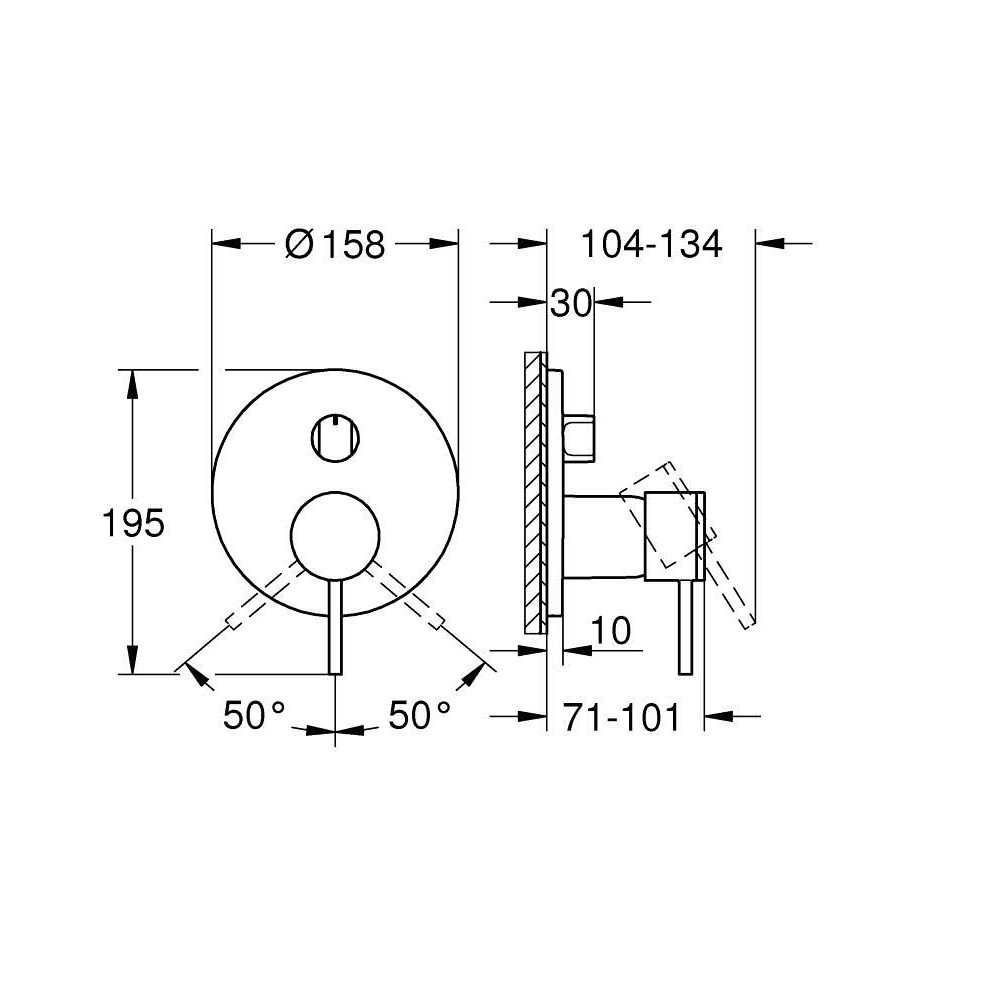

Dimensional Drawing
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
GROHE SilkMove 46 mm ceramic cartridge
GROHE LongLife finish
wall escutcheon with GROHE FastFixation
(covered escutcheon- and shaft sealing, covered fixing)
metal escutcheon, retroactively 6° adjustable
metal lever
3-way diverter
without roughing-in set 35 600/35 604 (please order separately)
flow performance:
outlet A = 27 l/min,
outlet B = 27 l/min,
outlet C = 27 l/min
Style
Contemporary
Installation Type
Wall mounted concealed
Height (mm)
180.0
Length (mm)
245.0
Width (mm)
200.0
Net Weight (kg)
1.835
Gross Weight (kg)
1.835
Colors & Finishes
Supersteel
Collection
Atrio New Classic
Segment
G5
