Thermostatic mixer for 1 outlet with shut off valve
Model: 24357000
Atrio New Classic

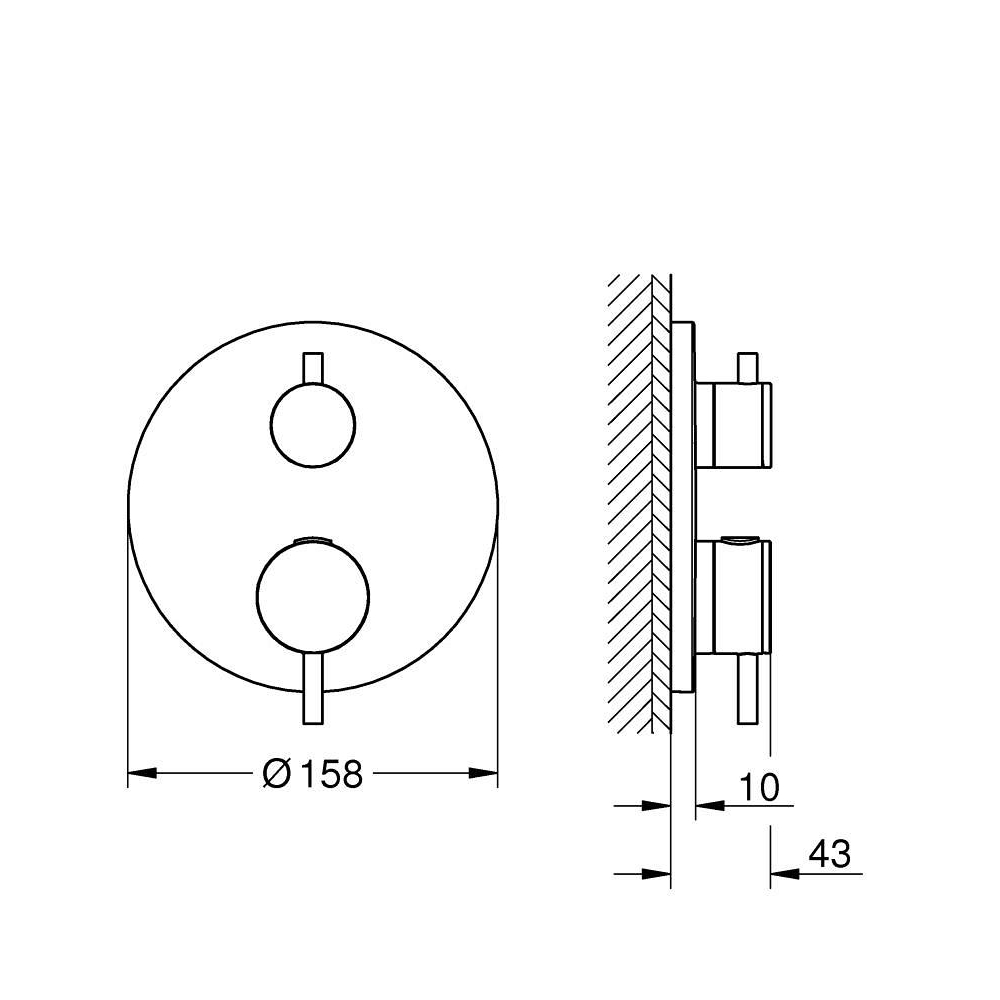

Dimensional Drawing
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
GROHE TurboStat - compact cartridge with wax thermoelement
GROHE LongLife finish
wall escutcheon with GROHE FastFixation
(covered escutcheon- and shaft sealing, covered fixing)
metal escutcheon, retroactively 6° adjustable
GROHE SafeStop - safety button at 38°C
GROHE SafeStop Plus - optional temperature limiter at 43°C or 46°C included
built-in non return valve
and dirt strainers
ceramic stop valve, 120°
metal handles
without roughing-in set 35 600/35 604 (please order separately)
flow performance:
outlet B = 27 l/min
outlet C = 30 l/min
Style
Contemporary
Installation Type
Wall mounted concealed
Height (mm)
180.01
Length (mm)
250.012
Width (mm)
200.0
Net Weight (kg)
1.74
Gross Weight (kg)
1.74
Colors & Finishes
Chrome
Collection
Atrio New Classic
Segment
G5
