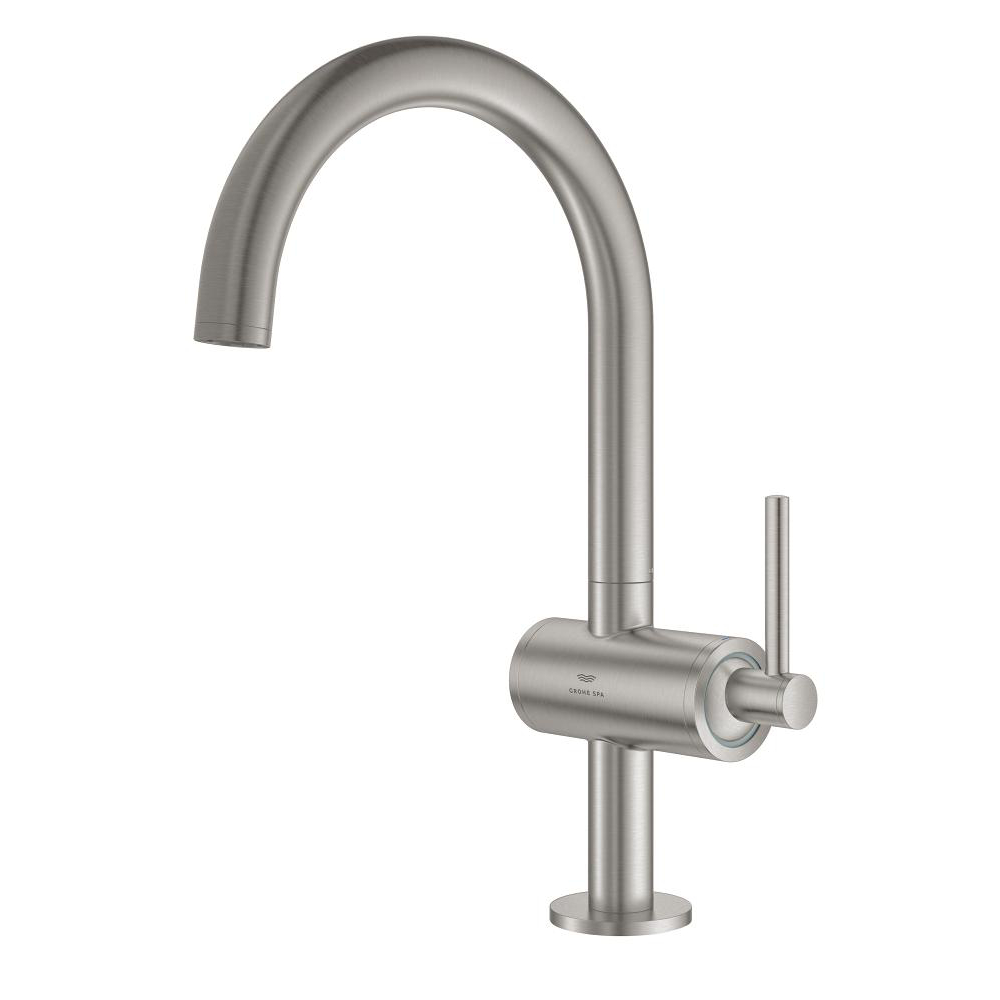

Single-lever basin mixer 1/2" L-Size
Model: 24362DC0
Atrio New Classic

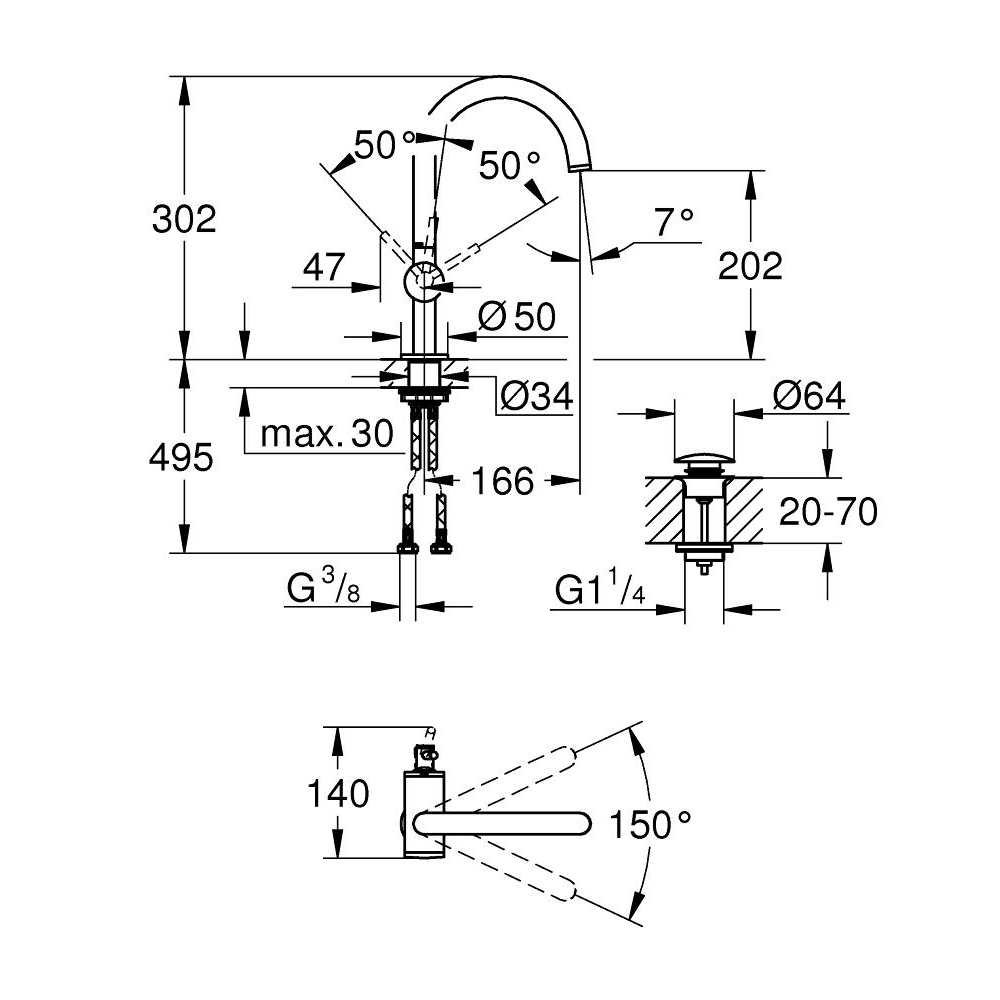

Dimensional Drawing
Technical Details
Product Description
monobloc installation
28 mm ceramic cartridge
with GROHE SilkMove
with temperature limiter
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
swivel tubular C-spout with mousseur
stop limiter
adjustable swivel area 0° / 150° / 360°
Push-open waste set 1 1/4"
flexible connection hoses
Style
Contemporary
Installation Type
Deck mounted
Height (mm)
120.0
Length (mm)
580.0
Width (mm)
195.0
Net Weight (kg)
2.875
Gross Weight (kg)
2.9
Colors & Finishes
Supersteel
Collection
Atrio New Classic
Segment
G5
