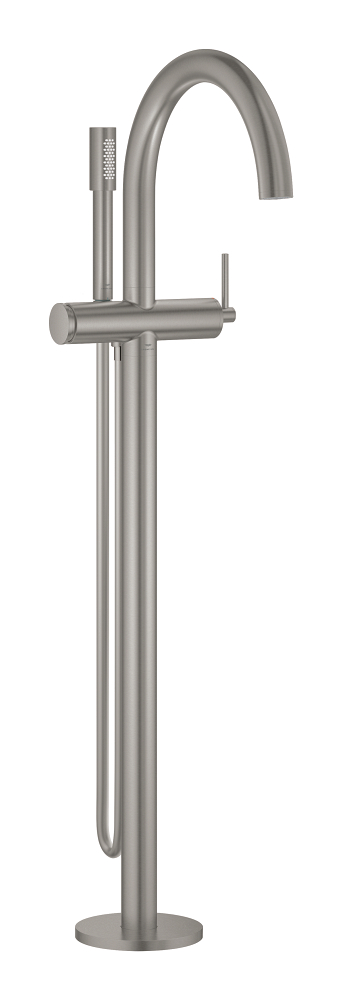

Single-lever bath mixer floor mounted
Model: 24368DC0
Atrio New Classic

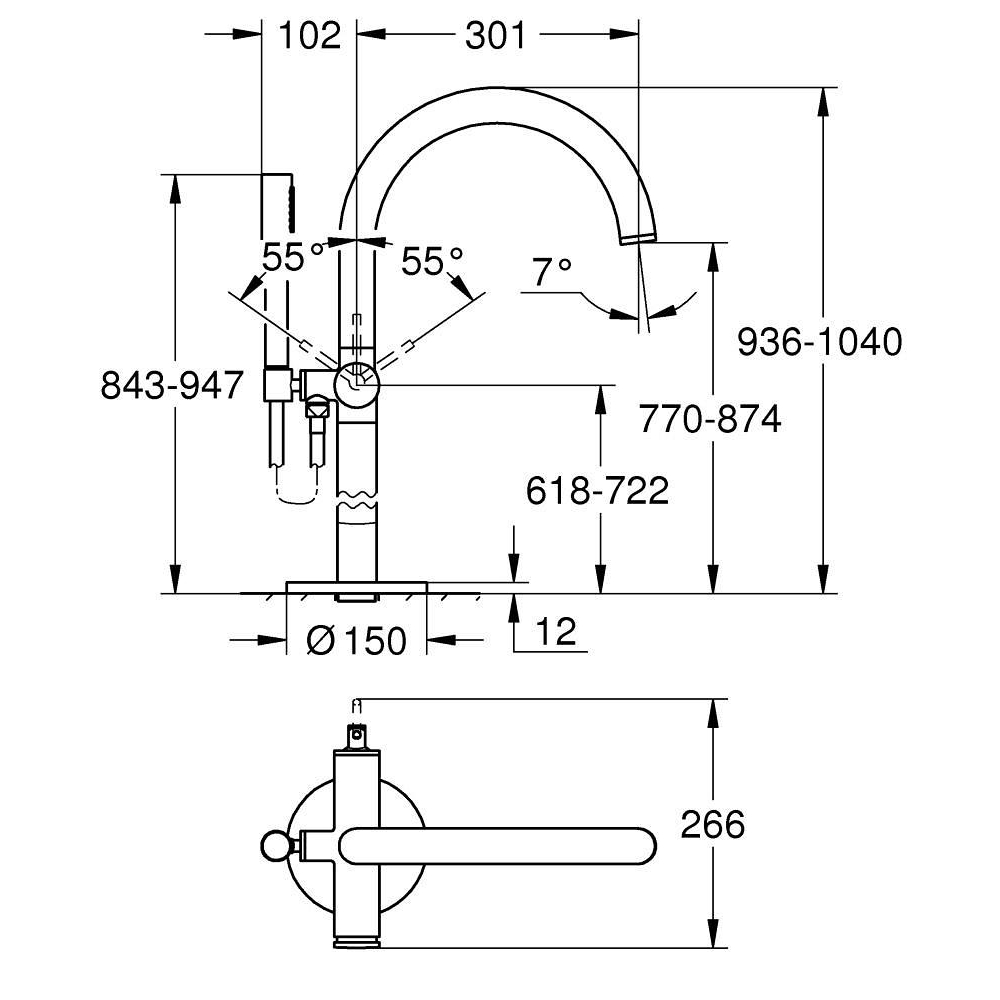

Dimensional Drawing
Technical Details
Product Description
for use with rough-in set 45 984 001
GROHE SilkMove 35 mm ceramic cartridge
with temperature limiter
GROHE LongLife finish
automatic diverter: bath/shower
spout with mousseur
projection 301 mm
integrated non-return valve
in the shower outlet 1/2"
with shower holder
hand shower Rainshower Aqua Stick (26 866)
Silverflex shower hose 1250 mm
protected against backflow
without roughing-in set 45 984 (please order separately)
Style
Contemporary
Installation Type
Freestanding installation
Height (mm)
230.0
Length (mm)
930.0
Width (mm)
250.0
Net Weight (kg)
12.12
Gross Weight (kg)
12.12
Colors & Finishes
Supersteel
Collection
Atrio New Classic
Segment
G5
