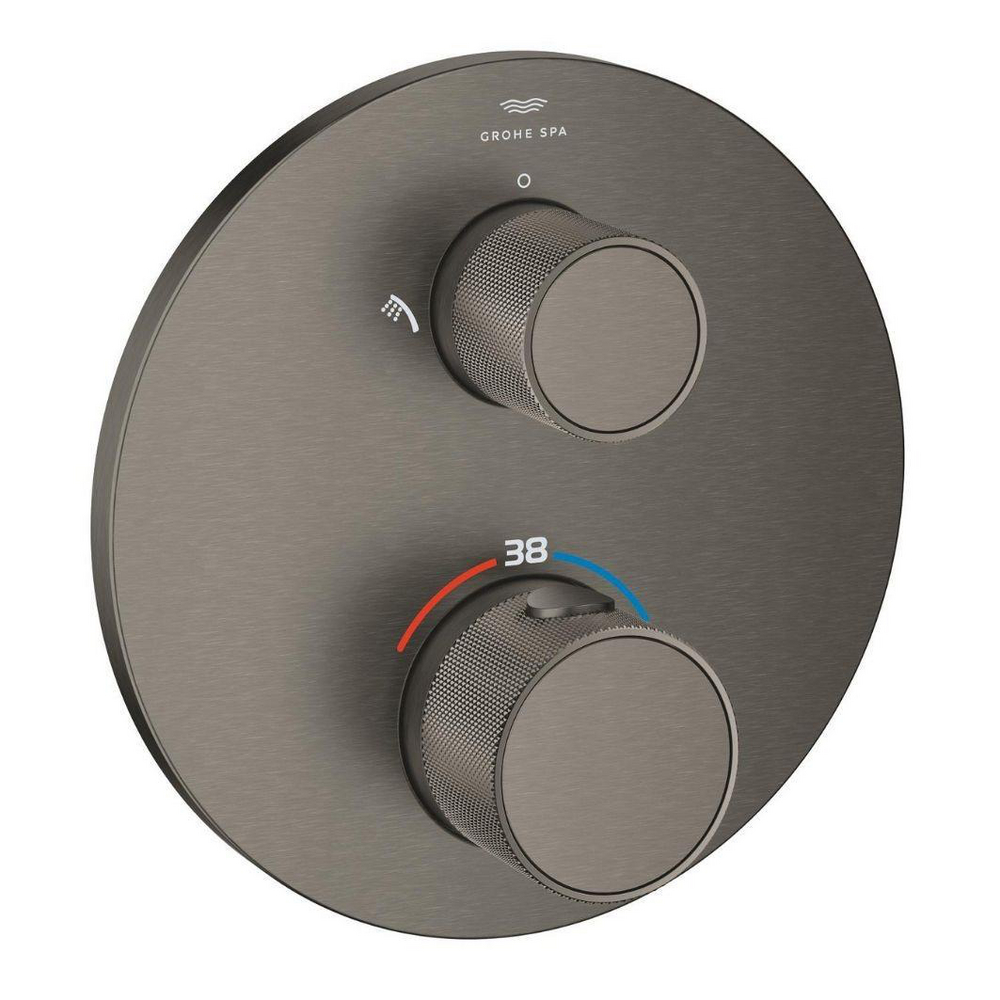

Thermostatic shower mixer for 2 outlets with integrated shut off/diverter valve with knob
Model: 24396AL0
Atrio Private Collection

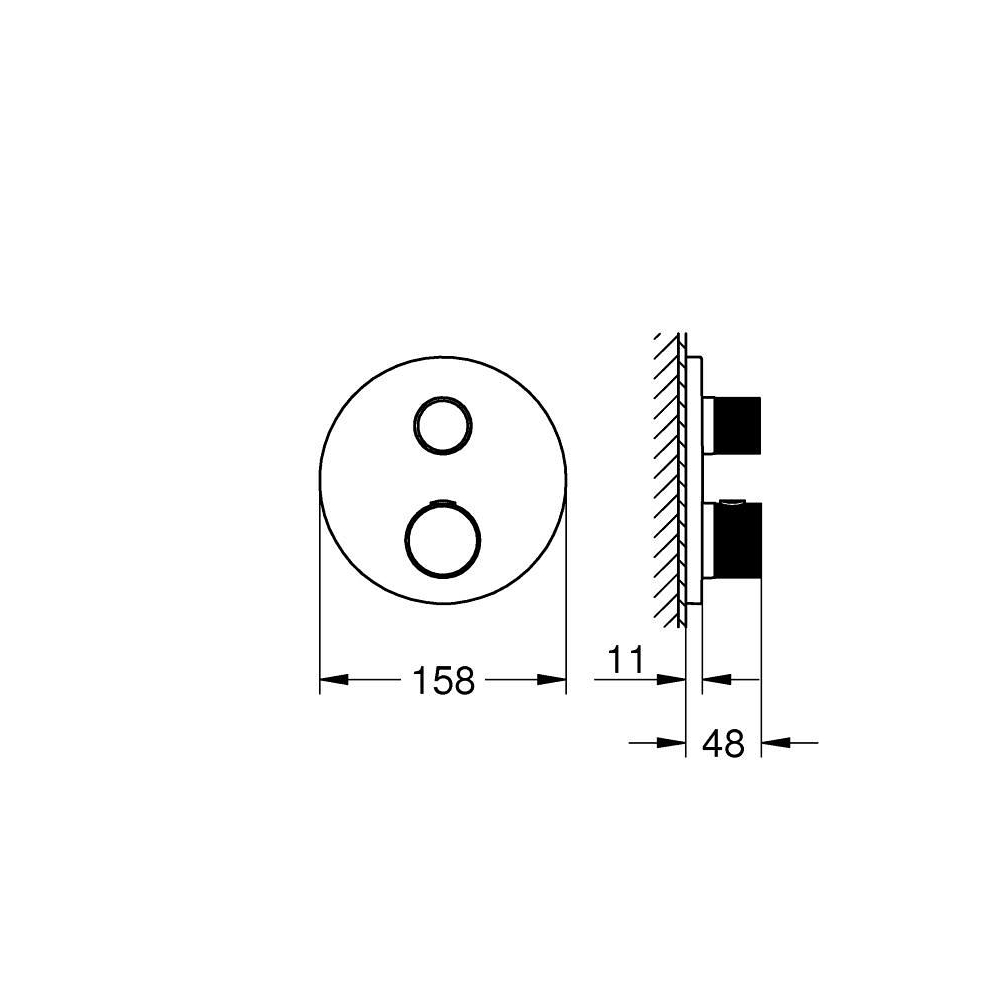

Dimensional Drawing
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
GROHE TurboStat - compact cartridge with wax thermoelement
GROHE LongLife finish
wall escutcheon with GROHE FastFixation
(covered escutcheon- and shaft sealing, covered fixing)
metal escutcheon, retroactively 6° adjustable
printed head and hand shower symbol
GROHE SafeStop - safety button at 38°C
GROHE SafeStop Plus - optional temperature limiter at 43°C or 46°C included
GROHE AquaDimmer, integrated shut off/diverter valve
knobs with metal inlay
can be combined with 48 466 000 or 48 467 000
without roughing-in set 35 600/35 604 (please order separately)
flow performance:
outlet B = 27 l/min
outlet C = 30 l/min
Style
Contemporary
Installation Type
Wall mounted concealed
Height (mm)
180.0
Length (mm)
250.0
Width (mm)
200.0
Net Weight (kg)
1.935
Gross Weight (kg)
1.935
Colors & Finishes
Brushed hard graphite
Collection
Atrio Private Collection
Segment
G5
