GROHE QuickFix (wallmounted)
Product Catalog
Five-hole bath combination
Model: 25224AL0
Atrio Private Collection

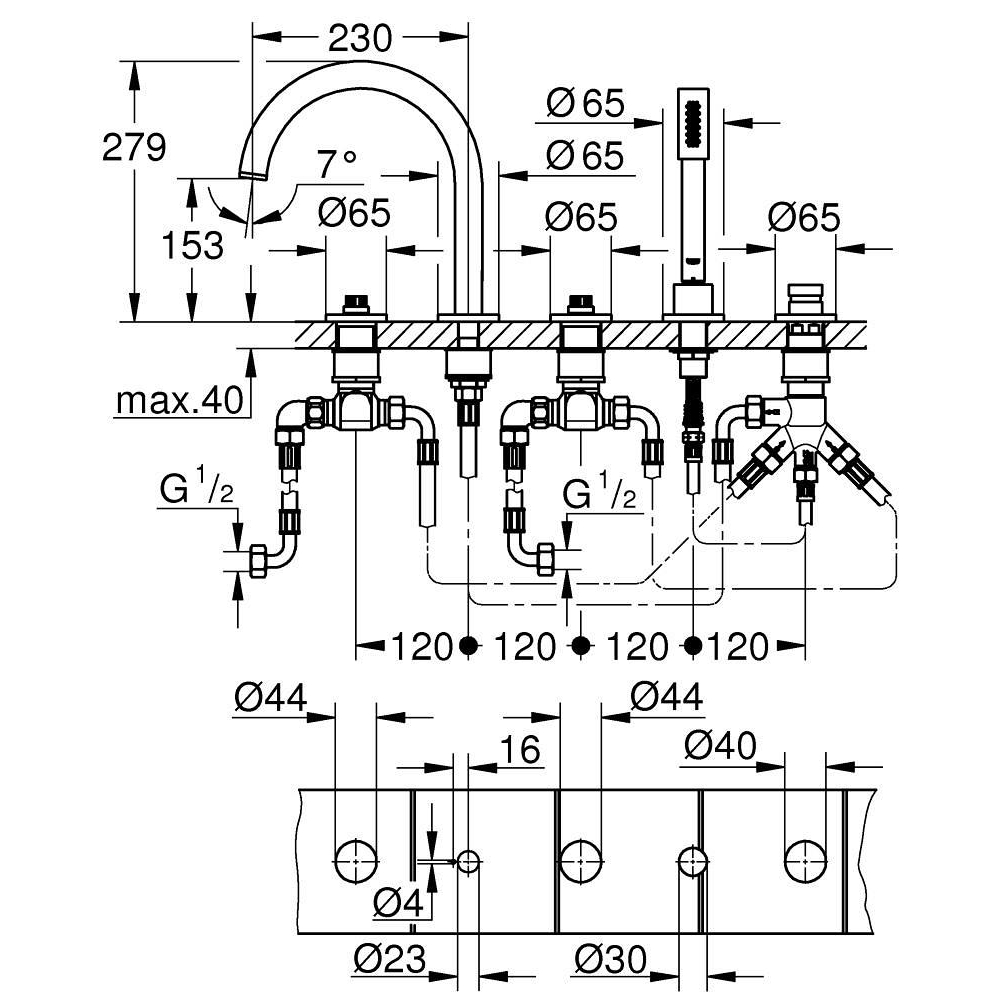

Dimensional Drawing
Technical Details
Product Description
ceramic headparts 1/2", 90°
GROHE LongLife finish
Consisting of:
pre-assembled spout fixing
bath spout with mousseur and diverter bath/shower
hand shower Rainshower Aqua Stick 6.5 l/min
shower hose 2000 mm
flexible connection hoses
connection for shower hose
protected against backflow
for stick handles
to be combined with stick sets 48 464, 48 465 or 48 651, please order separately
can be used with 29 037 002
Style
Contemporary
Installation Type
Deck mounted
Height (mm)
115.0
Length (mm)
570.0
Width (mm)
370.0
Net Weight (kg)
8.68
Gross Weight (kg)
8.68
Colors & Finishes
Brushed hard graphite
Collection
Atrio Private Collection
Segment
G5
Features & Technologies
GROHE StarLight (non-chrome)
Swivel Range 360
Separated inner water ways
