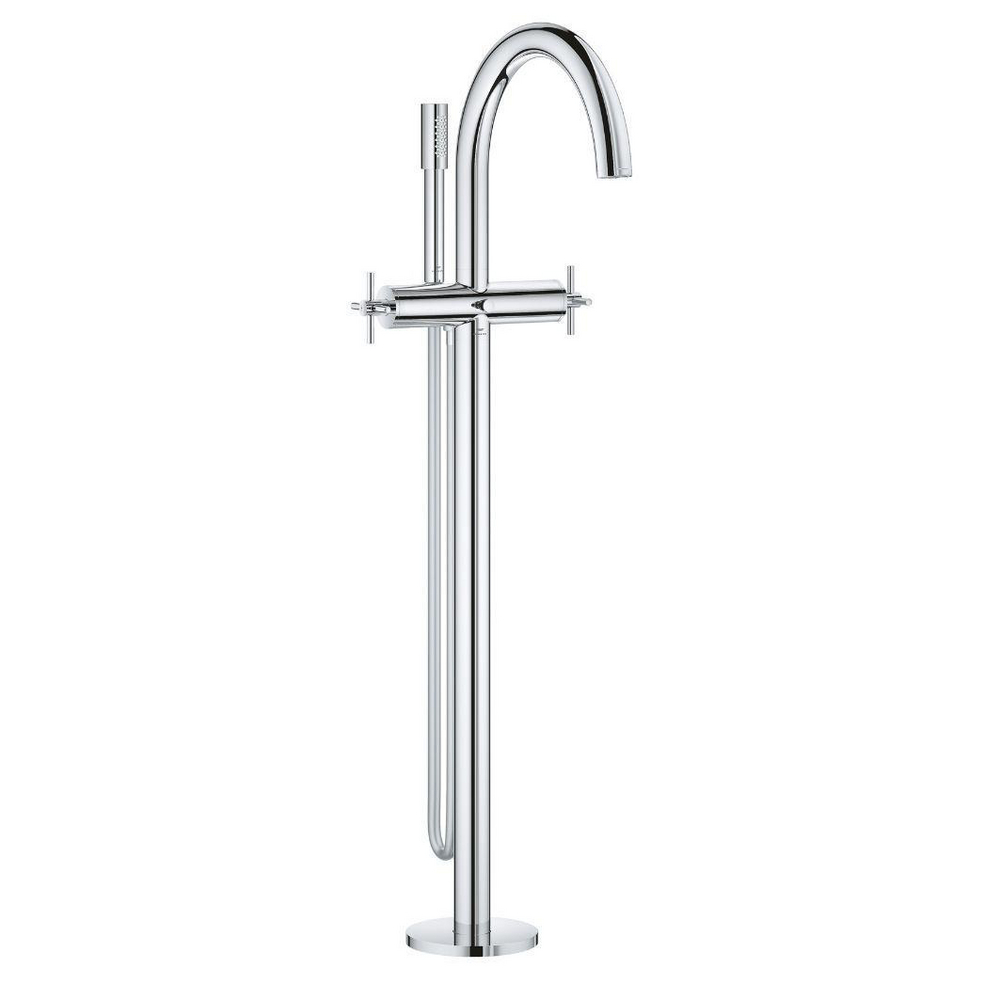

Single-lever bath mixer 1/2" floor mounted
Model: 24375000
Product Catalog

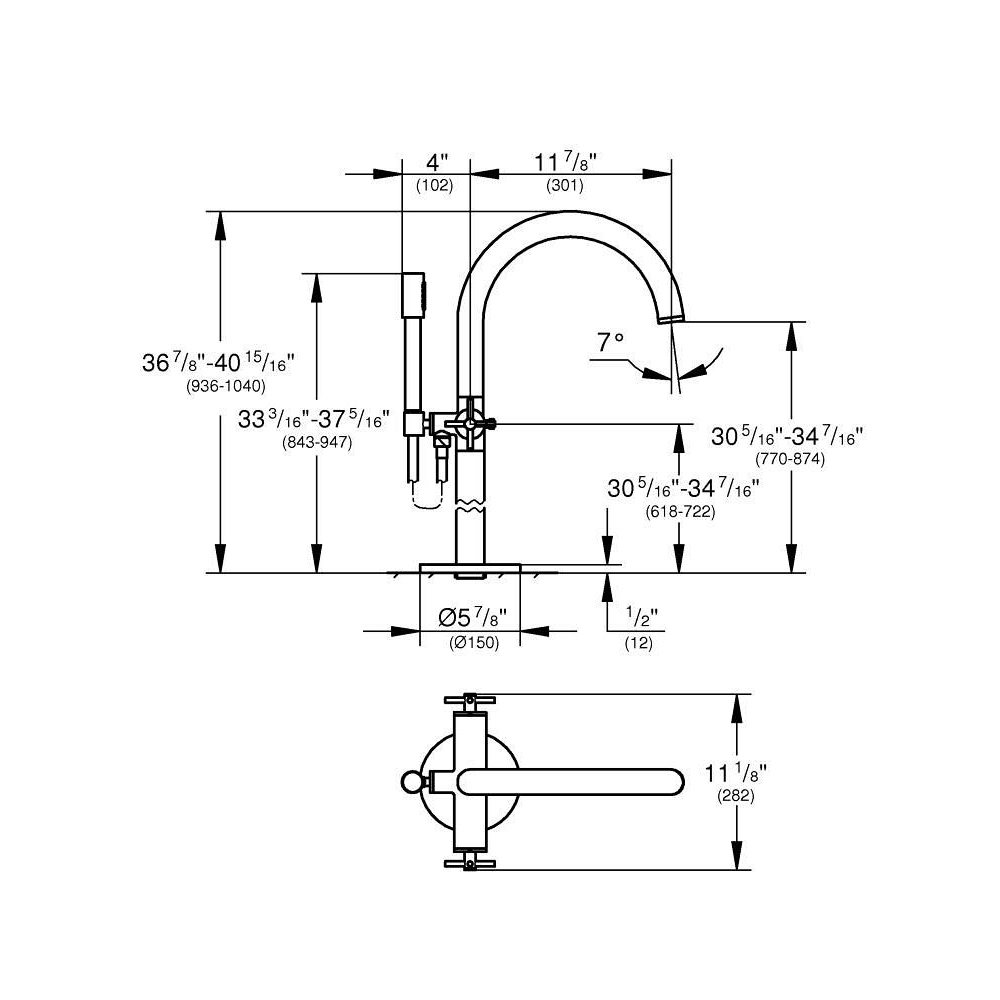

Dimensional Drawing
Technical Details
Product Description
floor-mounted installation
with high pillar unions (765 mm)
for use with rough-in set 45 984 001
ceramic headparts 1/2", 90°
GROHE LongLife finish
automatic diverter: bath/shower
spout with mousseur
projection 301 mm
integrated non-return valve
in the shower outlet 1/2"
hand shower Rainshower Aqua Stick (26 866)
with shower holder
Silverflex shower hose 1250 mm (28 362)
protected against backflow, with cross handles
without roughing-in set 45 984 (please order separately)
Two different sets of caps included. One set with
"H" and "C" marking, one set without marking.
Style
Contemporary
Installation Type
Freestanding installation
Height (mm)
230.0
Length (mm)
930.0
Width (mm)
250.0
Net Weight (kg)
12.61
Gross Weight (kg)
12.61
Colors & Finishes
Chrome
Collection
Atrio New Classic
Segment
G5
