26855000

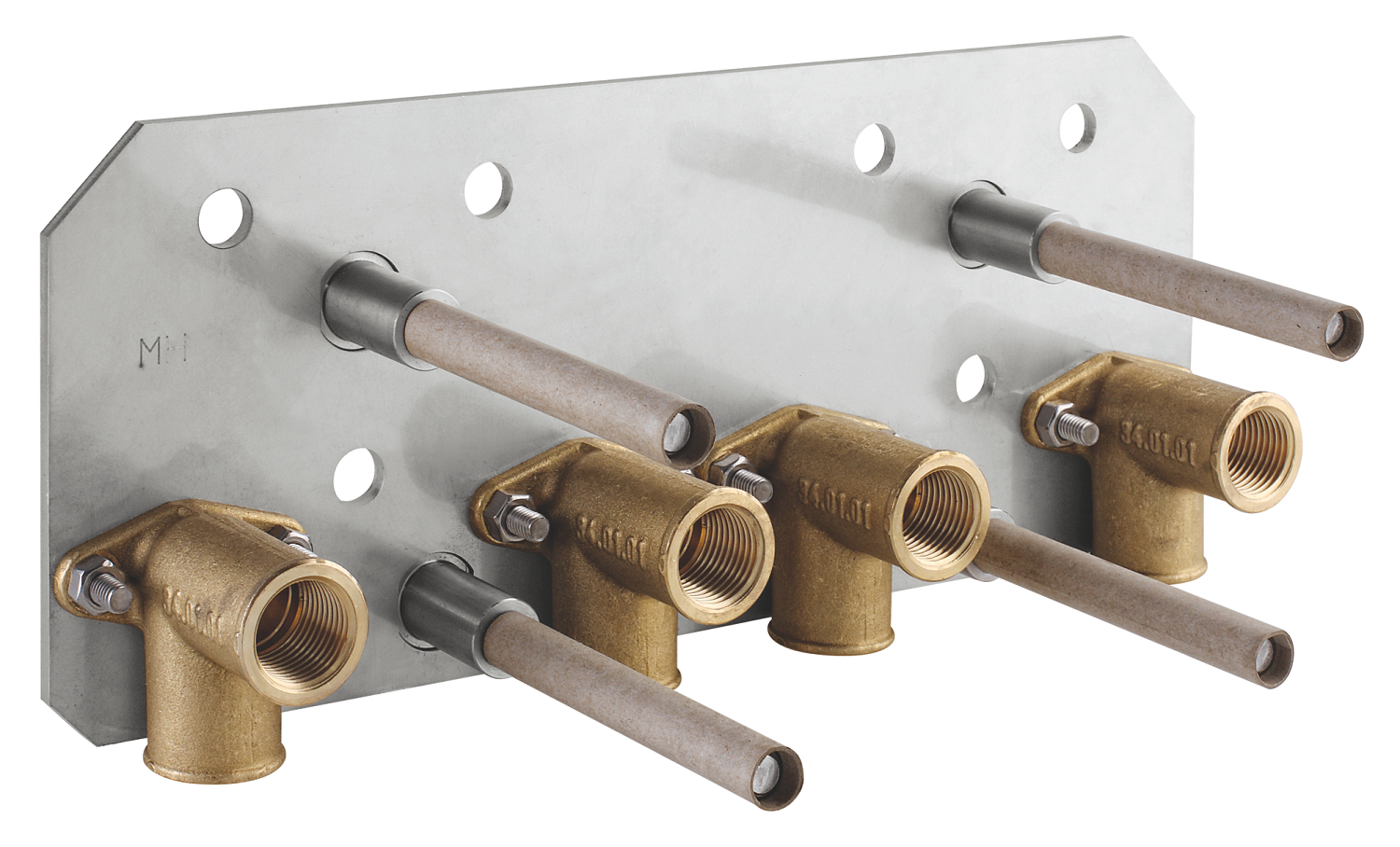

Rough-in set

Model: 26855000

Rainshower AQUA

CAD File

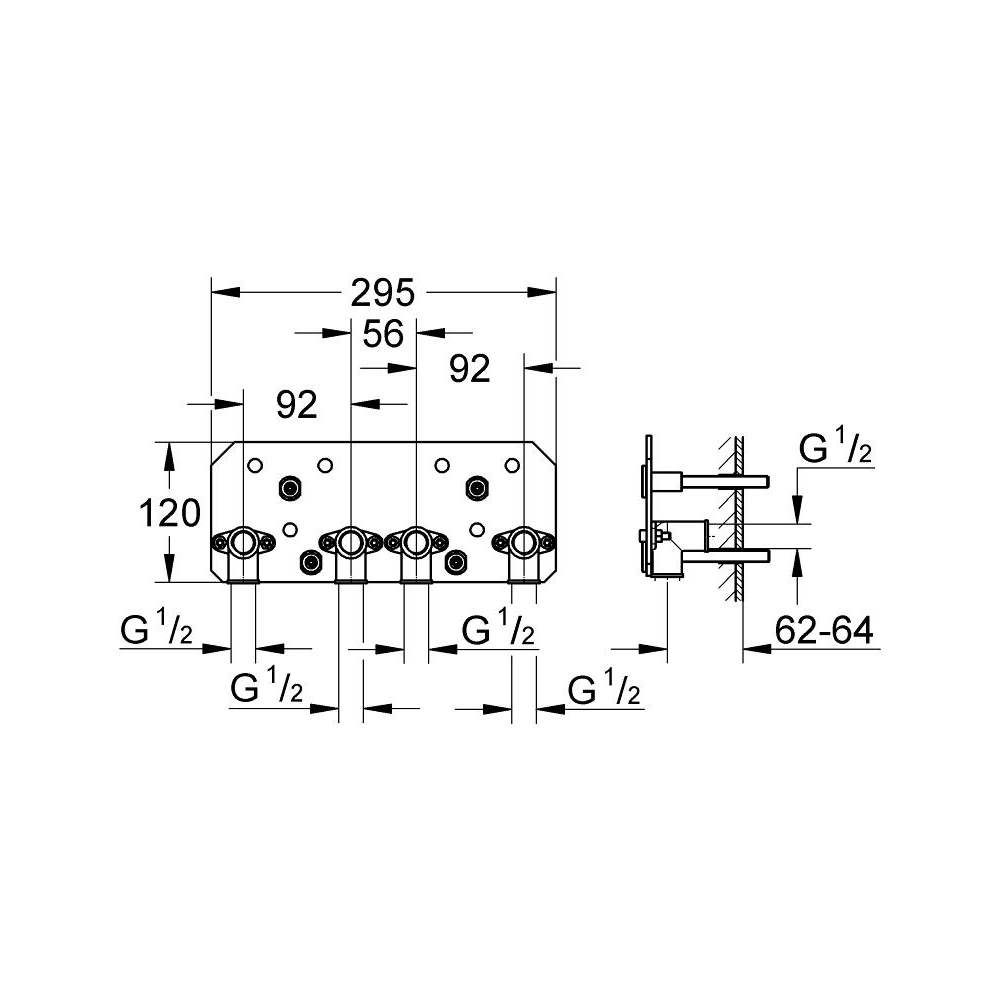

Dimensional Drawing
Installation Manual

Dimensional Drawing

Technical Details

Product Description
for use with Rainshower Aqua 15" multi spray head shower 295 mm (width) x 121 mm (height) x 181 mm (depth) Max. installation depth: 91 mm Min. wall thickness: not less that 200 mm Minimum screw-in depth of stud bolts: 14 mm Full metal construction Waterways: Brass 1/2" connections
Style
Cosmopolitan
Installation Type
Wall mounted concealed
Height (mm)
80.0
Length (mm)
345.0
Width (mm)
165.0
Net Weight (kg)
2.585
Gross Weight (kg)
2.585
Collection
Rainshower AQUA
Segment
G5

Product Recommendation

Inlays made from White Attica Caesarstone material
#

#n/a

Inlays made from White Attica Caesarstone material

Model: 48460000

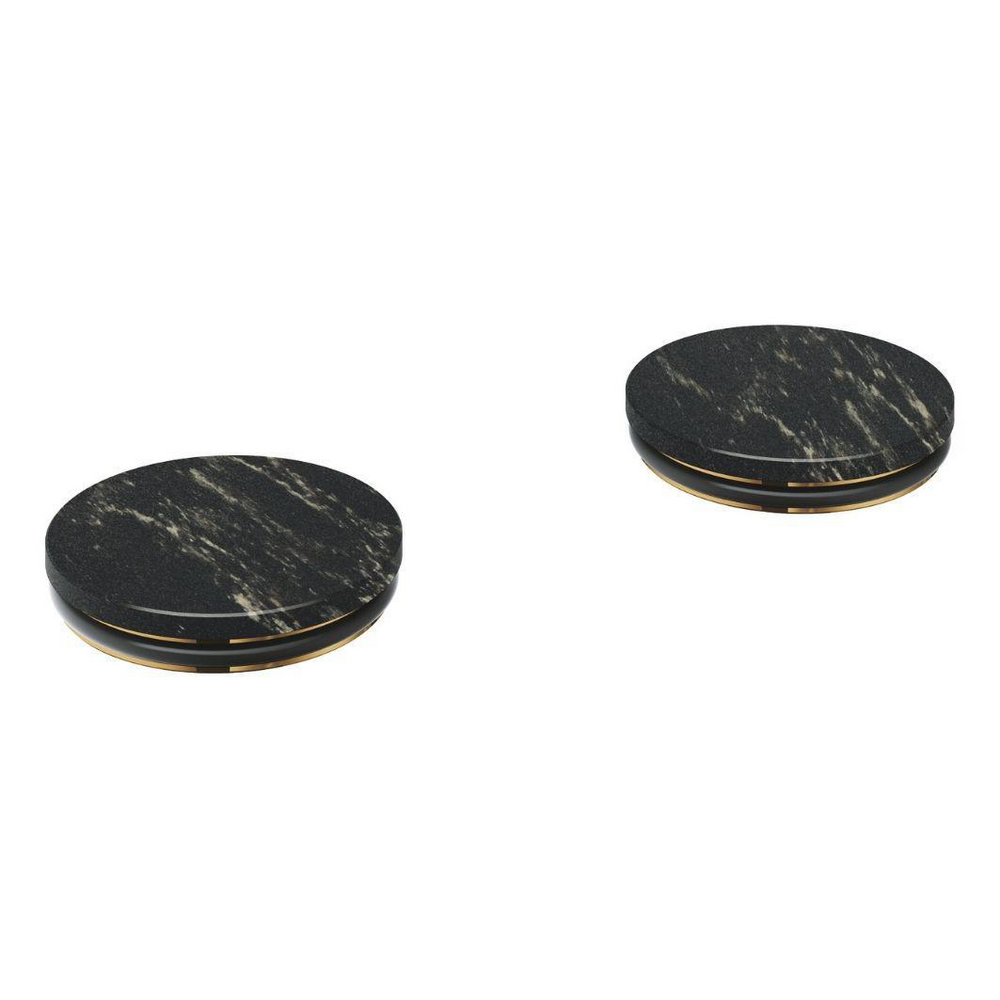

Inlays made from Vanilla Noir Caesarstone material
#

#n/a

Inlays made from Vanilla Noir Caesarstone material

Model: 48461000

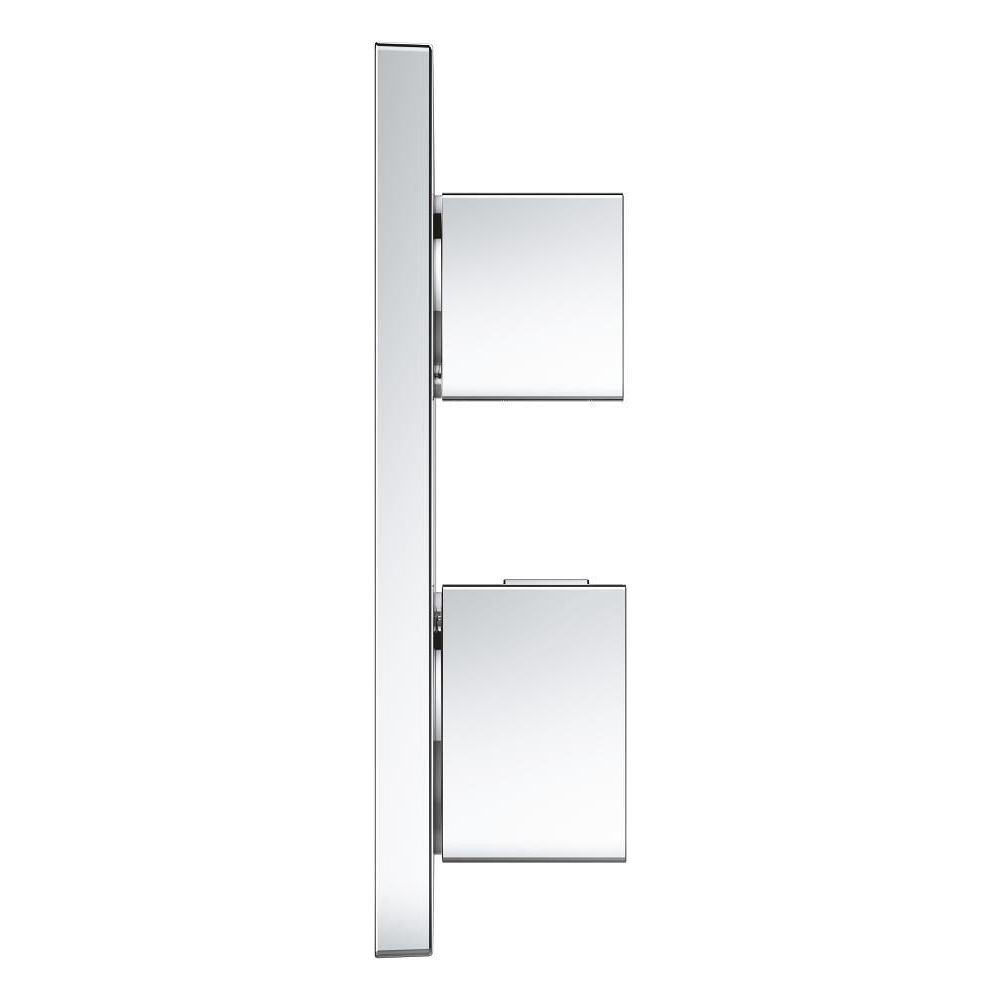

Thermostatic mixer for 1 outlet with shut off valve
#
