GROHE EcoJoy
Product Catalog

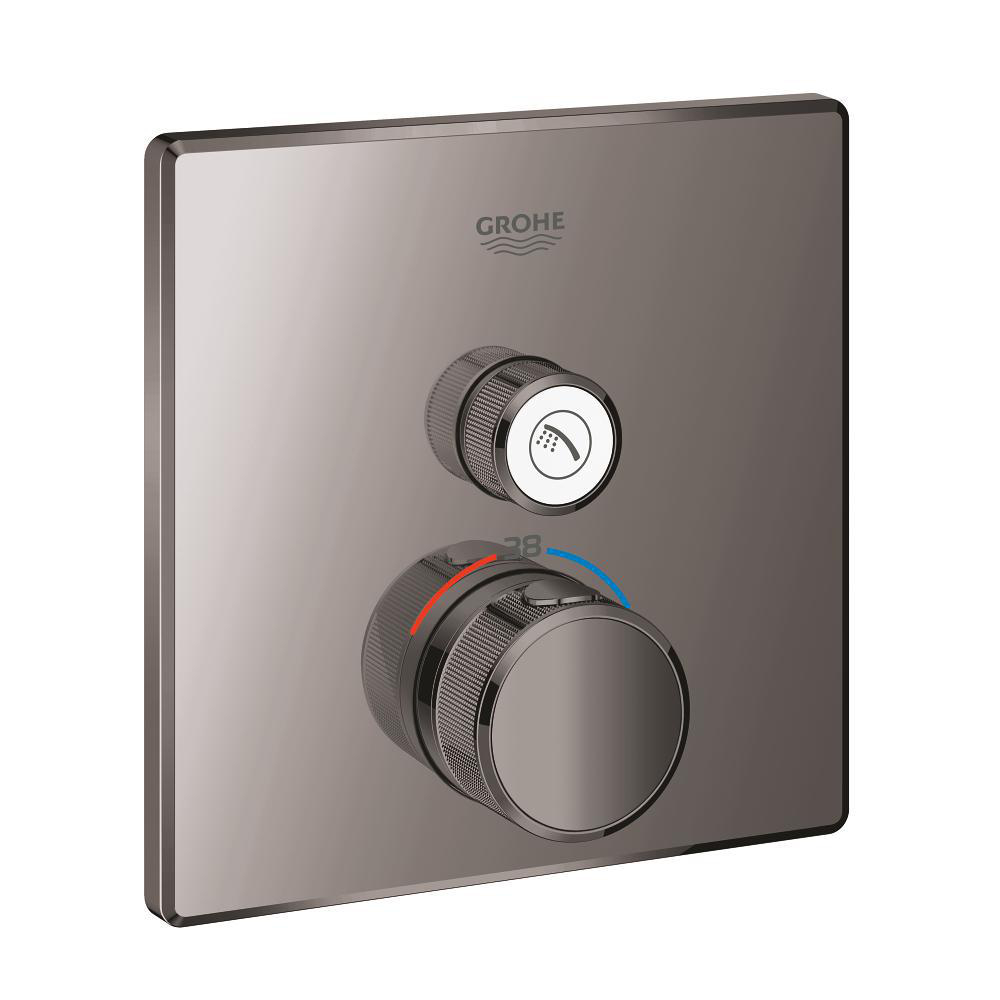

Thermostat for concealed installation with one valve
Model: 29123A00
Grohtherm SmartControl

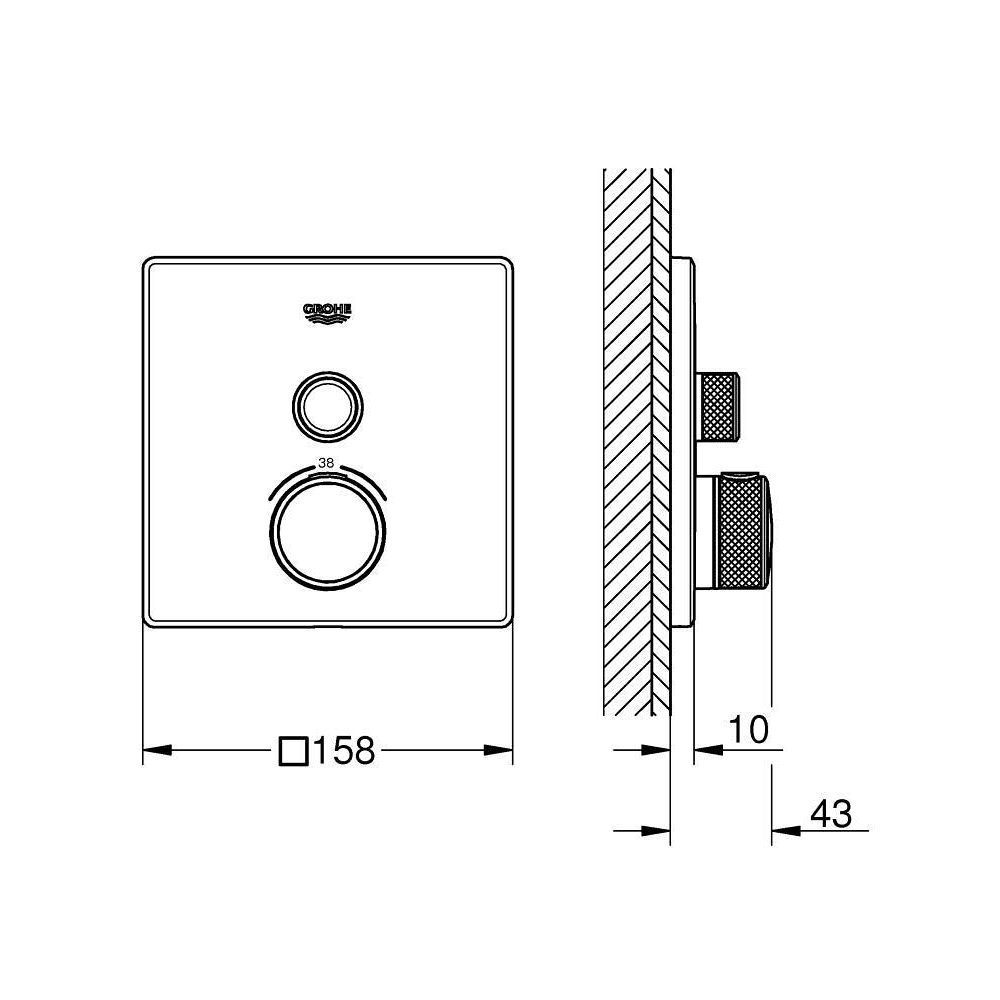

Dimensional Drawing
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
metal wall escutcheon with GROHE FastFixation (covered escutcheon
and shaft sealing, covered fixing), retroactively 6° adjustable
GROHE LongLife finish
GROHE SmartControl - control the shower with intuitive push/turn button
exchangeable symbols
GROHE TurboStat - compact cartridge with wax thermoelement
GROHE SafeStop - safety button at 38°C
GROHE SafeStop Plus - optional temperature limiter at 43°C or 46°C included
built-in non return valve
and dirt strainers
without roughing-in set 35 600/35 604 (please order separately)
flow performance:
outlet A (to external shut-off) = 34 l/min
outlet B/C = 29 l/min
Style
Missing
Installation Type
Wall mounted concealed
Height (mm)
180.0
Length (mm)
245.0
Width (mm)
200.0
Net Weight (kg)
1.68
Gross Weight (kg)
1.68
Colors & Finishes
Hard graphite
Collection
Grohtherm SmartControl
Segment
G4
Features & Technologies
GROHE StarLight (non-chrome)
SmartControl
GROHE TurboStat
SafeStop
