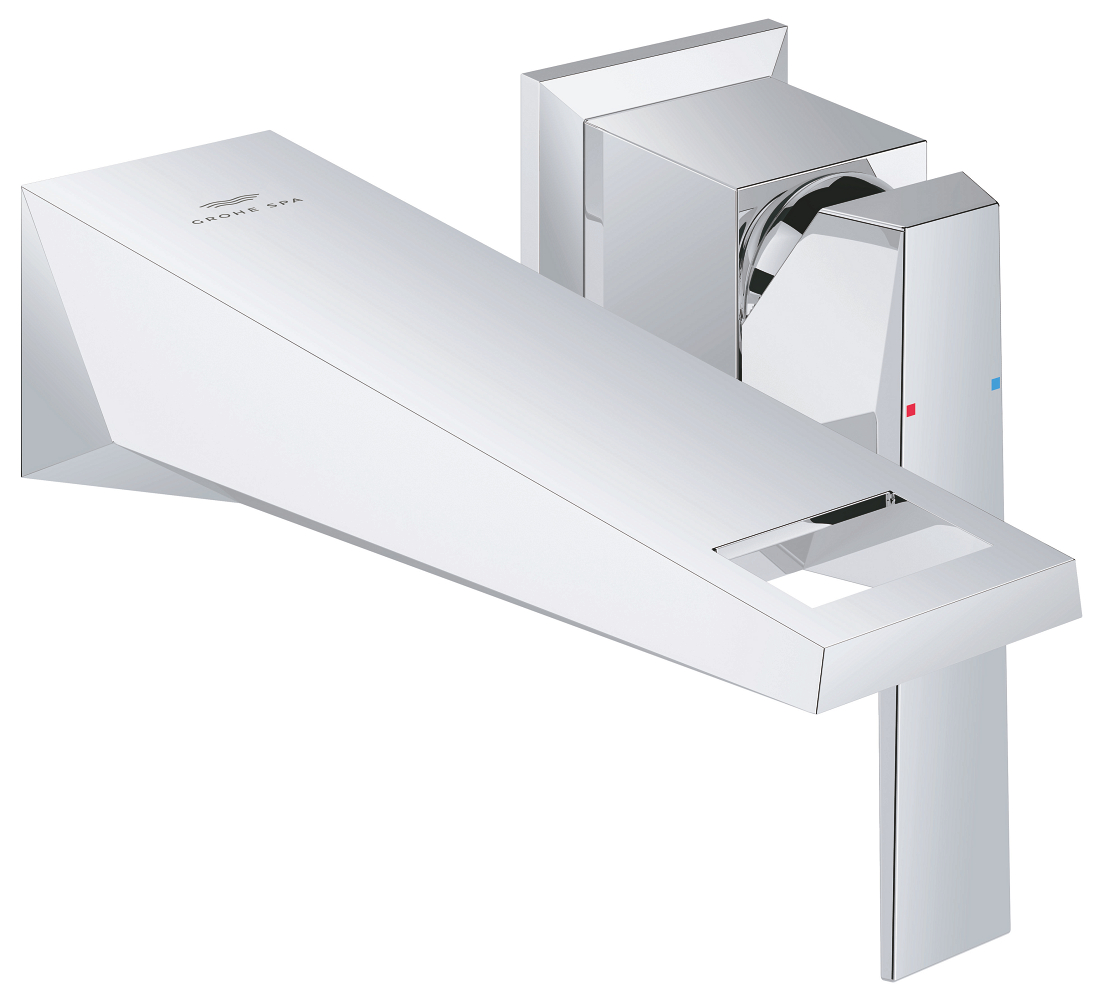

Two-hole basin mixer M-Size
Model: 29402000
Allure Brilliant

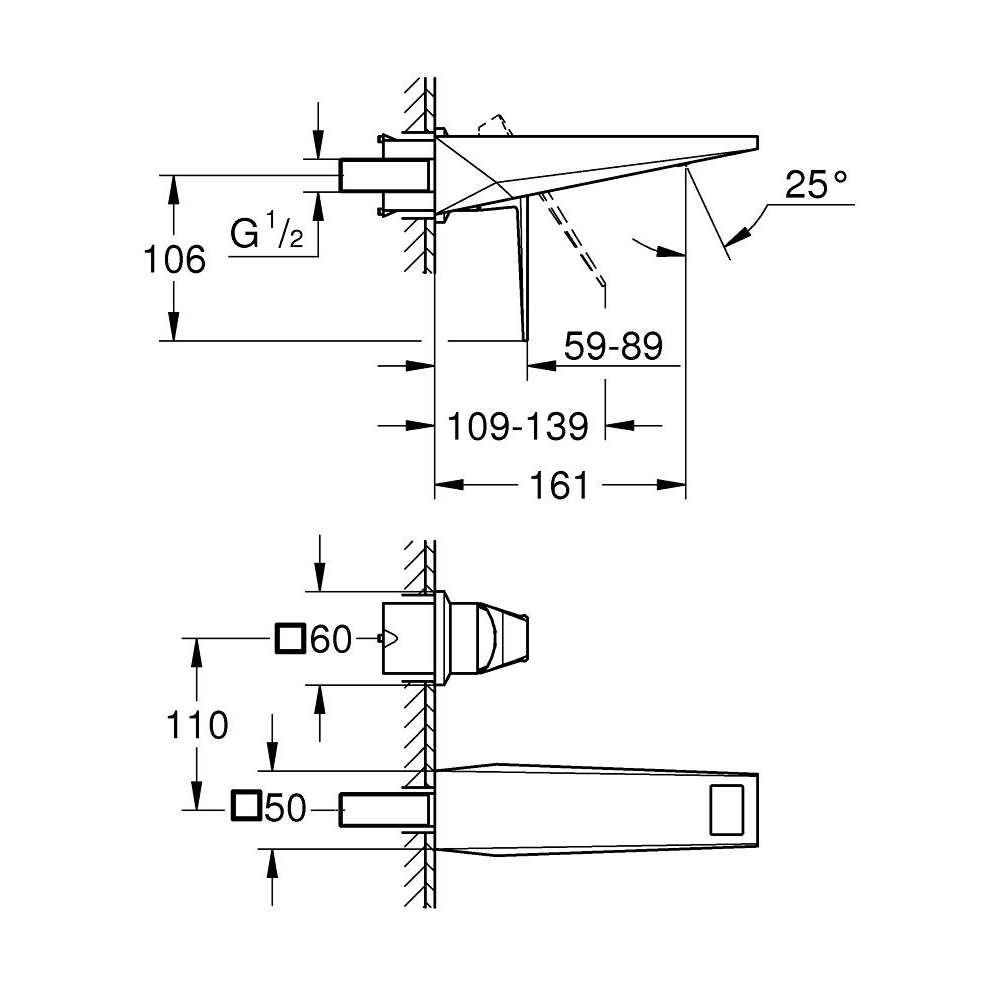

Dimensional Drawing
Technical Details
Product Description
wall mounted
without concealed body
for use with rough-in set 23 200
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
spout with integrated mousseur
centre distance 110 mm
projection 161 mm
Style
Cosmopolitan
Installation Type
Wall mounted concealed
Height (mm)
100.0
Length (mm)
390.0
Width (mm)
200.0
Net Weight (kg)
2.285
Gross Weight (kg)
2.285
Colors & Finishes
Chrome
Collection
Allure Brilliant
Segment
G5
