Two-hole basin mixer joystick
Model: 29406000
Atrio New Classic

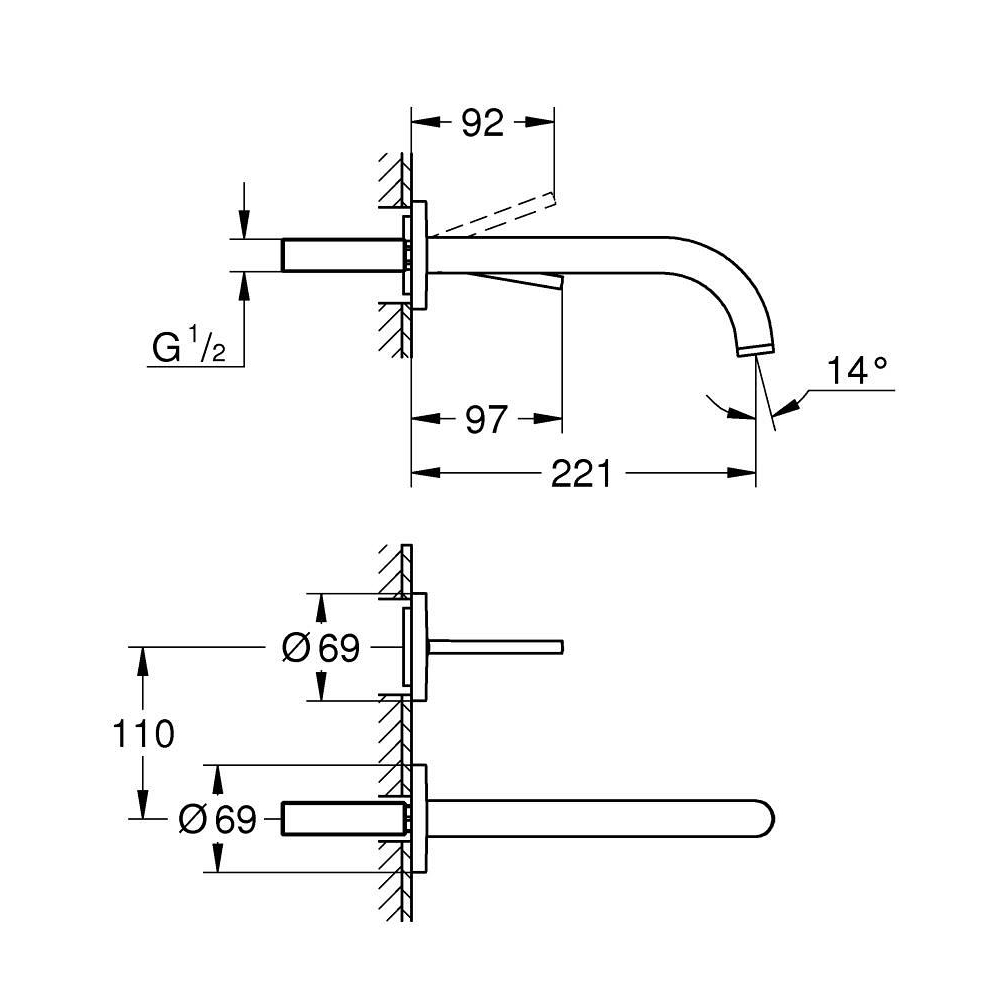

Dimensional Drawing
Technical Details
Product Description
wall mounted
without concealed body
trim set for Joystick mixer rough-in set 23 429 000
GROHE FeatherControl Joystick cartridge
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
centre distance 110 mm
projection 221 mm
Style
Contemporary
Installation Type
Wall mounted concealed
Height (mm)
75.006
Length (mm)
345.008
Width (mm)
164.998
Net Weight (kg)
1.18
Gross Weight (kg)
1.18
Colors & Finishes
Chrome
Collection
Atrio New Classic
Segment
G5
