GROHE EcoJoy
Product Catalog

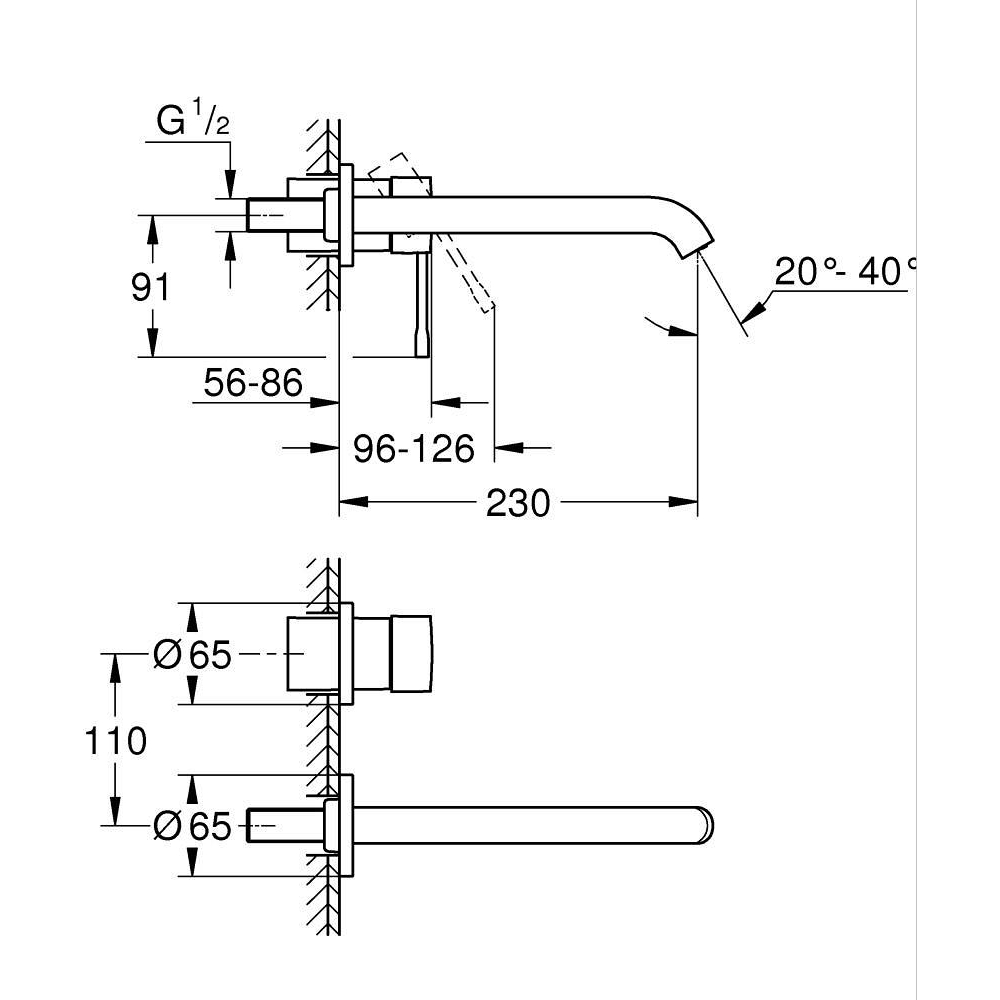

Dimensional Drawing
Technical Details
Product Description
wall mounted
trim set for use with rough-in set 23 571 000 / 32 635 000
without concealed body
metal escutcheon
metal lever
GROHE LongLife finish
mousseur 5.7 l/min
GROHE AquaGuide adjustable mousseur
centre distance 110 mm
projection 230 mm
Style
Cosmopolitan
Installation Type
Wall mounted concealed
Height (mm)
80.0
Length (mm)
340.0
Width (mm)
165.0
Net Weight (kg)
0.875
Gross Weight (kg)
0.875
Colors & Finishes
Warm sunset
Collection
Essence New
Segment
G4
Features & Technologies
GROHE StarLight (non-chrome)
GROHE SilkMove
AquaGuide
