GROHE StarLight
Product Catalog

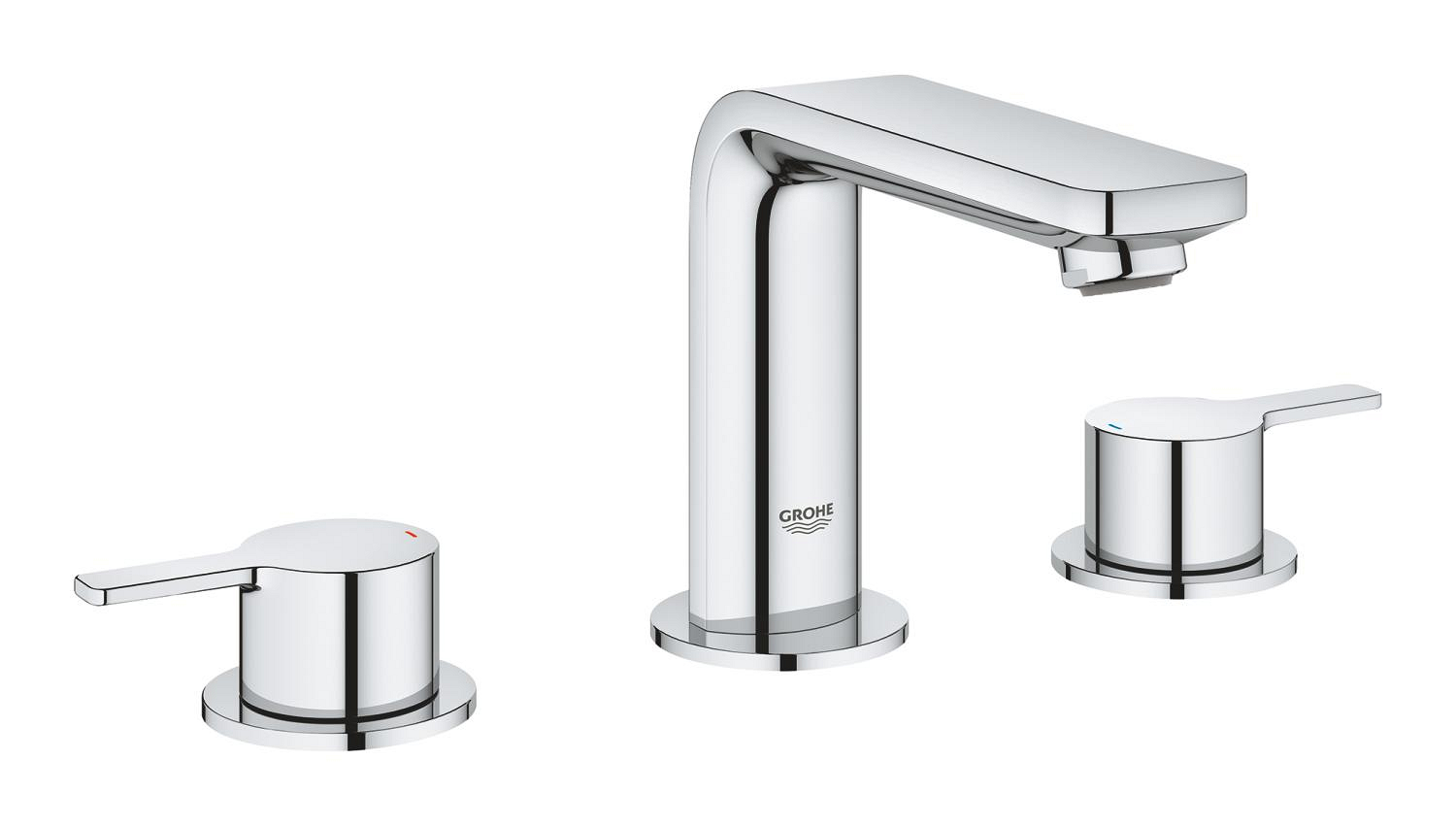

3-hole basin mixer M-Size
Model: 20304001
Lineare New

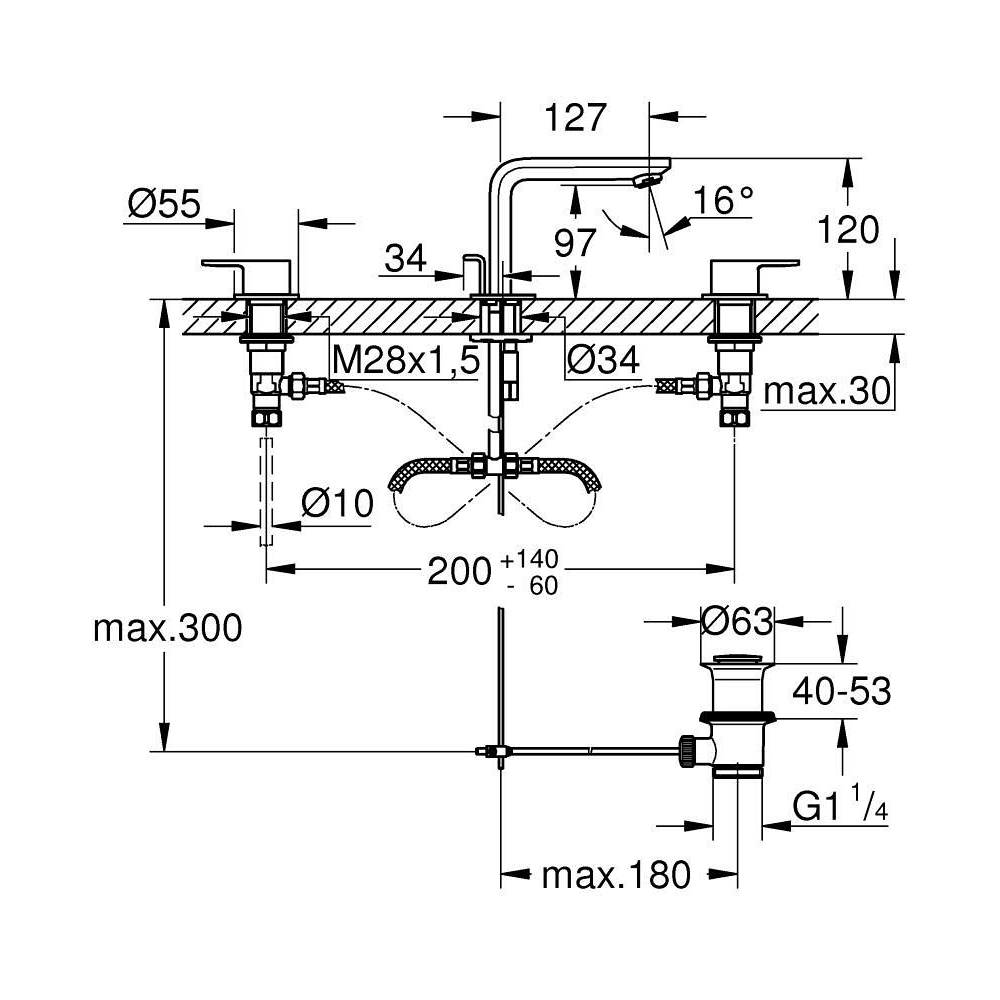

Dimensional Drawing
Technical Details
Product Description
metal lever
ceramic headparts 1/2", 90°
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
GROHE FastFixation installation system
pop-up waste set 1 1/4"
pressure-proof, flexible connection hoses
between spout and side valves
union nut 1/2" x 10.5 mm
Style
Cosmopolitan
Installation Type
Deck mounted
Height (mm)
74.0
Length (mm)
560.0
Width (mm)
226.0
Net Weight (kg)
2.54
Gross Weight (kg)
2.54
Colors & Finishes
Chrome
Collection
Lineare New
Segment
G4
Features & Technologies
GROHE EcoJoy
Pop-up Waste
SpeedClean (Bathroom tap)
Short Spout (Bathroom)
