GROHE EcoJoy
Product Catalog
2-hole basin mixer L-Size
Model: 23444DC1
Lineare New

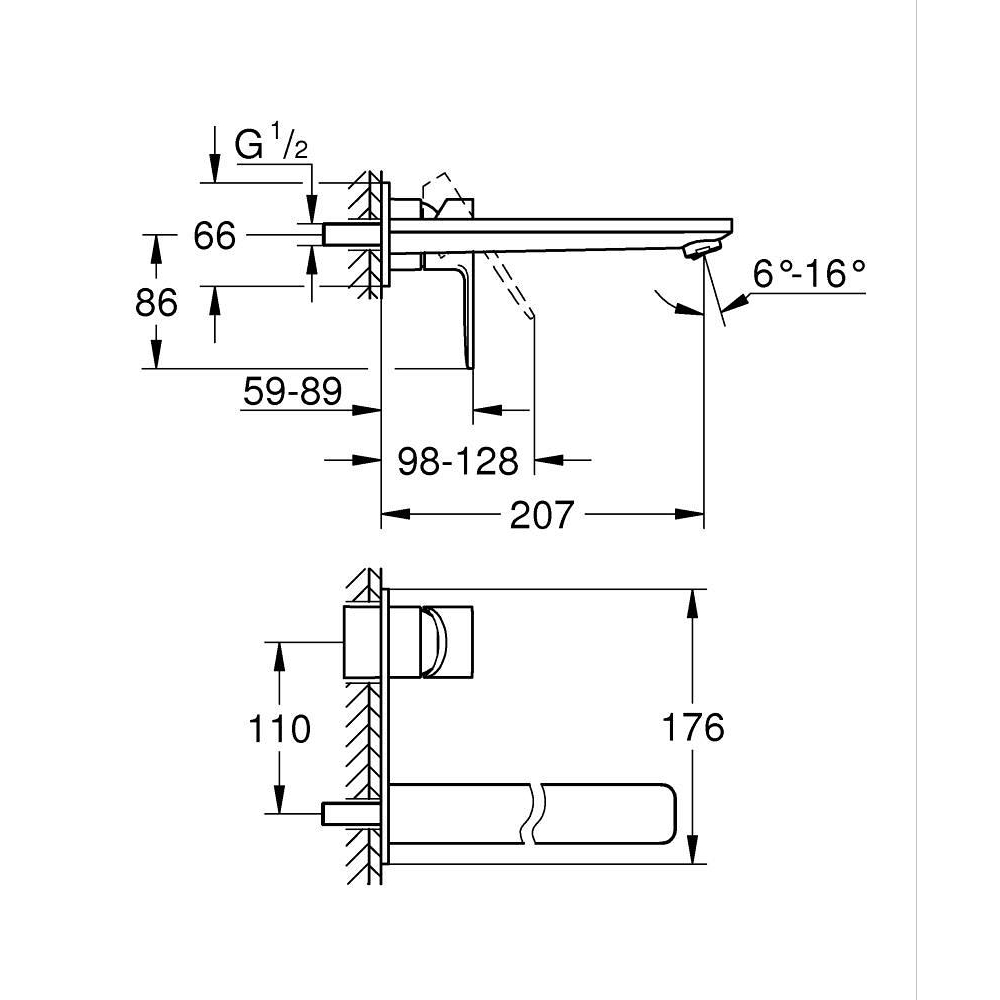

Dimensional Drawing
Technical Details
Product Description
wall mounted
trim set for use with rough-in set 23 571 000 / 32 635 000
without concealed body
metal escutcheon
metal lever
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
GROHE AquaGuide adjustable mousseur
centre distance 110 mm
projection 207 mm
Style
Cosmopolitan
Installation Type
Wall mounted concealed
Height (mm)
100.0
Length (mm)
390.0
Width (mm)
200.0
Net Weight (kg)
1.74
Gross Weight (kg)
1.74
Colors & Finishes
Supersteel
Collection
Lineare New
Segment
G4
Features & Technologies
SuperSteel
AquaGuide
