GROHE EcoJoy
Product Catalog

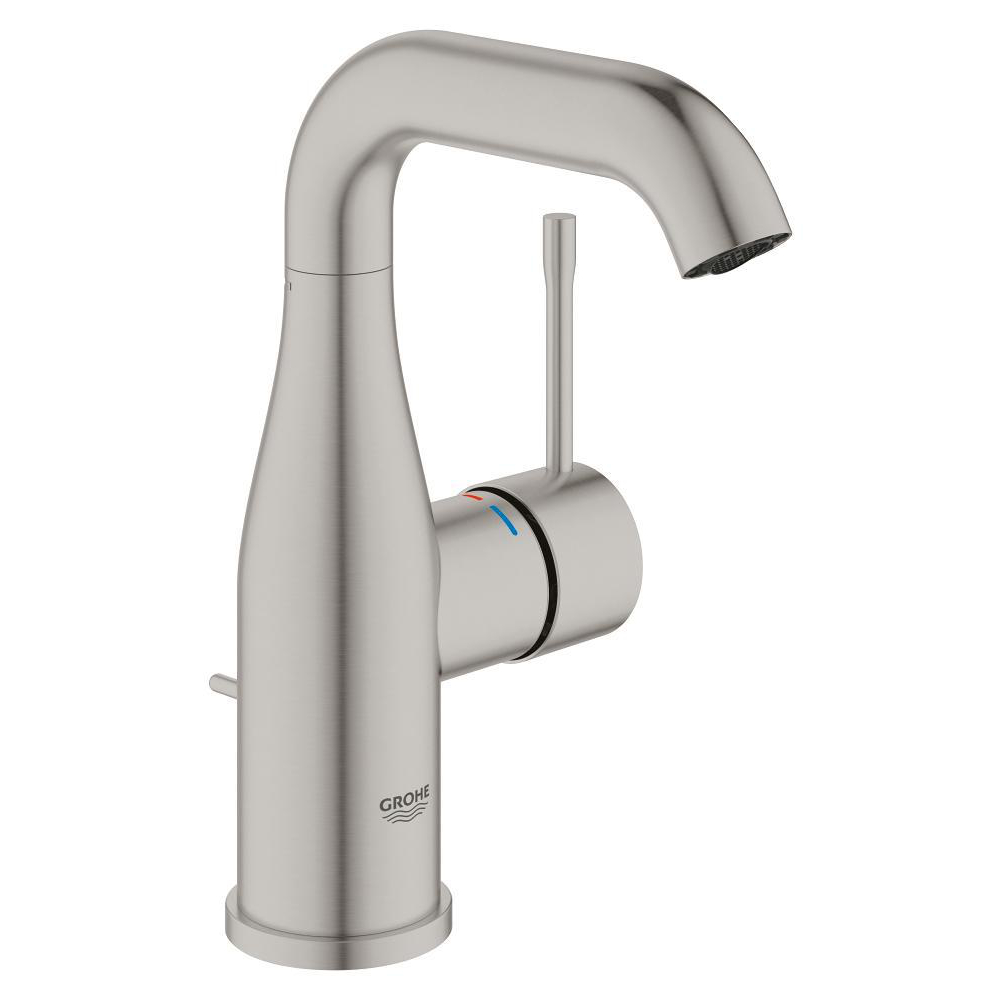

Single-lever basin mixer 1/2" M-Size
Model: 23462DC1
Essence New

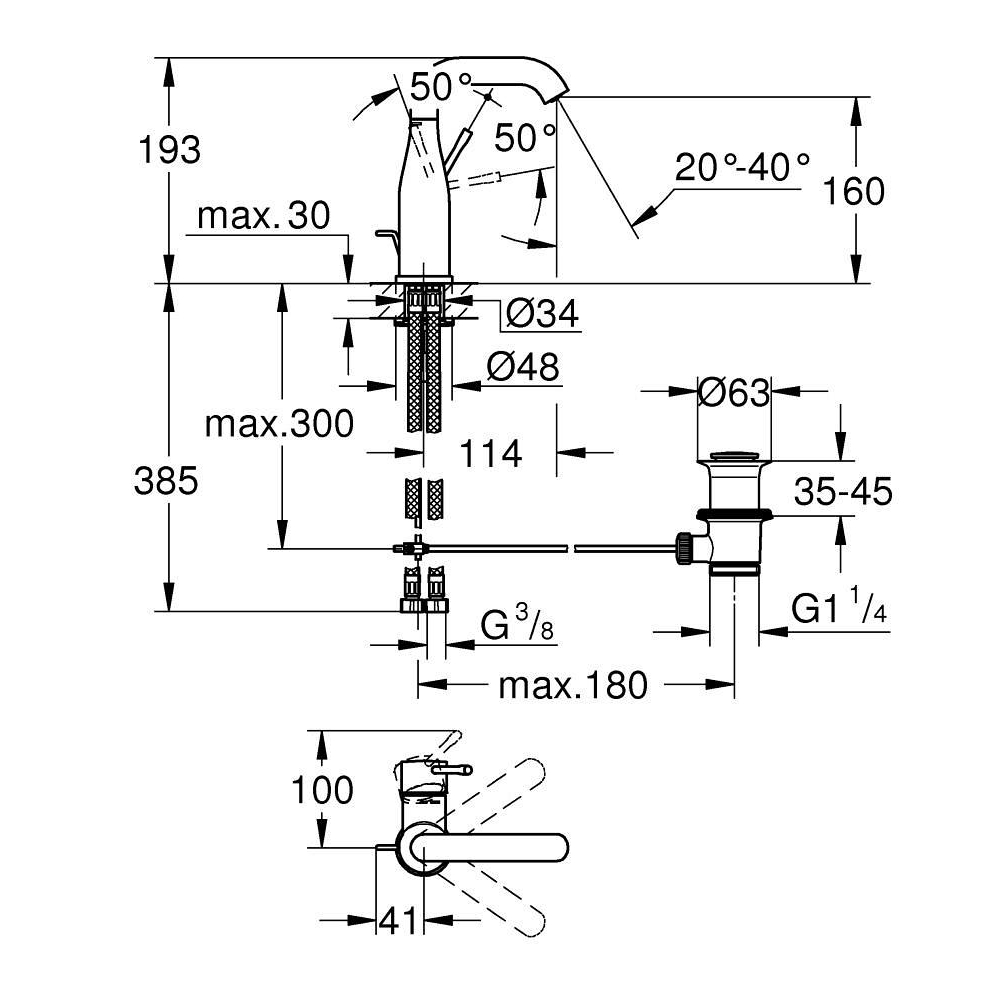

Dimensional Drawing
Technical Details
Product Description
monobloc installation
metal lever
28 mm ceramic cartridge
with GROHE SilkMove
with temperature limiter
GROHE LongLife finish
mousseur 5.7 l/min
GROHE AquaGuide adjustable mousseur
GROHE FastFixation Plus installation system
swivel spout with mousseur
and stop limiter
pop-up waste set 1 1/4"
flexible connection hoses
min. recommended pressure 1.0 bar
Style
Cosmopolitan
Installation Type
Deck mounted
Height (mm)
100.0
Length (mm)
335.001
Width (mm)
194.996
Net Weight (kg)
1.815
Gross Weight (kg)
1.815
Colors & Finishes
Supersteel
Collection
Essence New
Segment
G4
Features & Technologies
Pop-up Waste
AquaGuide
Swivel Range 0/150/360
Medium High Spout (Bathroom)
