GROHE EcoJoy
Product Catalog
Single-lever basin mixer 1/2" M-Size
Model: 23462DL1
Essence New

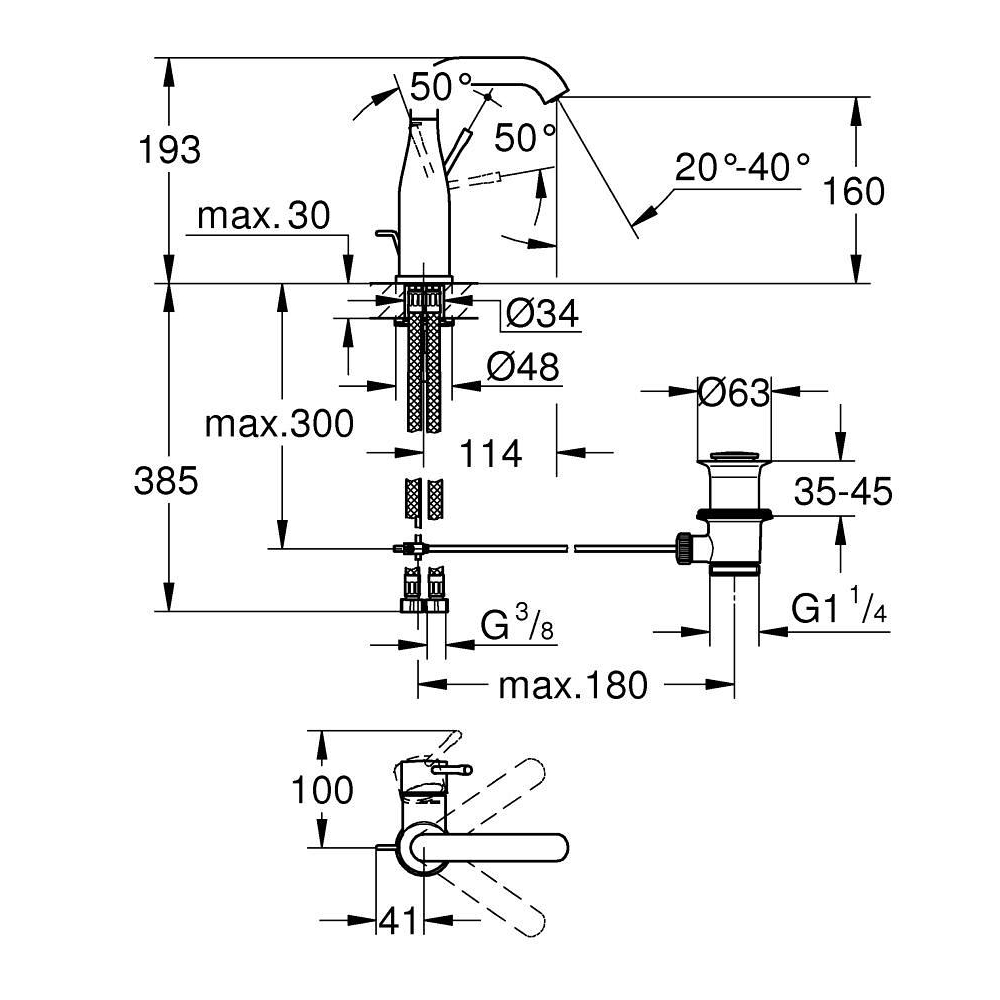

Dimensional Drawing
Technical Details
Product Description
monobloc installation
metal lever
28 mm ceramic cartridge
with GROHE SilkMove
with temperature limiter
GROHE LongLife finish
mousseur 5.7 l/min
GROHE AquaGuide adjustable mousseur
GROHE FastFixation Plus installation system
swivel spout with mousseur
and stop limiter
pop-up waste set 1 1/4"
flexible connection hoses
Style
Cosmopolitan
Installation Type
Deck mounted
Height (mm)
115.0
Length (mm)
370.0
Width (mm)
205.0
Net Weight (kg)
1.825
Gross Weight (kg)
1.825
Colors & Finishes
Brushed warm sunset
Collection
Essence New
Segment
G4
Features & Technologies
Pop-up Waste
AquaGuide
Swivel Range 0/150/360
Medium High Spout (Bathroom)
