24064001

Single-lever mixer with 2-way diverter

Model: 24064001

Lineare New

CAD File

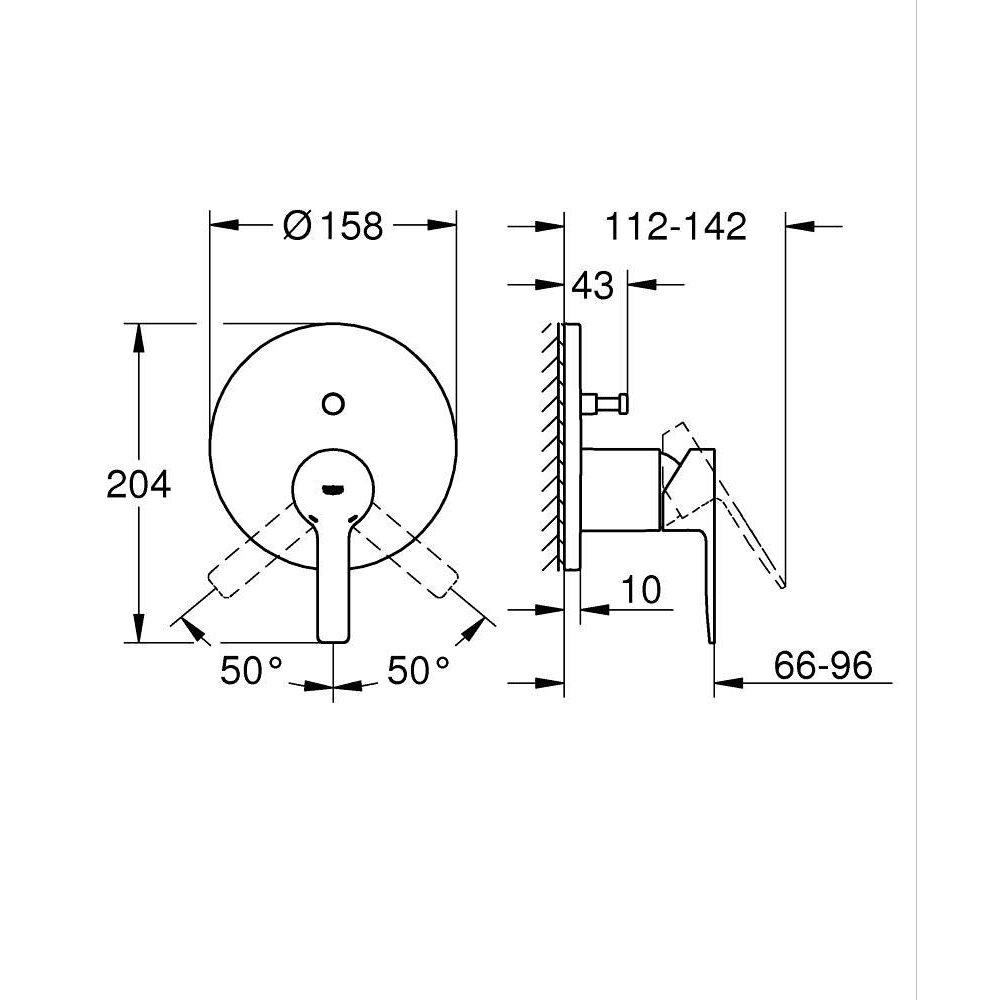

Dimensional Drawing
Installation Manual

Dimensional Drawing

Technical Details

Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604) GROHE SilkMove 46 mm ceramic cartridge GROHE LongLife finish wall escutcheon with GROHE FastFixation (covered escutcheon- and shaft sealing, covered fixing) metal escutcheon, retroactively 6° adjustable metal lever automatic 2-way diverter without roughing-in set 35 600/35 604 (please order separately) flow performance: outlet B = 27 l/min, outlet C = 27 l/min
Style
Cosmopolitan
Installation Type
Wall mounted concealed
Height (mm)
243.0
Length (mm)
200.0
Width (mm)
180.0
Net Weight (kg)
1.81
Gross Weight (kg)
1.81
Colors & Finishes
Chrome
Collection
Lineare New
Segment
G4

Features & Technologies

GROHE QuickFix (wallmounted)

GROHE StarLight

GROHE SilkMove
