GROHE QuickFix (wallmounted)
Product Catalog
Thermostatic shower mixer for 2 outlets with integrated shut off/diverter valve
Model: 24154000
Grohtherm Cube
Dimensional Drawing
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
GROHE TurboStat - compact cartridge with wax thermoelement
GROHE LongLife finish
wall escutcheon with GROHE FastFixation
(covered escutcheon- and shaft sealing, covered fixing)
metal escutcheon, retroactively 6° adjustable
printed head and hand shower symbol
GROHE SafeStop - safety button at 38°C
GROHE SafeStop Plus - optional temperature limiter at 43°C or 46°C included
GROHE AquaDimmer, integrated shut off/diverter valve
without roughing-in set 35 600/35 604 (please order separately)
flow performance:
outlet B = 27 l/min
outlet C = 30 l/min
Style
Cosmopolitan
Installation Type
Wall mounted concealed
Height (mm)
180.0
Length (mm)
250.0
Width (mm)
200.0
Net Weight (kg)
2.055
Gross Weight (kg)
2.055
Colors & Finishes
Chrome
Collection
Grohtherm Cube
Segment
G4
Features & Technologies
GROHE StarLight
GROHE TurboStat
SafeStop
AquaDimmer
Product Recommendation
Acacia Evolution deck-mounted B&S basin mixer Warm Sunset
Model: FFAS1300-601DA0BT0

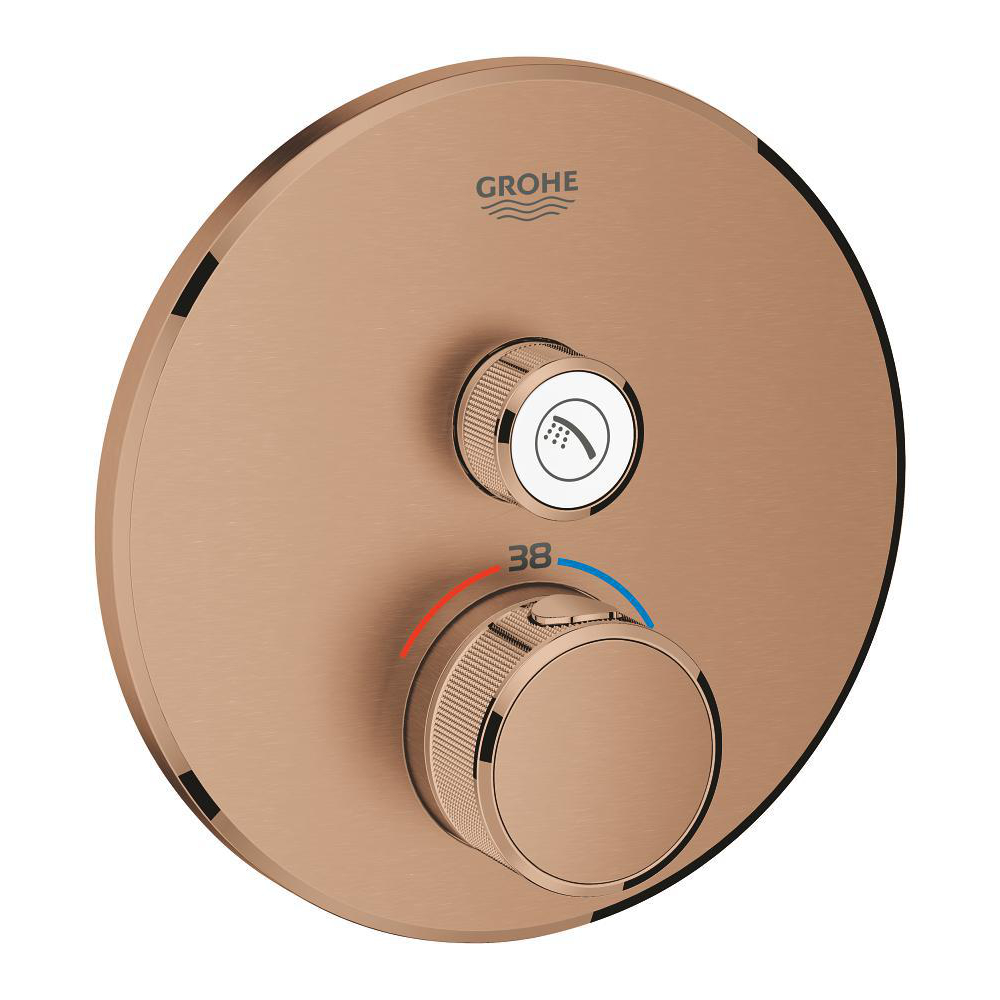

Thermostat for concealed installation with one valve
