Ceiling shower 2 sprays including rough-in
Model: 26733000

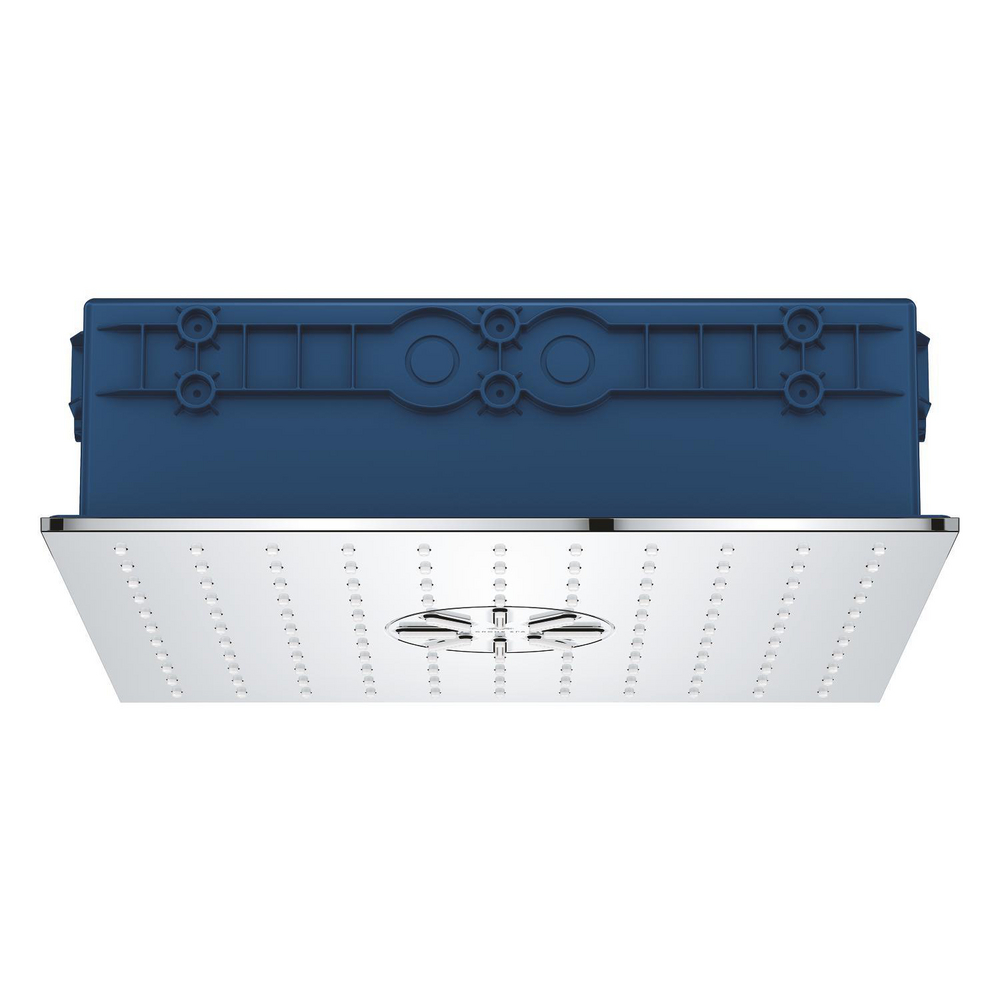

Rainshower AQUA

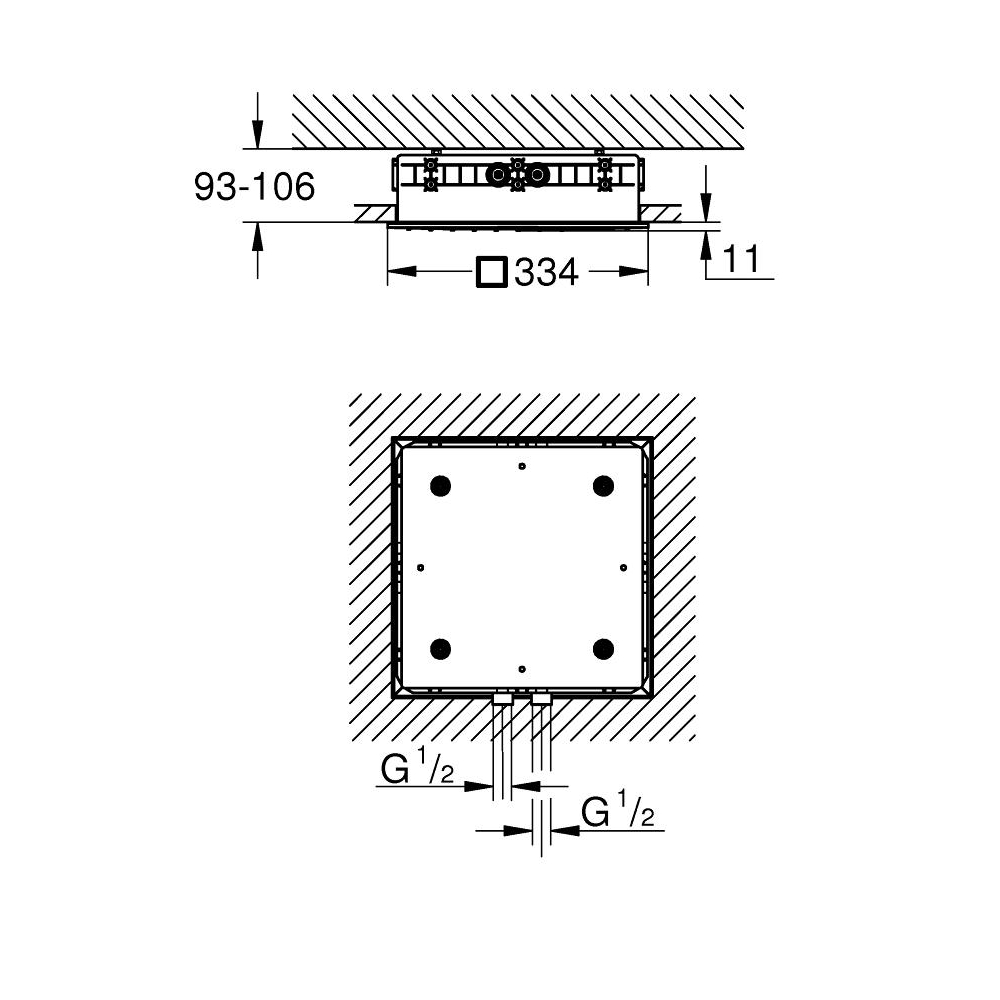

Dimensional Drawing
Technical Details
Product Description
·spray patterns:
·GROHE PureRain, ActiveRain
·including concealed body, mounting material and sealing material for further combinations
·334 x 334 mm
·spray plate chrome
·connection threads 1/2"
·GROHE DreamSpray perfect spray pattern
·GROHE Long-Life finish
·SpeedClean anti-lime system
·min. recommended pressure 1.0 bar
·maximum flow rate (at 3 bar): 20 + 16 l/min (with non-restricted flow)
