Sink mixer with SmartControl
Model: 31615AL0
Essence SmartControl

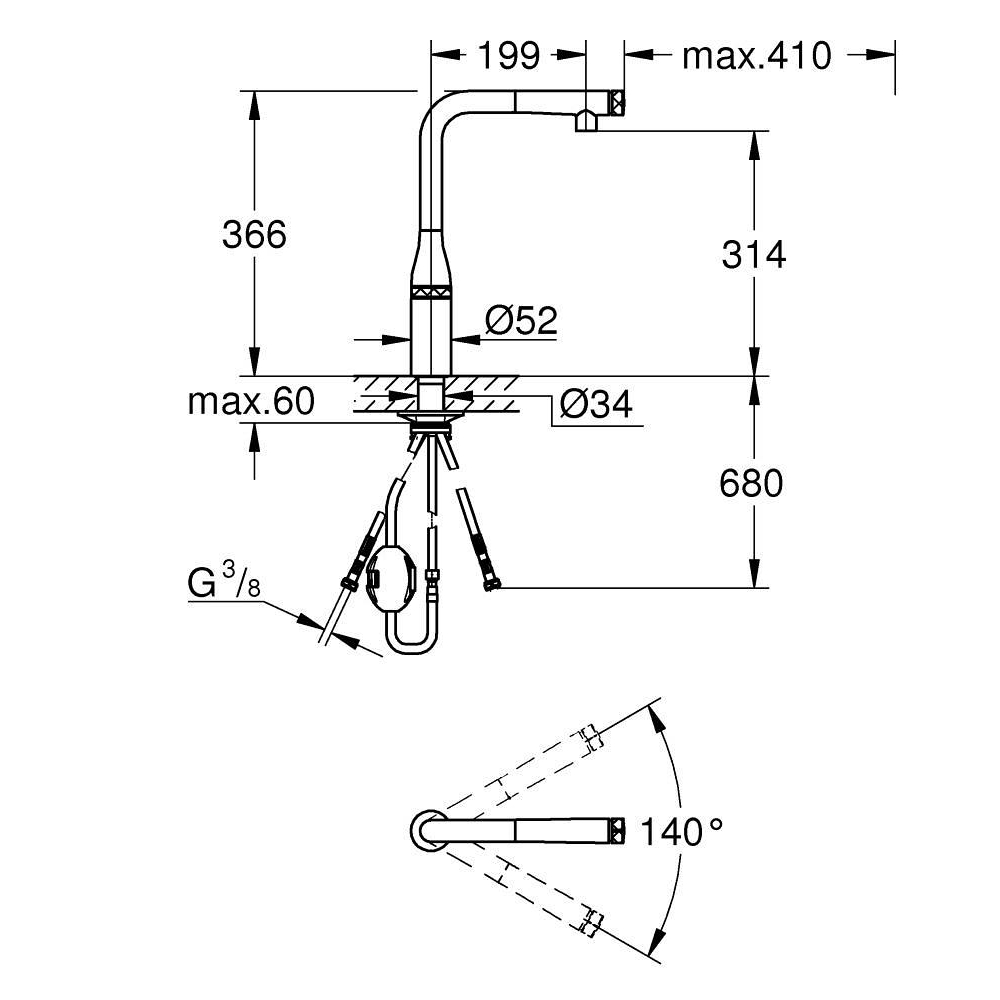

Dimensional Drawing
Technical Details
Product Description
monobloc installation
GROHE LongLife finish
Pull-Out spout for greater flexibility
laminar spray
material: metal
MagneticDocking guarantees easy retraction and smooth docking of the spray head back to the starting position
GROHE SmartControl - push for ON-OFF, turn for volume adjustment from minimum to full flow
temperature adjustment by turning of mixing valve on body
swivel tubular spout
swivel area 140°
protected against backflow
flexible connection hoses
metal fixation set
Protected Water Ways no contact of water with lead or nickel inside the tap
maximum flow rate (at 3 bar): 10 l/min
Style
Contemporary
Installation Type
Deck mounted
Height (mm)
65.0
Length (mm)
765.0
Width (mm)
315.0
Net Weight (kg)
3.445
Gross Weight (kg)
3.445
Colors & Finishes
Brushed hard graphite
Collection
Essence SmartControl
Segment
G5
Features & Technologies
GROHE Magnetic Docking
GROHE QuickFix Plus (kitchen tap)
Pull-Out Spray Head
GROHE SmartControl (kitchen)
