Standard Spout (Bathroom)
Product Catalog

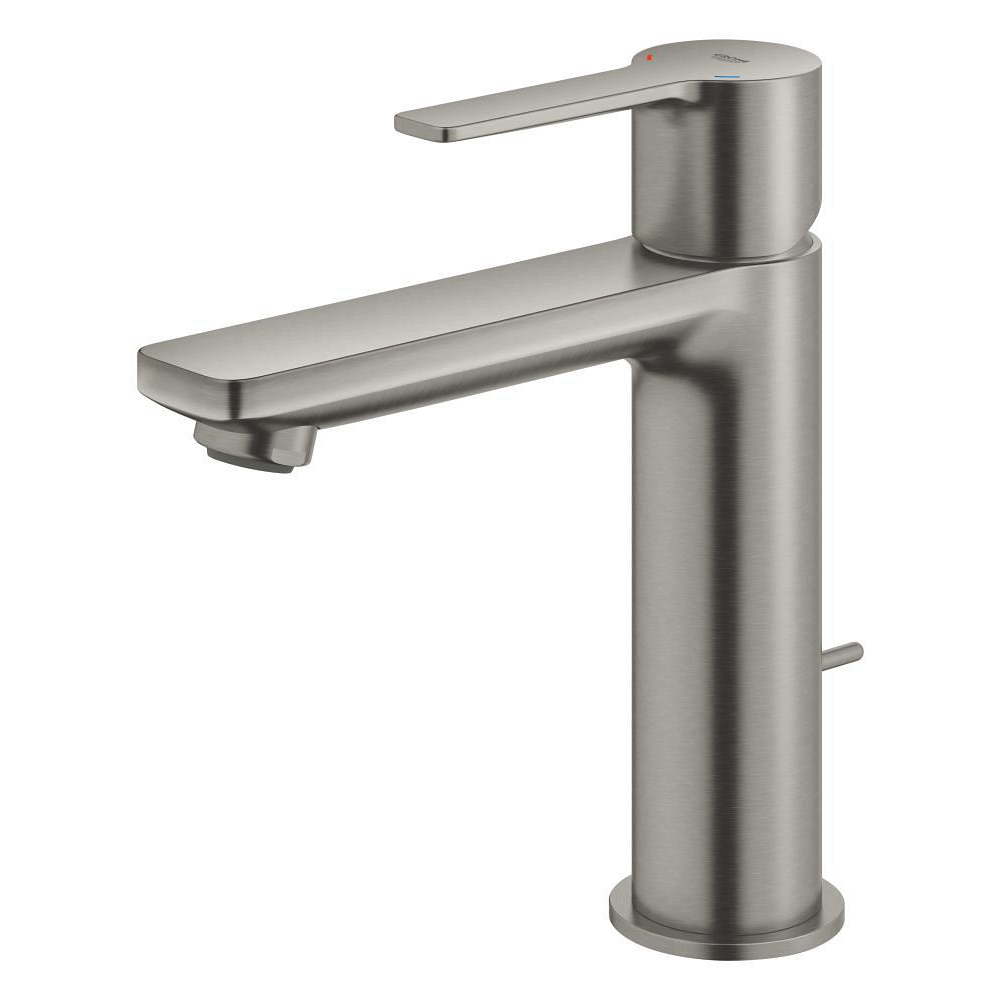

Single-lever basin mixer S-Size
Model: 32114DC1
Lineare New

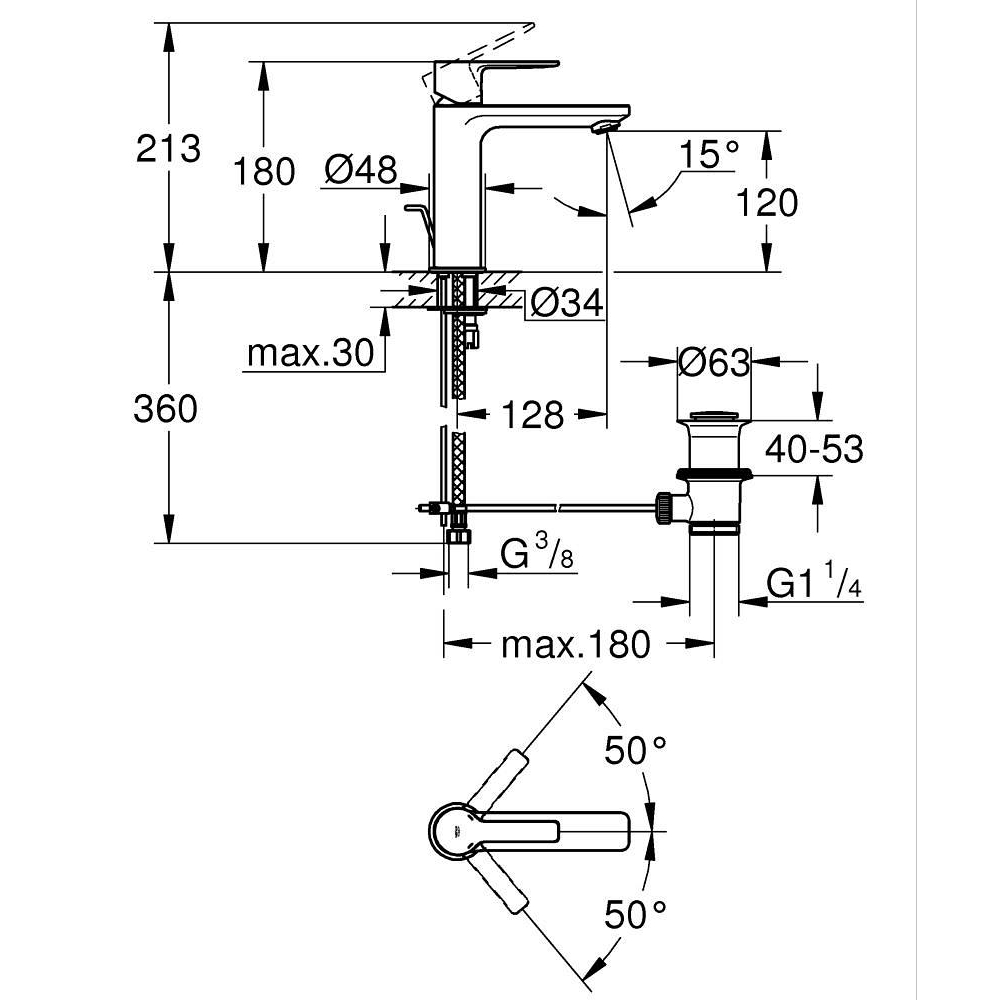

Dimensional Drawing
Technical Details
Product Description
monobloc installation
metal lever
28 mm ceramic cartridge
with GROHE SilkMove
with temperature limiter
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
SpeedClean mousseur
GROHE FastFixation Plus installation system
pop-up waste set 1 1/4"
flexible connection hoses
Style
Cosmopolitan
Installation Type
Deck mounted
Height (mm)
80.0
Length (mm)
375.0
Width (mm)
225.0
Net Weight (kg)
1.7
Gross Weight (kg)
1.7
Colors & Finishes
Supersteel
Collection
Lineare New
Segment
G5
Features & Technologies
GROHE EcoJoy
SuperSteel
GROHE SilkMove
Pop-up Waste
