Smooth Body
Product Catalog
Single-lever basin mixer 1/2" XL-Size
Model: 32901AL1
Essence New

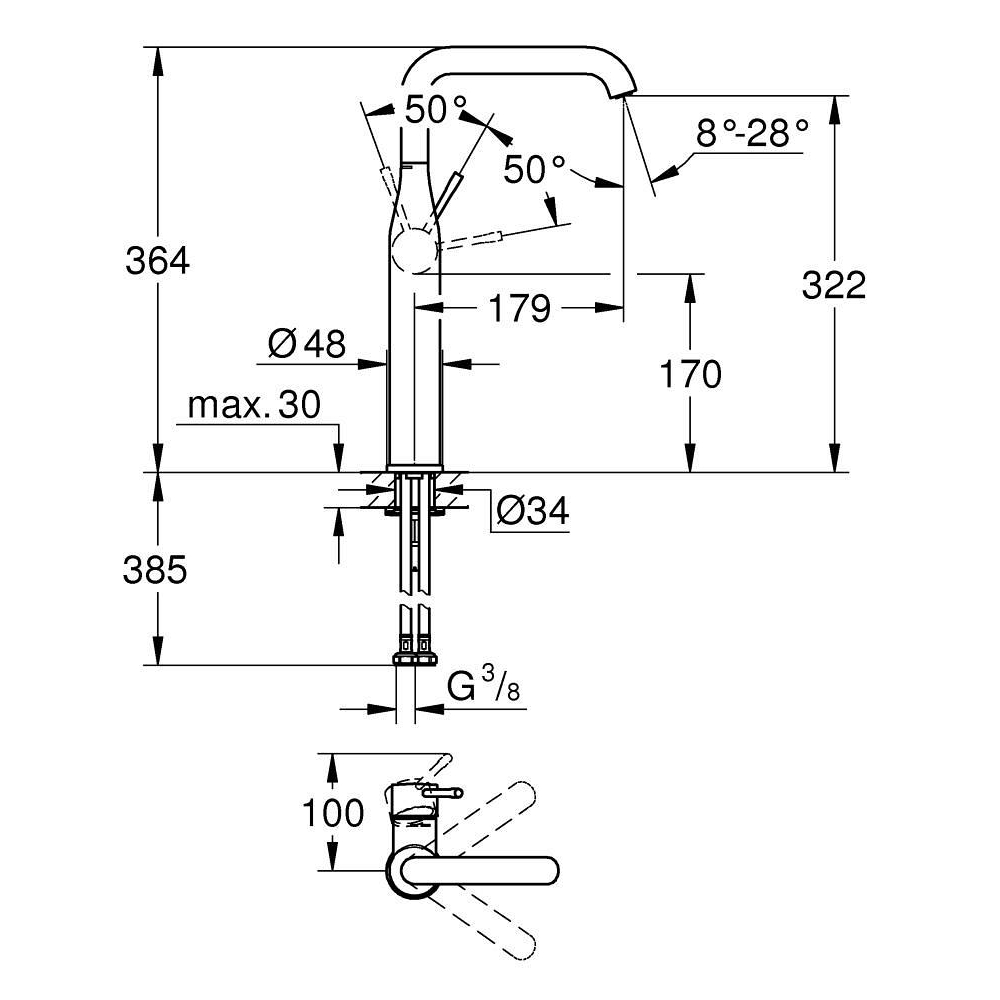

Dimensional Drawing
Technical Details
Product Description
monobloc installation
metal lever
for free-standing basins
28 mm ceramic cartridge
with GROHE SilkMove
with temperature limiter
GROHE LongLife finish
GROHE AquaGuide adjustable mousseur
GROHE FastFixation Plus rapid installation system
swivel spout with mousseur
and stop limiter
smooth body
flexible connection hoses
maximum flow rate (at 3 bar): 6.6 l/min
Style
Cosmopolitan
Installation Type
Deck mounted
Height (mm)
85.0
Length (mm)
555.0
Width (mm)
205.0
Net Weight (kg)
2.105
Gross Weight (kg)
2.105
Colors & Finishes
Brushed hard graphite
Collection
Essence New
Segment
G4
Features & Technologies
GROHE EcoJoy
GROHE SilkMove
Swivel Range 0/150/360
Extra High Spout (Bathroom)
