GROHE TurboStat
Product Catalog

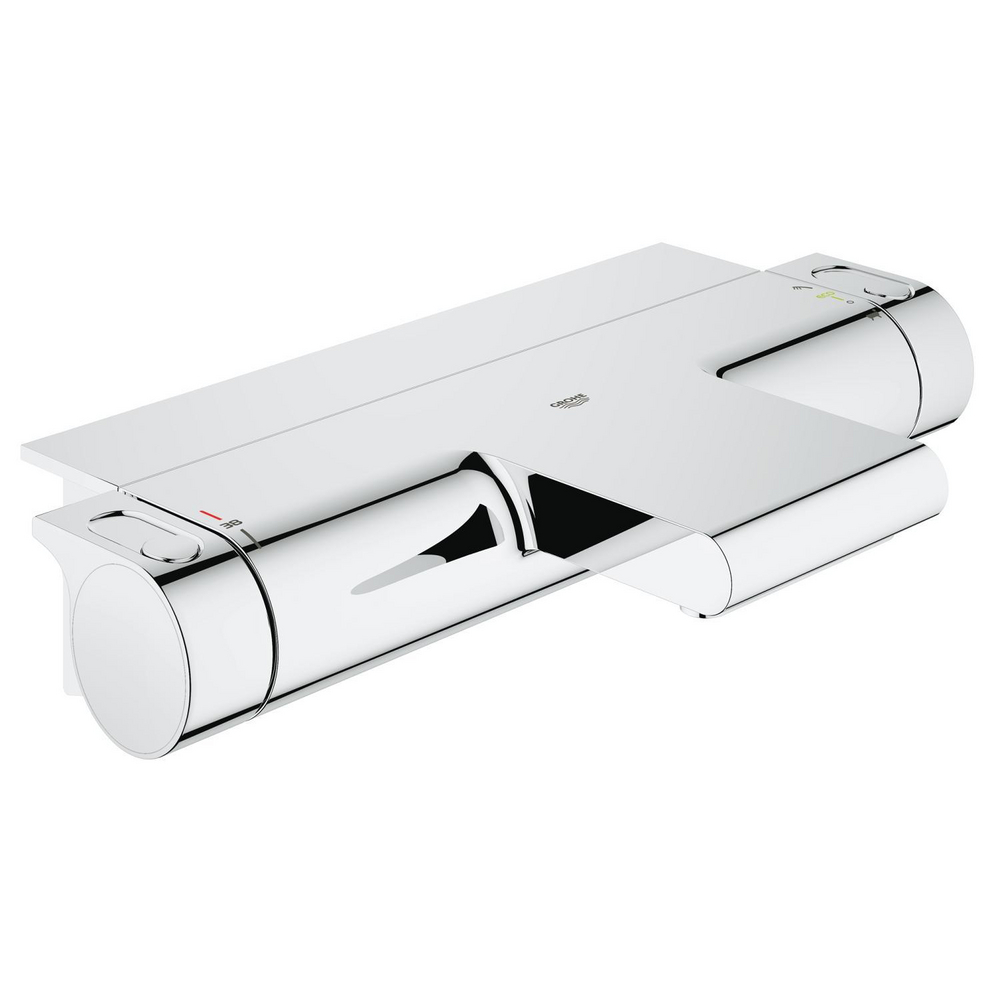

Thermostat bath/shower mixer
Model: 34464001
Grohtherm 2000 NEW

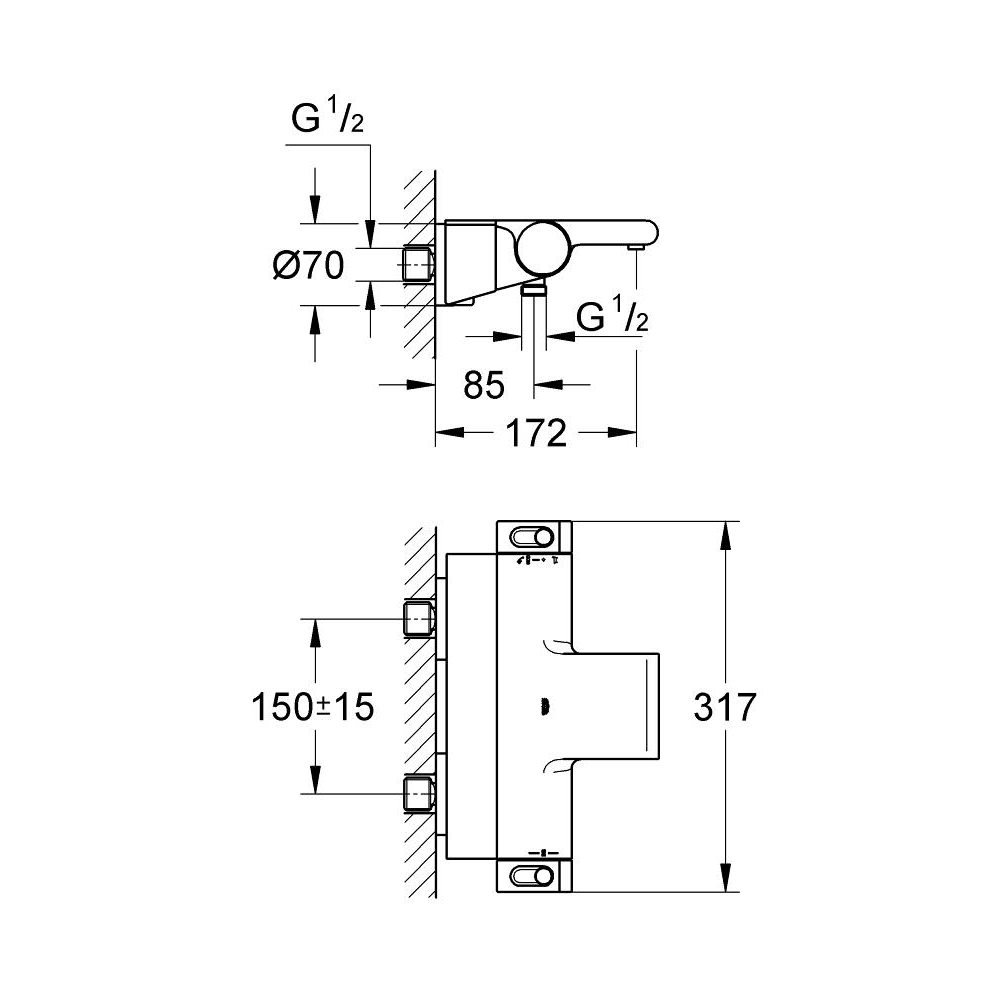

Dimensional Drawing
Technical Details
Product Description
wall mounted
100% GROHE CoolTouch consisting of safety
housing + S-unions with CoolTouch escutcheons
GROHE LongLife finish
GROHE Aqua Paddle ergonomically shaped handles
GROHE SafeStop - safety button at 38°C
GROHE SafeStop Plus - optional temperature limiter at 43°C included
GROHE TurboStat - compact cartridge with wax thermoelement
integrated mixed water shut off
GROHE AquaDimmer with multiple function:
- integrated GROHE EcoButton
(economy button with economy stop for shower)
- flow control
- diverter: bath/shower
shower bottom outlet 1/2"
spray pattern: GROHE XL Waterfall
flow straightener
built-in non return valves
dirt strainers
protected against backflow
covered S-unions, CoolTouch escutcheons with wall sealing
GROHE EasyReach shower tray
removable for easy cleaning
Style
Contemporary
Installation Type
Wall mounted exposed
Height (mm)
100.0
Length (mm)
420.0
Width (mm)
280.0
Net Weight (kg)
5.09
Gross Weight (kg)
5.09
Colors & Finishes
Chrome
Collection
Grohtherm 2000 NEW
Segment
G4
Features & Technologies
SafeStop
GROHE CoolTouch (Thermostat)
GROHE EasyReach
XL Waterfall
