GROHE EcoJoy
Product Catalog

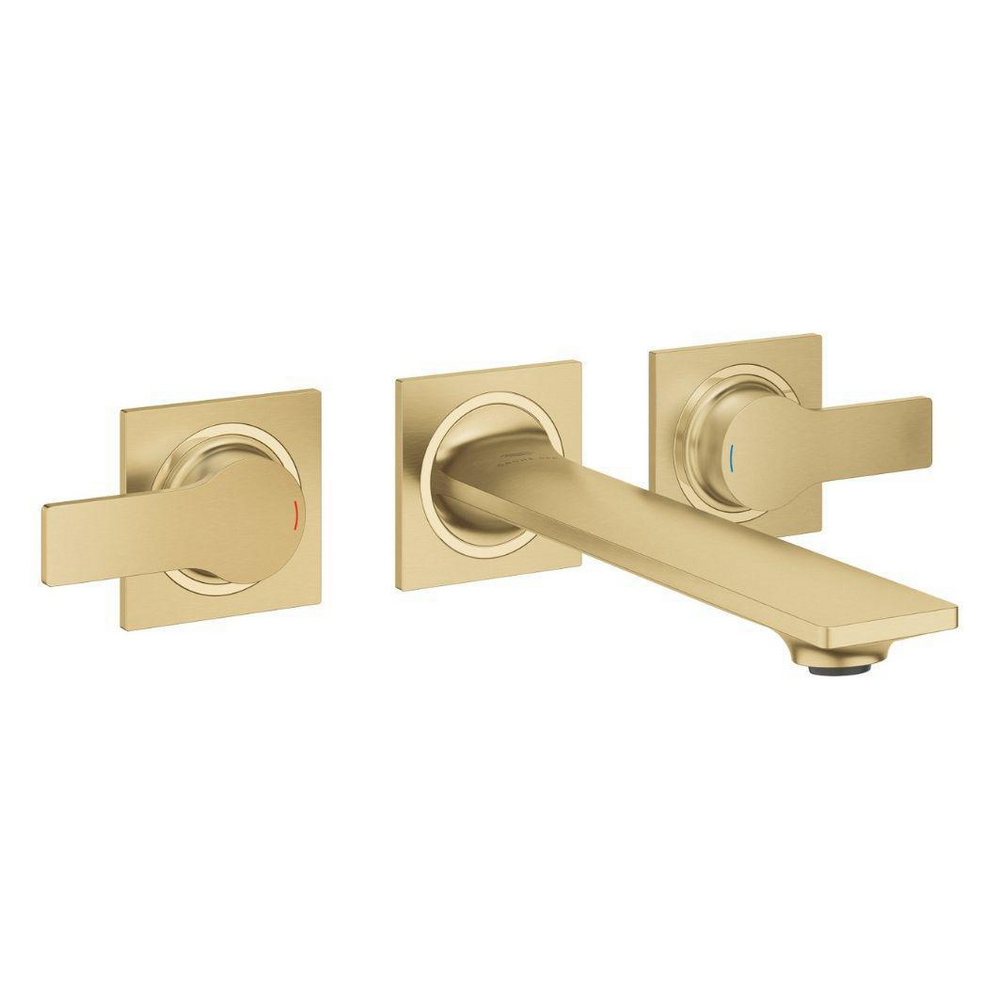

Three-hole basin mixer 1/2" M-Size
Model: 20193GN2
Allure New

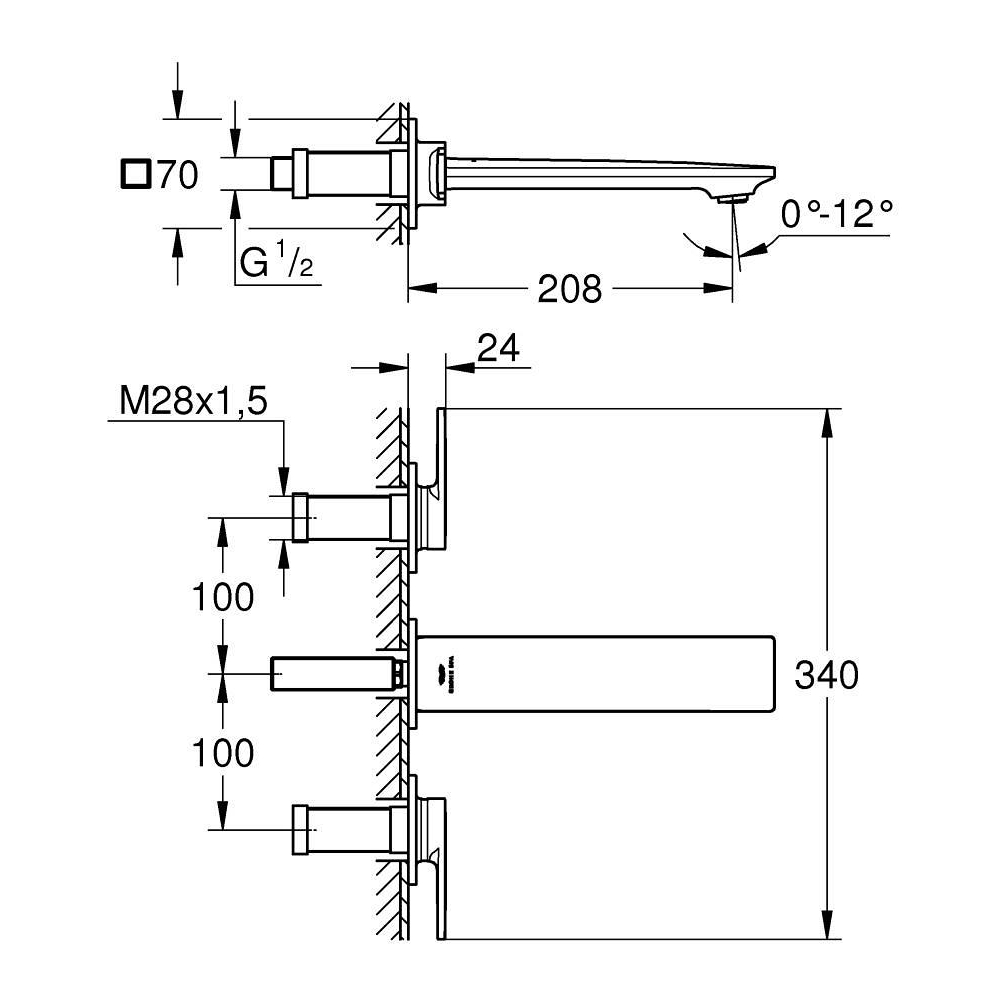

Dimensional Drawing
Technical Details
Product Description
wall mounted
with lever handles
to be used with rough-in set 29 025 002
valves hot/cold
with headparts 1/2" - 90°
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
Precision Control with haptic click feedback (optional)
GROHE AquaGuide adjustable slim air mousseur
projection 208 mm
without roughing-in set 29 025 002 (please order separately)
Style
Cosmopolitan
Installation Type
Wall mounted concealed
Height (mm)
100.0
Length (mm)
390.0
Width (mm)
200.0
Net Weight (kg)
1.975
Gross Weight (kg)
1.975
Colors & Finishes
Brushed cool sunrise
Collection
Allure New
Segment
G5
Features & Technologies
GROHE StarLight (non-chrome)
AquaGuide
Medium High Spout (Bathroom)
Precision Control
