GROHE EcoJoy
Product Catalog
Single-lever basin mixer 1/2" M-Size
Model: 24398AL0
Allure Brilliant Priv.Collec.

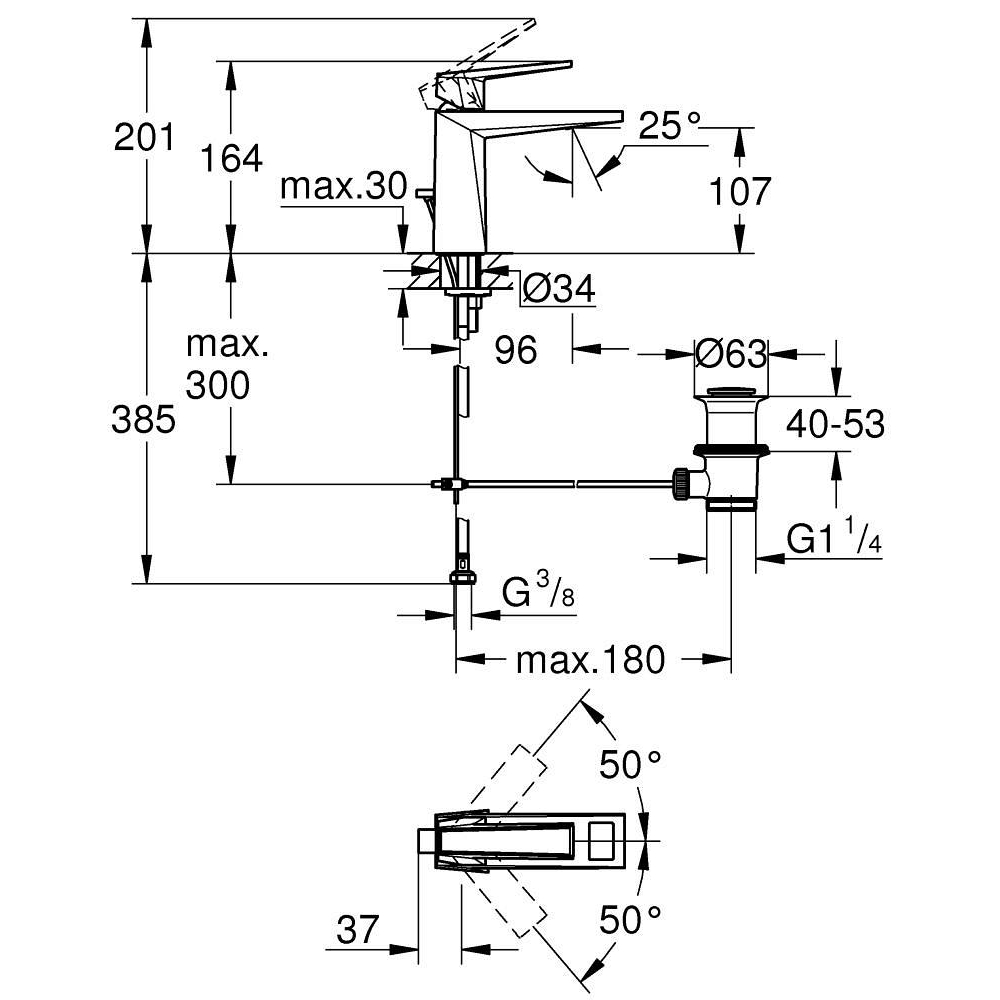

Dimensional Drawing
Technical Details
Product Description
lever with white Caesarstone inlay
monobloc installation
28 mm ceramic cartridge
with GROHE SilkMove
temperature limiter
GROHE LongLife finish
GROHE FastFixation installation system
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
spout with integrated mousseur
pop-up waste set 1 1/4"
flexible connection hoses
recommended pressure 1.0 - 5.0 bar
min. recommended pressure 1.0 bar
Style
Cosmopolitan
Installation Type
Deck mounted
Height (mm)
72.0
Length (mm)
550.0
Width (mm)
226.0
Net Weight (kg)
1.935
Gross Weight (kg)
1.935
Colors & Finishes
Brushed hard graphite
Collection
Allure Brilliant Priv.Collec.
Segment
G5
Features & Technologies
GROHE SilkMove
Pop-up Waste
Medium High Spout (Bathroom)
GROHE FastFixation (taps)
