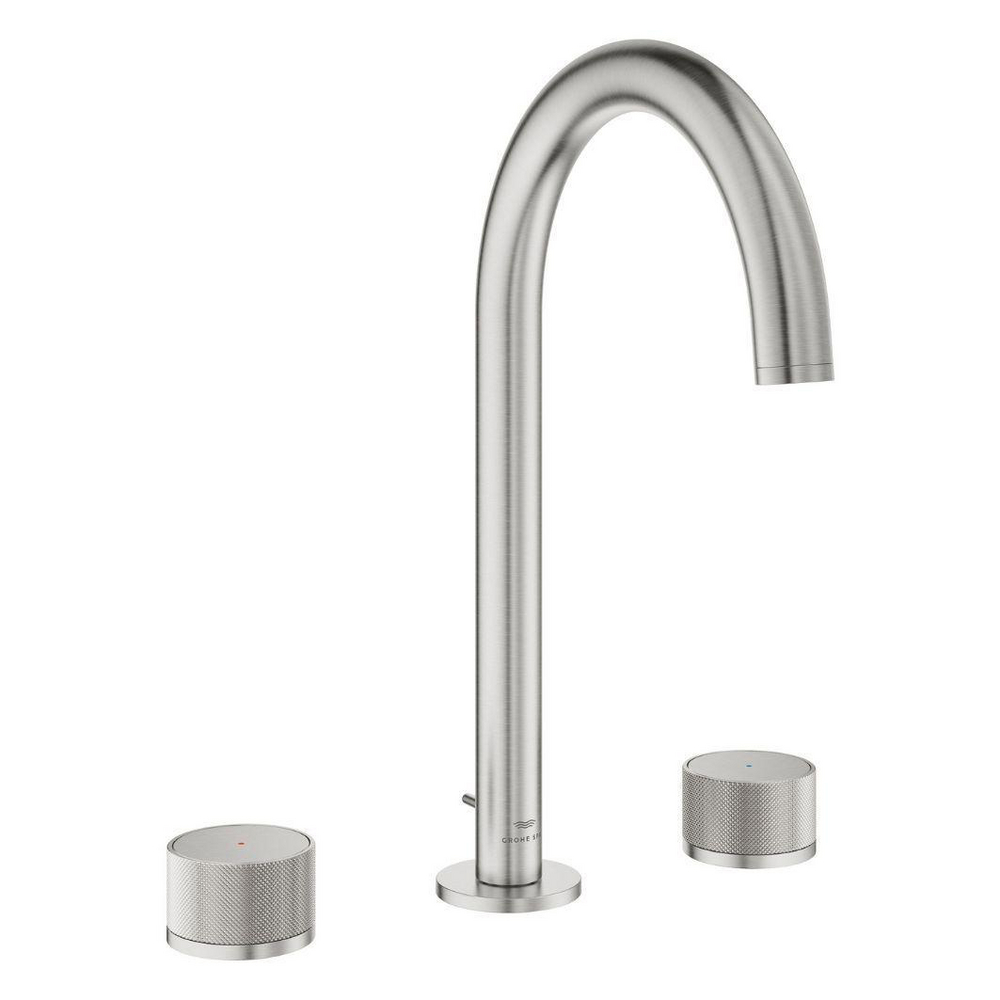

Three-hole basin mixer 1/2" L-Size
Model: 20595DC0
Atrio Private Collection

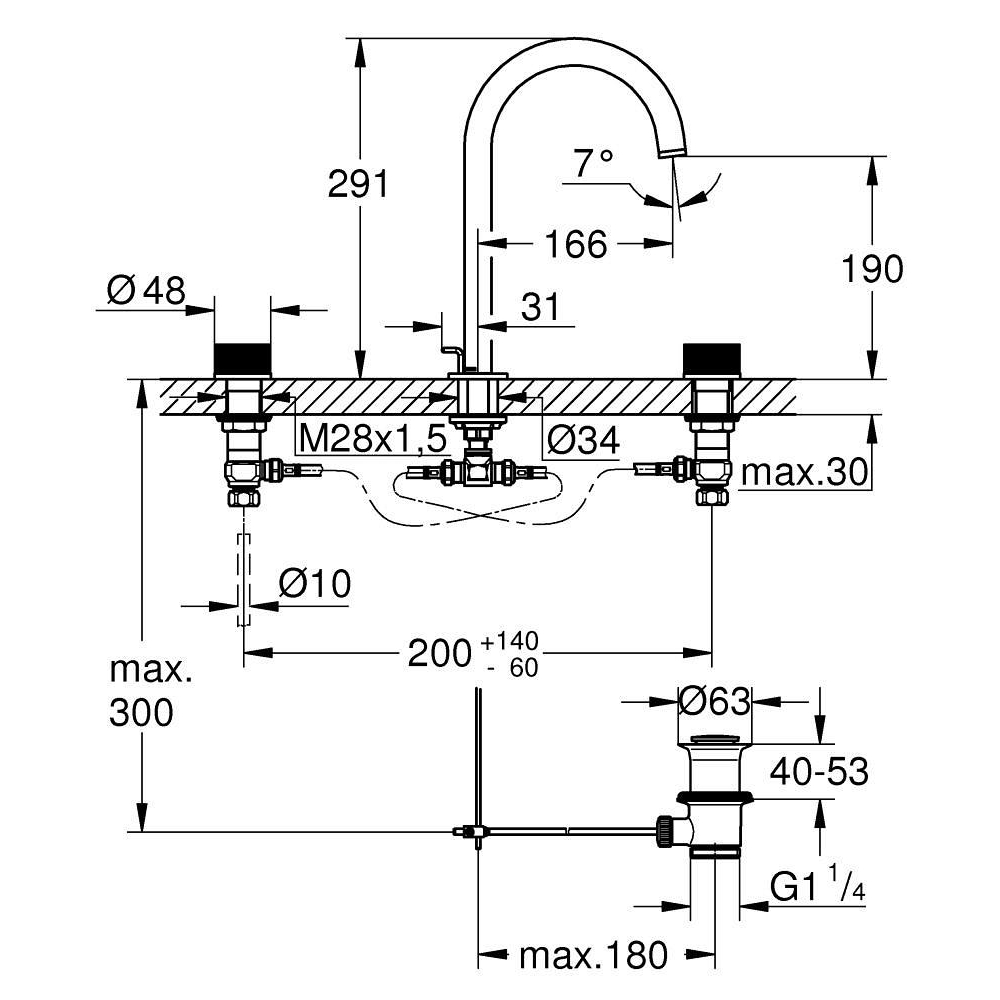

Dimensional Drawing
Technical Details
Product Description
ceramic headparts 1/2", 90°
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
swivel tubular spout with mousseur and stop limiter
adjustable swivel area 0° / 150° / 360°
pop-up waste set 1 1/4"
pressure-proof, flexible connection hoses
between spout and side valves
knobs with metal inlay
can be combined with 48 460 000 or 48 461 000
Style
Contemporary
Installation Type
Deck mounted
Height (mm)
105.0
Length (mm)
465.0
Width (mm)
190.0
Net Weight (kg)
3.09
Gross Weight (kg)
3.09
Colors & Finishes
Supersteel
Collection
Atrio Private Collection
Segment
G5
Features & Technologies
GROHE SilkMove
Separated inner water ways
Swivel Range 140
Installation From Above
Product Recommendation

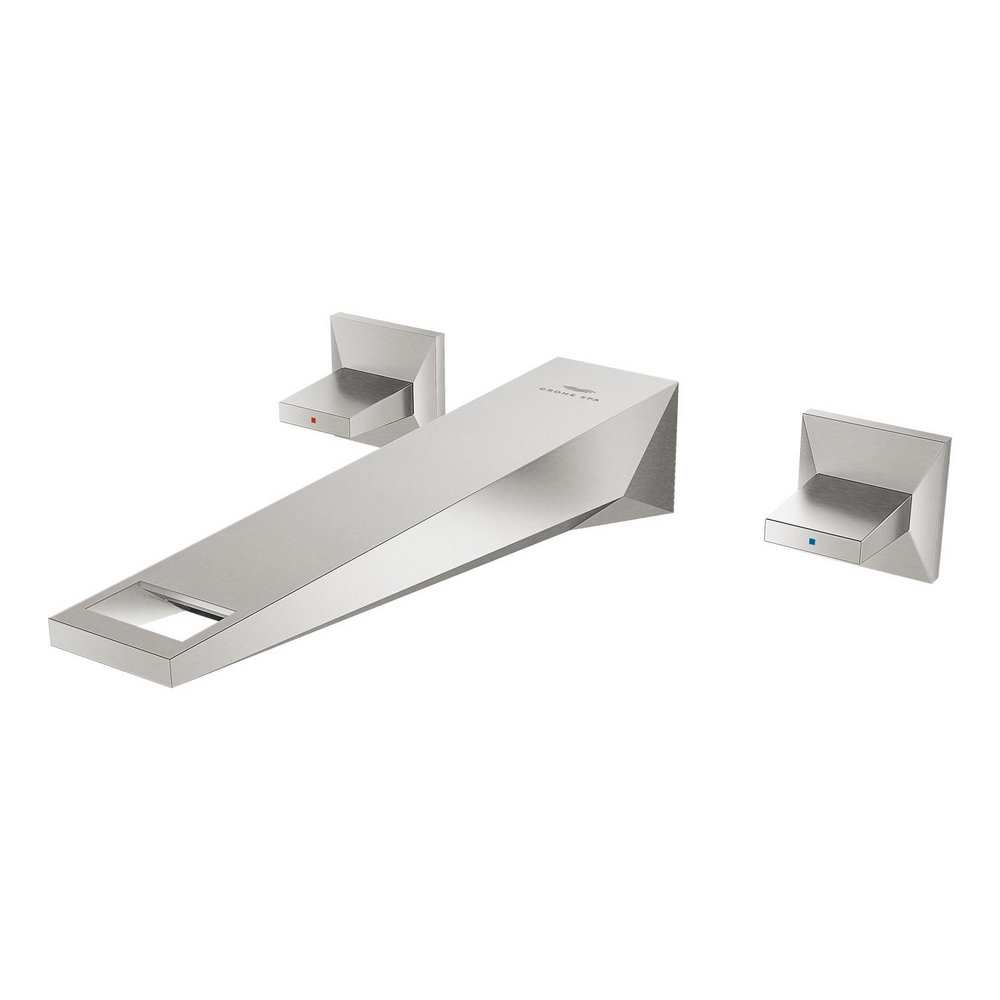

Three-hole basin mixer 1/2" L-Size
