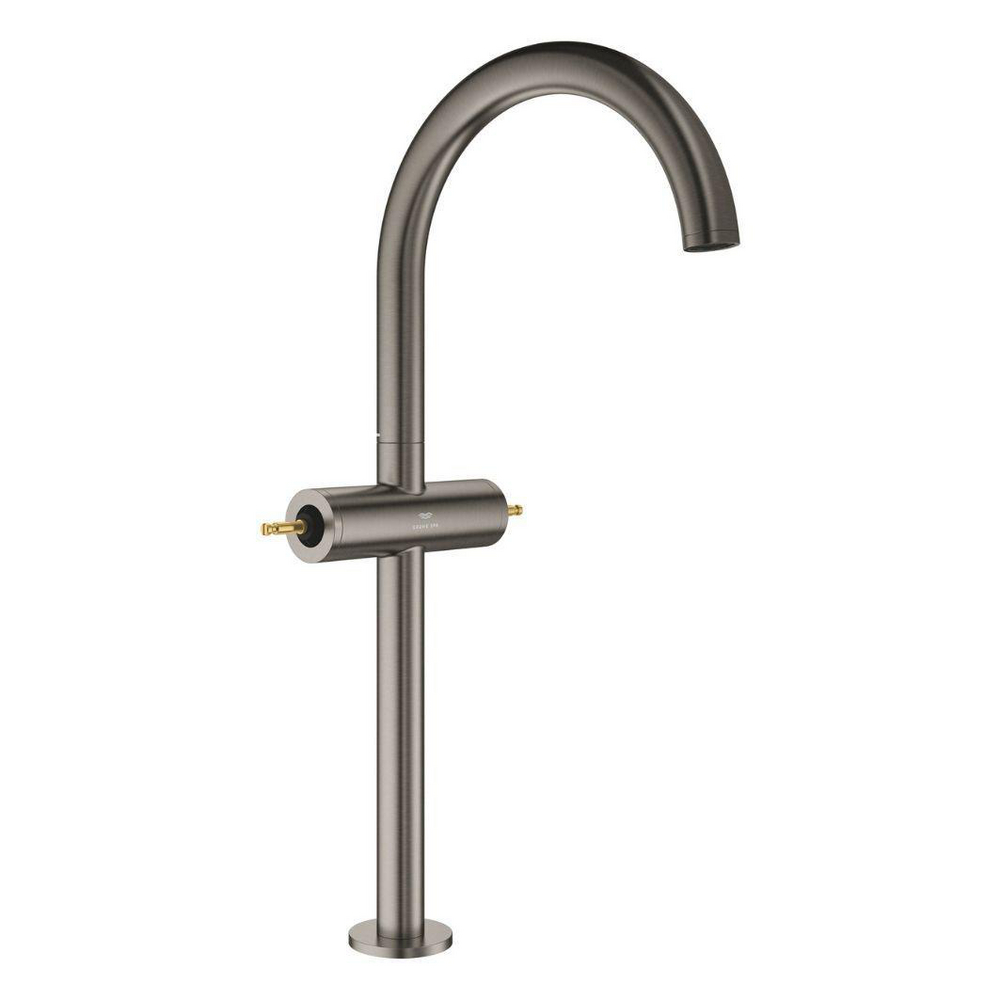

One-hole basin mixer, 1/2" XL-Size
Model: 21140AL0
Atrio Private Collection

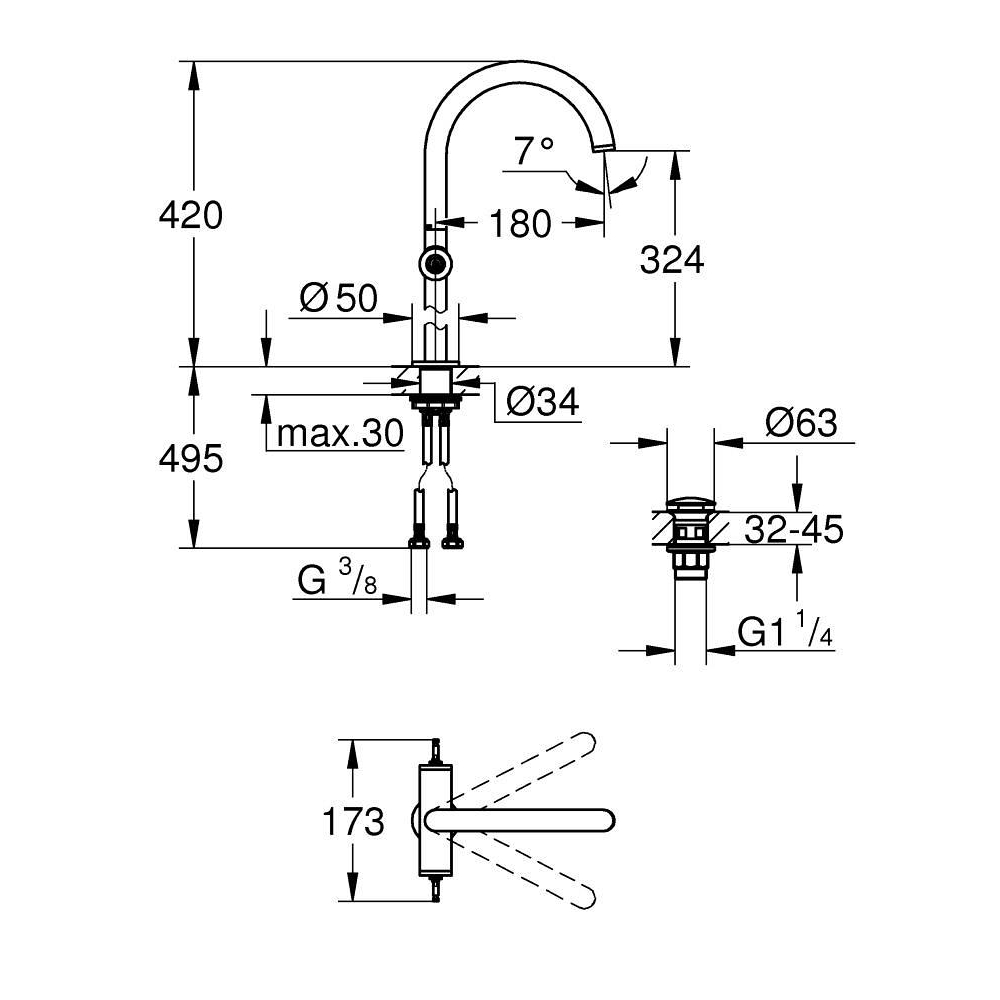

Dimensional Drawing
Technical Details
Product Description
for free-standing basins
ceramic headparts 1/2", 90°
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
rapid installation system
swivel tubular spout with mousseur and stop limiter
adjustable swivel area 0° / 150° / 360°
Push-open waste set 1 1/4"
flexible connection hoses
for stick handles
to be combined with stick sets 48 458, 48 459 or 48 646, please order separately
Style
Contemporary
Installation Type
Deck mounted
Height (mm)
120.0
Length (mm)
580.0
Width (mm)
195.0
Net Weight (kg)
3.08
Gross Weight (kg)
3.08
Colors & Finishes
Brushed hard graphite
Collection
Atrio Private Collection
Segment
G5
Features & Technologies
WaterResistant (GROHE Sense)
AquaBlock
Detects Drop Leakages
Works with Nest
