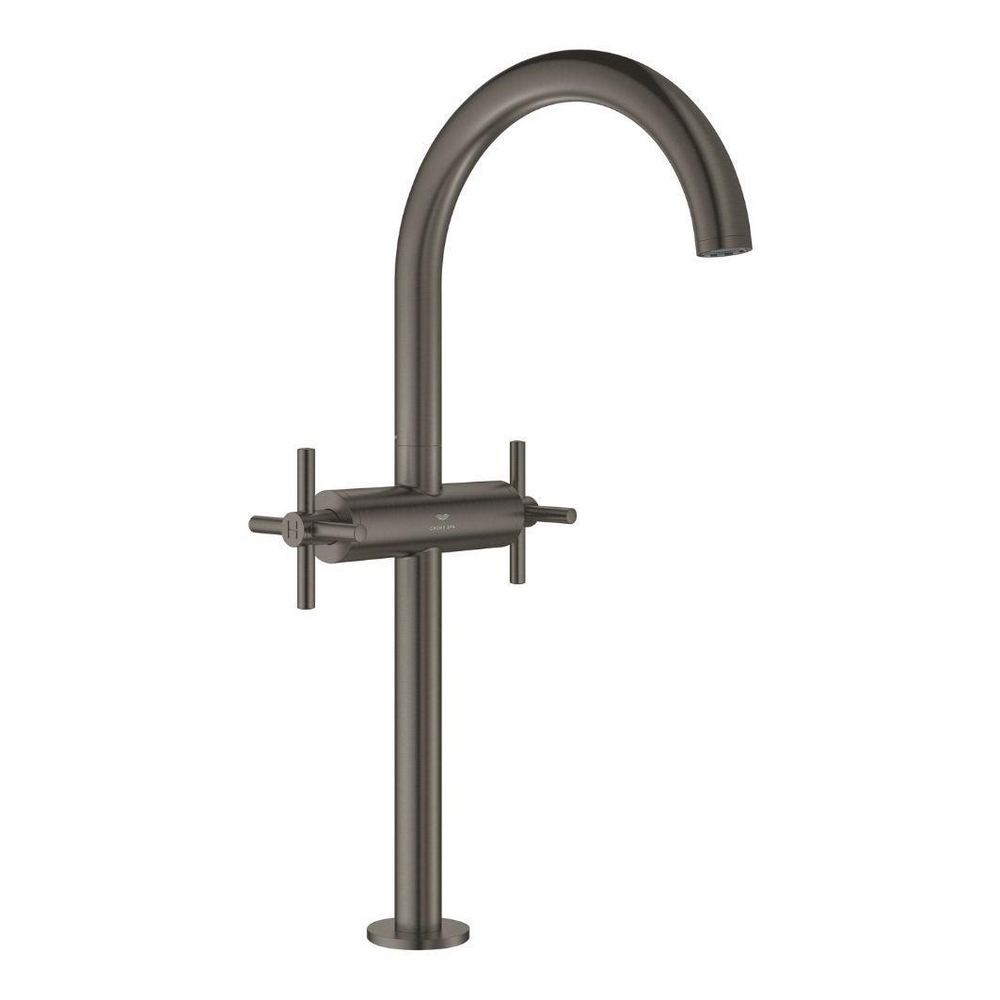

One-hole basin mixer, 1/2" XL-Size
Model: 21149AL0
Atrio New Classic

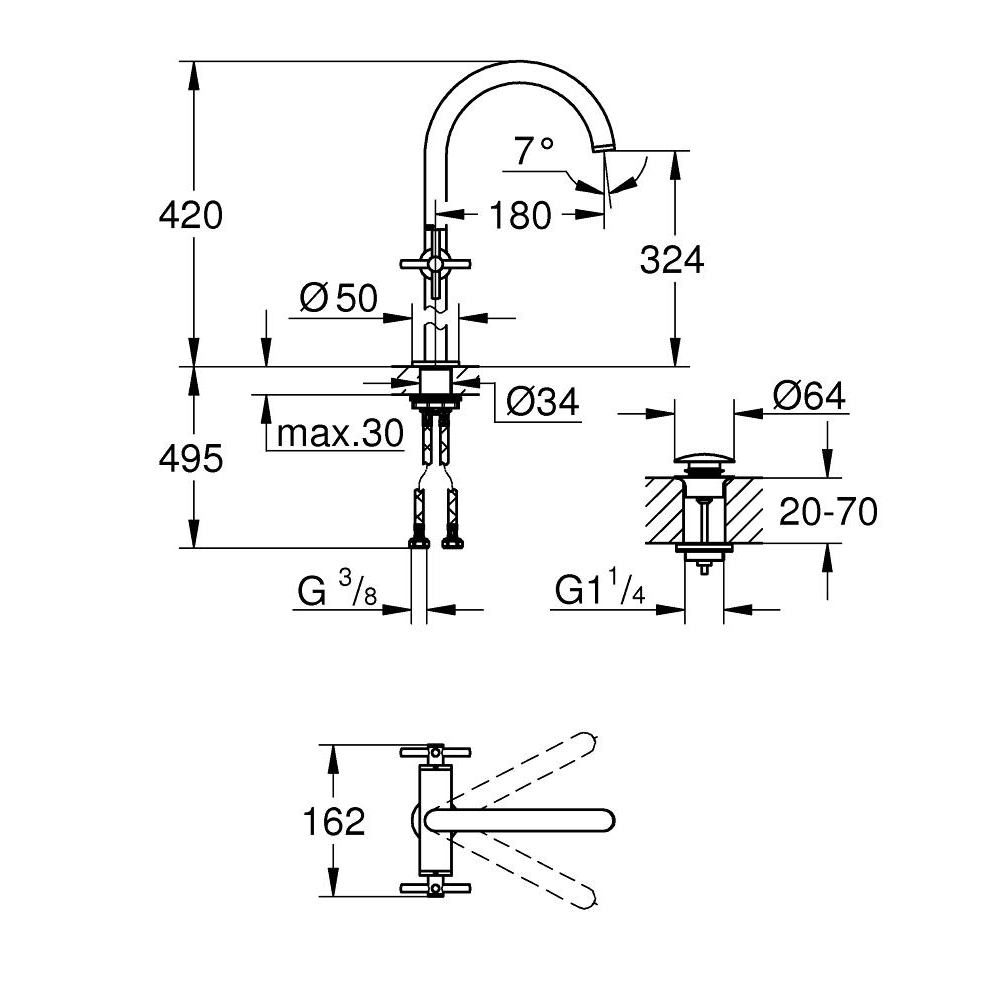

Dimensional Drawing
Technical Details
Product Description
for free-standing basins
ceramic headparts 1/2", 90°
GROHE LongLife finish
GROHE EcoJoy - less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
rapid installation system
swivel tubular spout with mousseur and stop limiter
adjustable swivel area 0° / 150° / 360°
Push-open waste set 1 1/4"
flexible connection hoses
with cross handles
Two different sets of caps included. One set with
"H" and "C" marking, one set without marking.
Style
Contemporary
Installation Type
Deck mounted
Height (mm)
125.0
Length (mm)
585.0
Width (mm)
195.0
Net Weight (kg)
3.205
Gross Weight (kg)
3.205
Colors & Finishes
Brushed hard graphite
Collection
Atrio New Classic
Segment
G5
