GROHE QuickFix (wallmounted)
Product Catalog
Single-lever mixer with 2-way diverter
Model: 24058GN1
Essence New

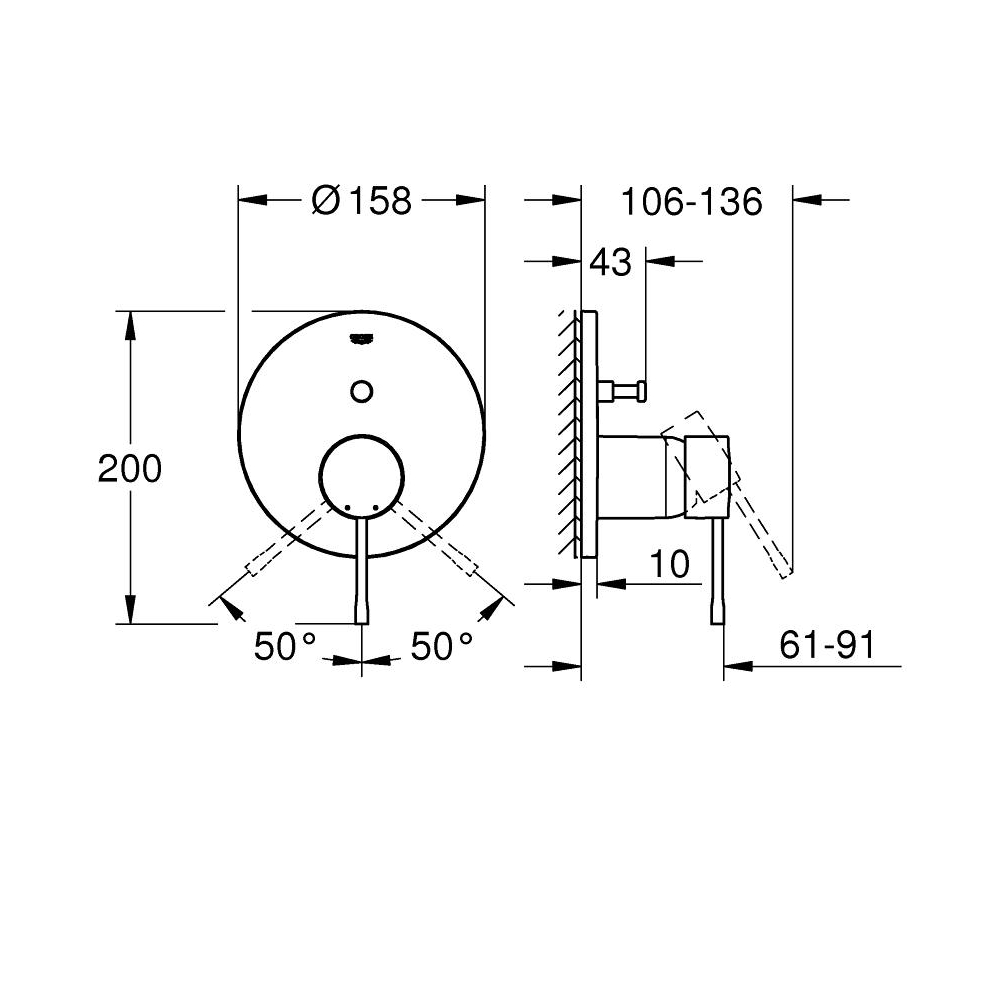

Dimensional Drawing
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
GROHE SilkMove 46 mm ceramic cartridge
GROHE LongLife finish
wall escutcheon with GROHE FastFixation
(covered escutcheon- and shaft sealing, covered fixing)
metal escutcheon, retroactively 6° adjustable
metal lever
automatic 2-way diverter
without roughing-in set 35 600/35 604 (please order separately)
flow performance:
outlet B = 27 l/min, outlet C = 27 l/min
Style
Cosmopolitan
Installation Type
Wall mounted concealed
Height (mm)
243.0
Length (mm)
200.0
Width (mm)
180.0
Net Weight (kg)
1.715
Gross Weight (kg)
1.715
Colors & Finishes
Brushed cool sunrise
Collection
Essence New
Segment
G4
Features & Technologies
GROHE StarLight (non-chrome)
GROHE SilkMove
