Single-lever bath mixer 1/2" floor mounted
Model: 25222GN1
Product Catalog
Single-lever bath mixer 1/2" floor mounted
Model: 25222DL1
Allure New

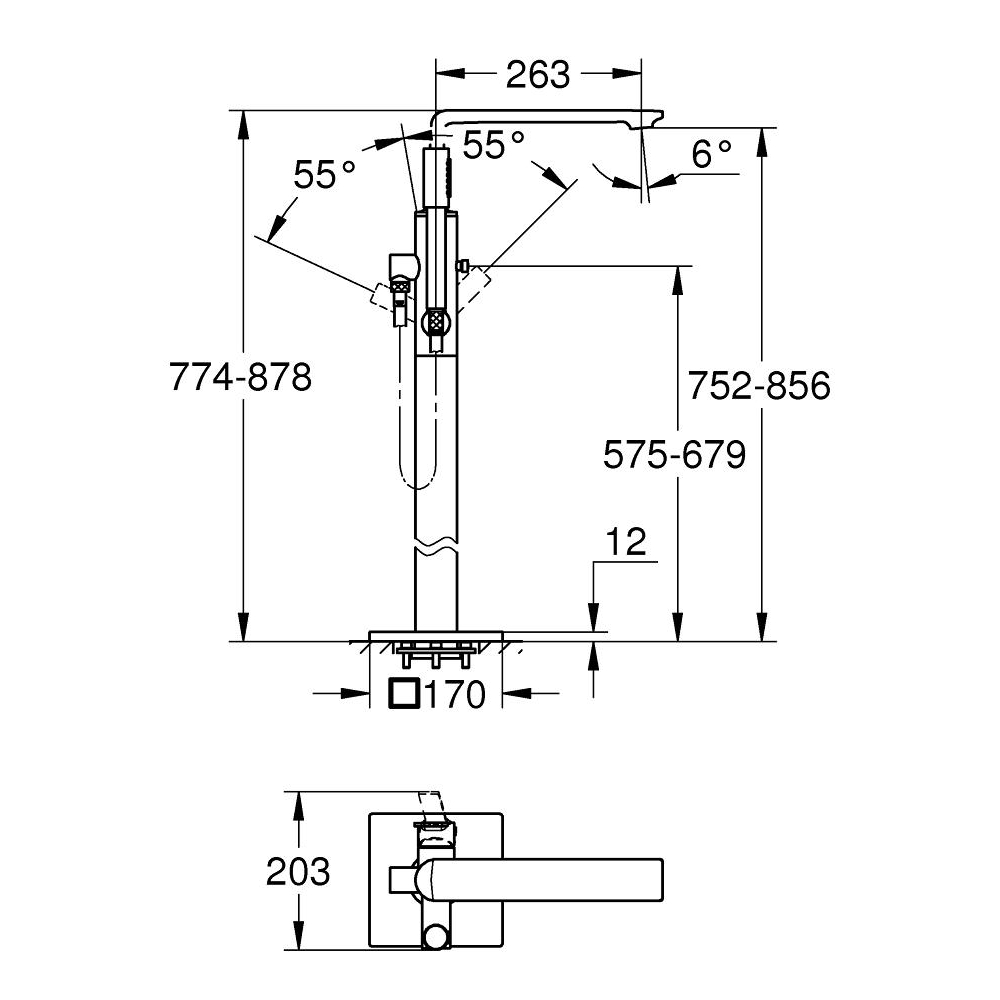

Dimensional Drawing
Technical Details
Product Description
• set for final installation for 45 984 001
• without roughing-in-set
• GROHE SilkMove 35 mm ceramic cartridge
• GROHE Long-Life finish
• automatic diverter: bath/shower
• spout with mousseur
• projection 263 mm
• integrated non-return valve in the shower outlet 1/2"
• with shower holder
• Rainshower Aqua hand shower 6.6 l/min
• shower hose 1250 mm
• protected against backflow
Collection
Allure New
Segment
G5
