Head shower 3 sprays
Model: 26887000
Rainshower AQUA

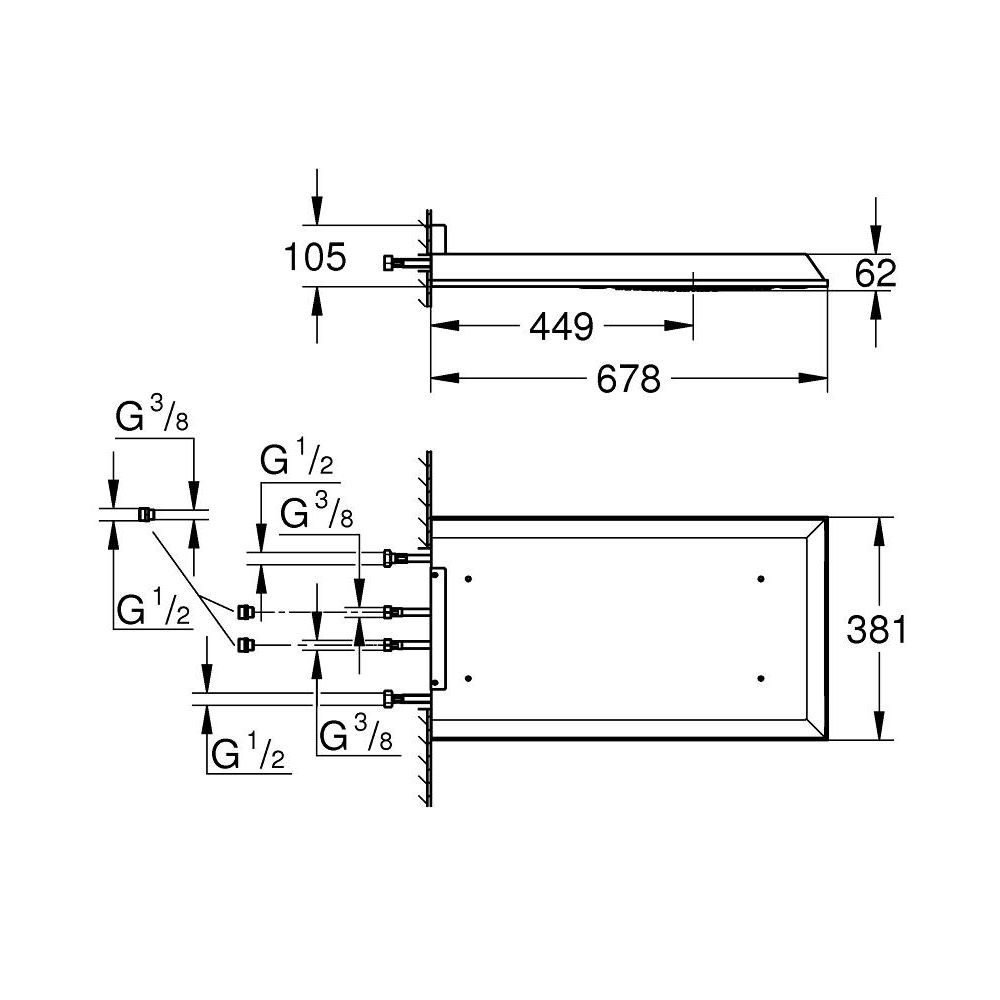

Dimensional Drawing
Technical Details
Product Description
spray patterns: Rain, Bokoma Spray, Waterfall and combinations
381 mm (width) x 62 mm (height) x 678 mm (depth)
material: metal
GROHE DreamSpray - perfect spray pattern
GROHE LongLife finish
GROHE XL Waterfall extra wide waterfall spray
GROHE SpeedClean - effortless limescale removal
flow of single spray at 3 bar:
1 x Rain spray 300 mm: ca. 20 l/min
2 x XL Waterfall: 1 Waterfall: 20 l, 2 Waterfall: 32 l/min
4 x Bokoma Spray with adjustment angle 20°: 20 l/min
requires rough-in set (26 855 000) - to be ordered separately
head shower has to be controlled by 4 outlets
the ceiling shower has to be controlled by 3 or 4 outlets + 1 hand shower outlet and the performance of the waste must be of sufficient size (more than 53 l/min)
Style
Cosmopolitan
Installation Type
Wall mounted exposed
Height (mm)
250.0
Length (mm)
750.0
Width (mm)
465.0
Net Weight (kg)
19.7
Gross Weight (kg)
19.7
Colors & Finishes
Chrome
Collection
Rainshower AQUA
Segment
G5
