Product Catalog

Toilets That Provide Cleanliness and Comfort

Signature One Piece Toilet 4.8lpf

Model: CCAS1882-111A410T0

Signature

Product Specification

CAD File

Dimensional Drawing

Installation Manual

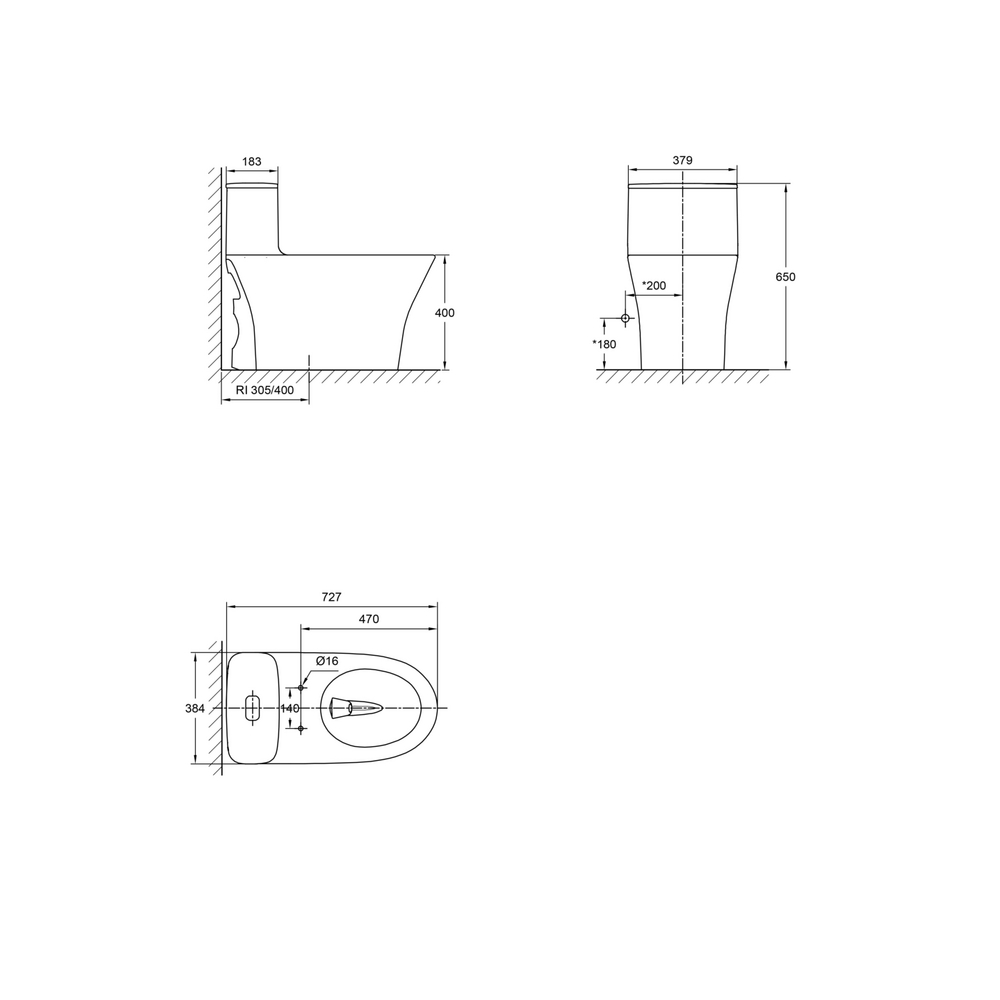

Dimensional Drawing

Technical Details

Style

Modern

Installation Type

Floor Standing

Shape

Elongated

Flush Volume

4.8

Flushing Type

Side Lever

Flushing System

SiphonMax

Rough In (mm)

305

Trapway

S Trap

Height (mm)

668

Length (mm)

738

Width (mm)

452

Net Weight (kg)

Gross Weight (kg)

Colors & Finishes

White Heat II

Collection

Signature

Segment

Mass

Features & Technologies

Aqua Ceramic

ComfortClean

CrystaSleek

Power Rim

SiphonMax
