Single-lever basin mixer 1/2" S-Size
Model: 23589GL1
Essence New

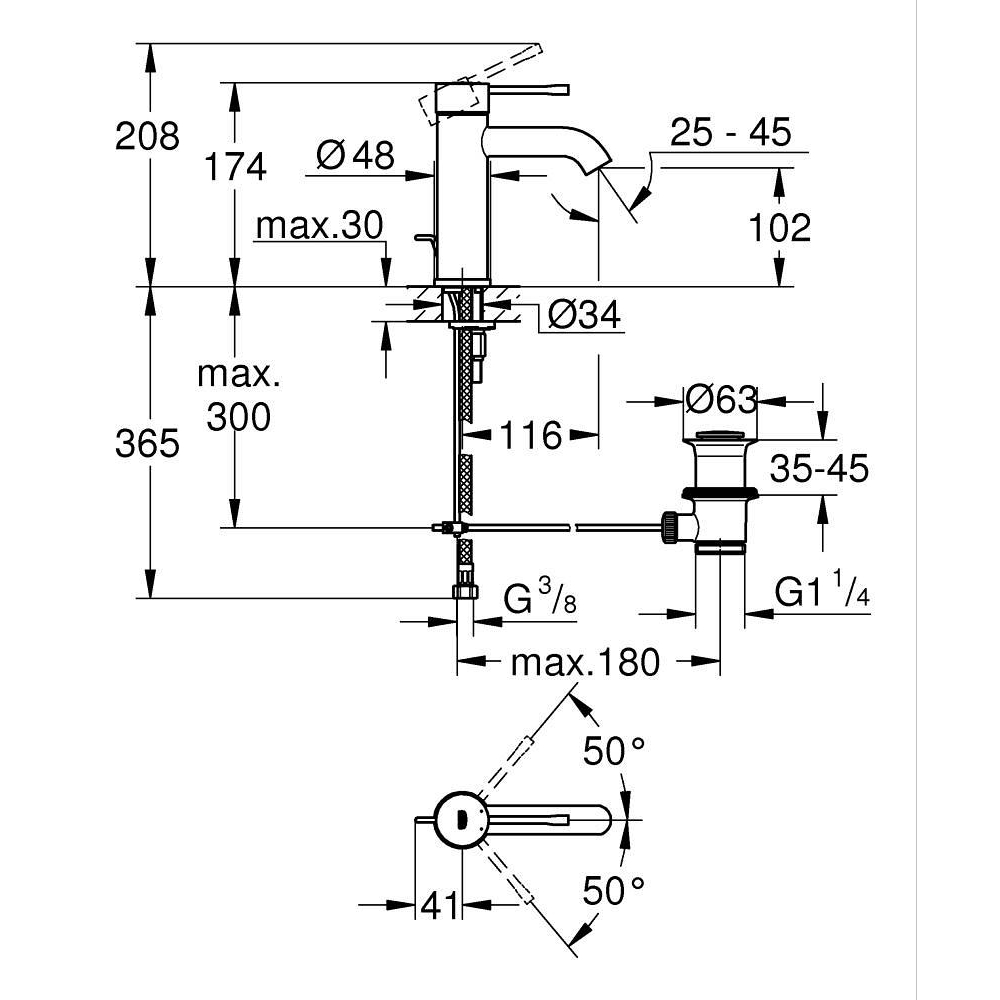

Dimensional Drawing
Technical Details
Product Description
monobloc installation
metal lever
28 mm ceramic cartridge
with GROHE SilkMove
with temperature limiter
GROHE LongLife finish
mousseur 5.7 l/min
GROHE AquaGuide adjustable mousseur
GROHE FastFixation Plus installation system
pop-up waste set 1 1/4"
flexible connection hoses
Style
Cosmopolitan
Installation Type
Deck mounted
Height (mm)
70.002
Length (mm)
375.006
Width (mm)
189.992
Net Weight (kg)
1.595
Gross Weight (kg)
1.595
Colors & Finishes
Cool sunrise
Collection
Essence New
Segment
G4
Features & Technologies
GROHE EcoJoy
GROHE StarLight (non-chrome)
GROHE SilkMove
Pop-up Waste
