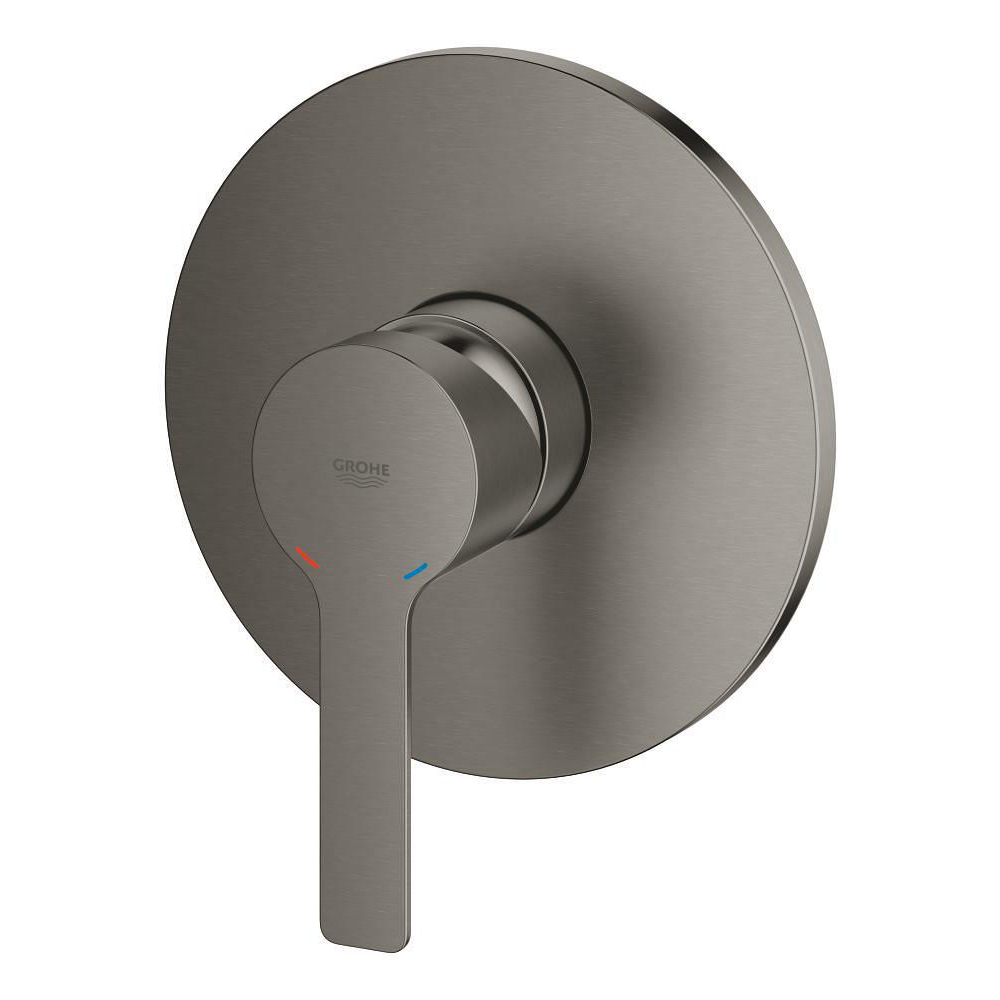

Single-lever shower mixer
Model: 24063AL1
Lineare New

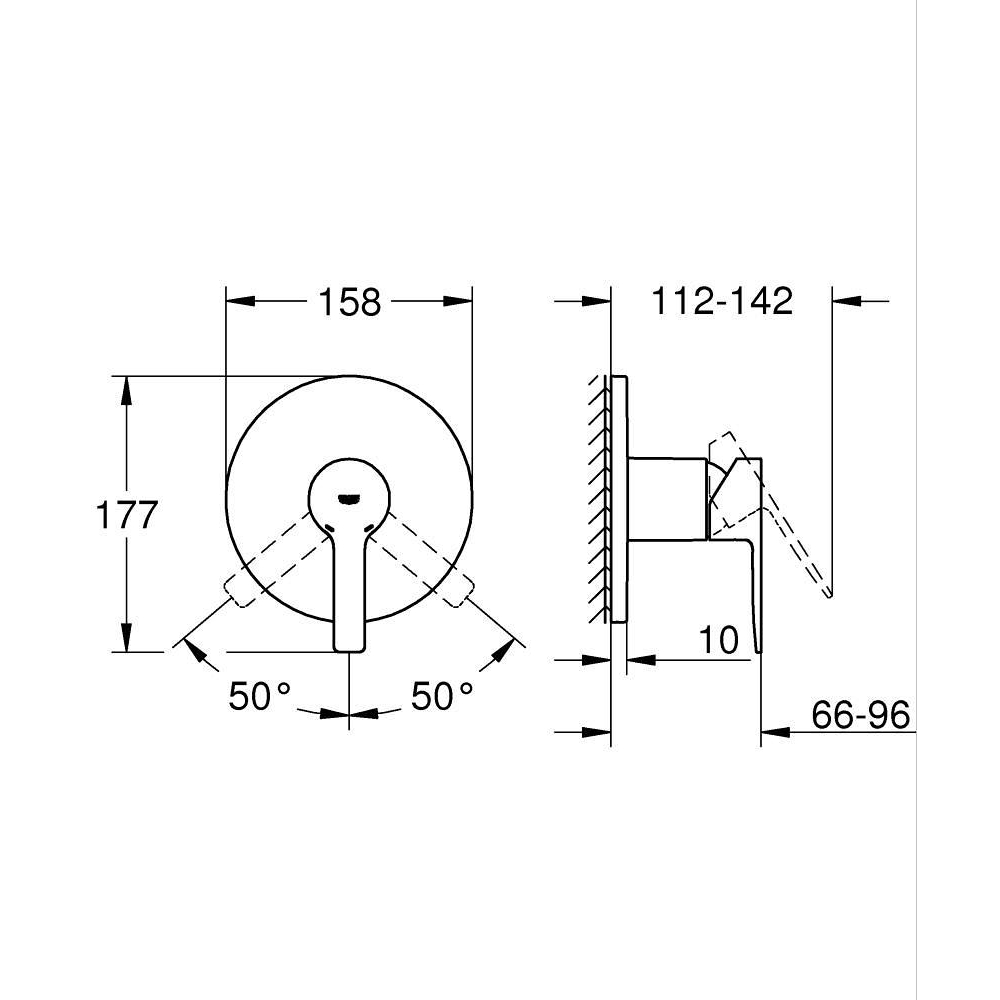

Dimensional Drawing
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
GROHE SilkMove 46 mm ceramic cartridge
GROHE LongLife finish
wall escutcheon with GROHE FastFixation
(covered escutcheon- and shaft sealing, covered fixing)
metal escutcheon, retroactively 6° adjustable
metal lever
without roughing-in set 35 600/35 604 (please order separately)
flow performance:
outlet B or C = 30 l/min
Style
Cosmopolitan
Installation Type
Wall mounted concealed
Height (mm)
180.0
Length (mm)
250.0
Width (mm)
200.0
Net Weight (kg)
1.52
Gross Weight (kg)
1.52
Colors & Finishes
Brushed hard graphite
Collection
Lineare New
Segment
G4
Features & Technologies
GROHE StarLight (non-chrome)
GROHE SilkMove
